Product Description

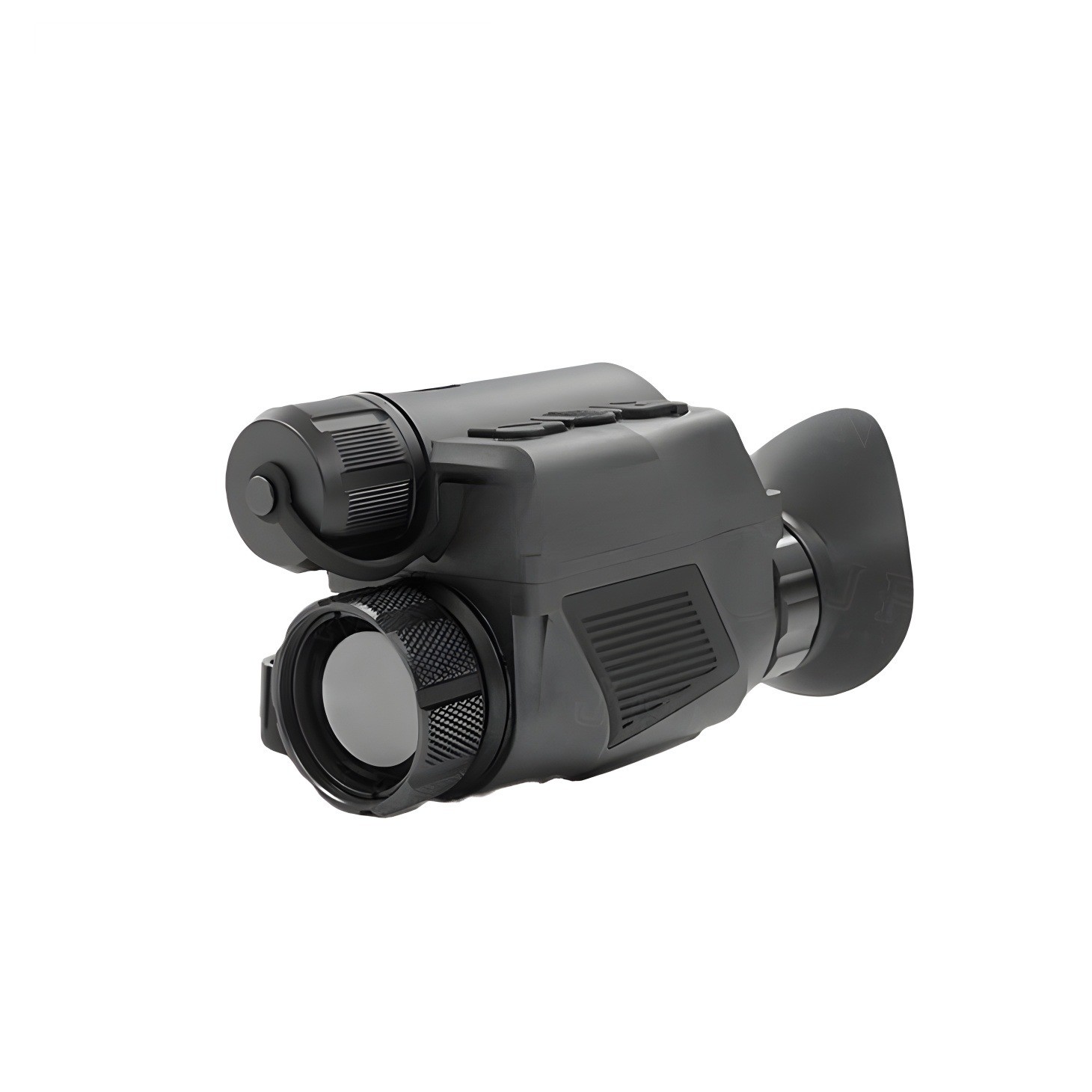

UND-YM Monocular Thermal Imaging Device
Professional Thermal Imaging Solution
The UND-YM Monocular Thermal Imaging Device is a state-of-the-art professional tool designed for operation in harsh weather conditions and complex scenarios. Featuring advanced 12μm 384×288 or 640×512 detectors, it delivers clear observations and target identification in complete darkness.
Key Applications
- Outdoor search and rescue operations
- Fire and security surveillance
- Hunting and wildlife observation
- Industrial inspections (oil/gas, power lines)
- Military and law enforcement operations
Core Features
- Compact and lightweight design (≤228g) for maximum portability
- Low power consumption with extended battery life (>6 hours)
- Multiple mounting options (handheld or head-mounted)
- IP67-rated encapsulation for rugged environments
- Advanced display with multiple viewing modes and color palettes
- Wi-Fi connectivity and data recording capabilities
Technical Specifications
| Parameter | UND-YM 384 | UND-YM 640 |
|---|---|---|
| Thermal Resolution | 384×288 | 640×512 |
| Pixel Pitch | 12μm | |
| Frame Rate | 50Hz | |
| Display (OLED) | 1024×768 | |
| Focal Length | 16mm | 26.7mm |
| Field of View | 16.3°×12.3° | |
| Identification Distance (human) | 370m | 620m |
| Detection Distance (human) | 700m | 1200m |
| Weight (without battery) | ≤218g | ≤228g |
| Dimensions | 110×48×72 mm | |
| Operating Temperature | -20℃ to 50℃ | |
Included Accessories
- USB 2.0 & BNC cables
- Helmet mounting support
- Carrying bag
- User manual
- Cleaning cloth
The UND-YM Monocular Thermal Imaging Device combines high-performance thermal imaging with exceptional portability and durability. Its advanced detection capabilities, extended battery life, and rugged construction make it an essential tool for professional operations in challenging environments.
