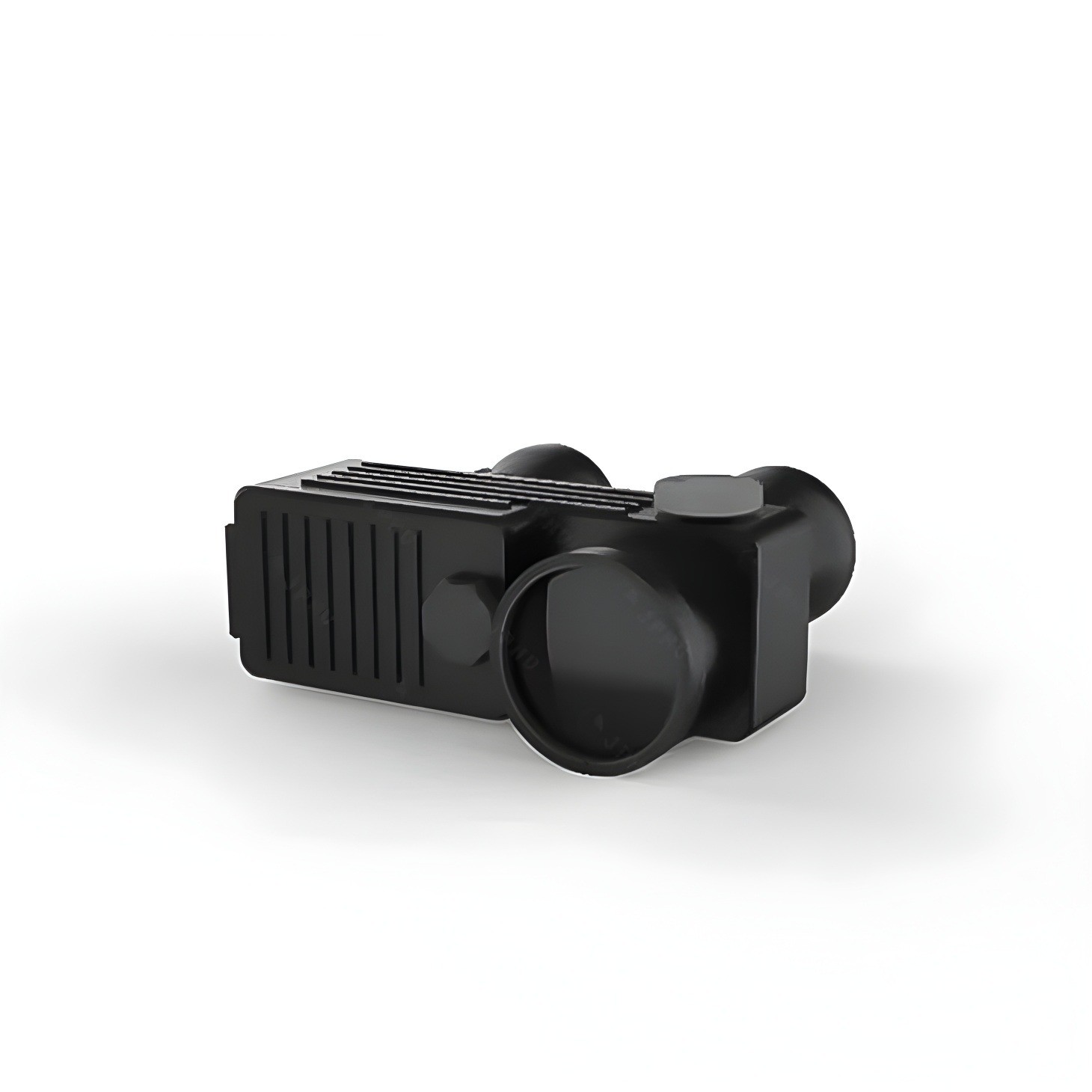

UND-TH-P4 Portable Thermal Imager
Key Features
- 12μm high-sensitivity detector
- Continuous working time of 4.5 hours
- High-resolution 1024×768 display
- Superior cost-performance ratio
Product Overview
The TH-P4 Portable Thermal Imager is a state-of-the-art handheld infrared thermal imaging device offering exceptional performance in a compact, lightweight package. Equipped with an uncooled vanadium oxide detector, it delivers highly accurate and detailed thermal imaging.
The device features a high-resolution 1024×768 pixel display for exceptional image clarity, making it ideal for surveillance, search and rescue operations. With detection ranges up to 1200 meters and recognition capability to 800 meters, it excels in large-scale outdoor environments.
The 12μm pixel size and ≤35mK NETD sensitivity enable precise temperature differentiation. Designed for extreme conditions, it operates reliably from -40℃ to +55℃ in all weather conditions including rain, snow, and fog.
Technical Specifications
| Detector | |
|---|---|
| Type | Uncooled VOx detector |
| Wavelength Band | 8~12μm |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Sensitivity (NETD) | ≤35mK@300K |
| Optics | |
| Lens System | F#1.0 35mm |
| Focus Mode | Manual |
| Detection Distance | 1200m (detect) / 800m (distinguish) |
| Display | |
| Type | OLED@1024×768 |
| Diopter Control | -4~+3 |
| System | |
| Working Hours | ≥4.5h |
| Working Temperature | -40℃~+55℃ |
| Storage Temperature | -45℃~+60℃ |
