UND-TB-375 High Performance Thermal Imaging Binocular
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 375 Thermal Imaging Binocular,High Performance Thermal Imaging Binocular |
||
|---|---|---|---|
Product Description

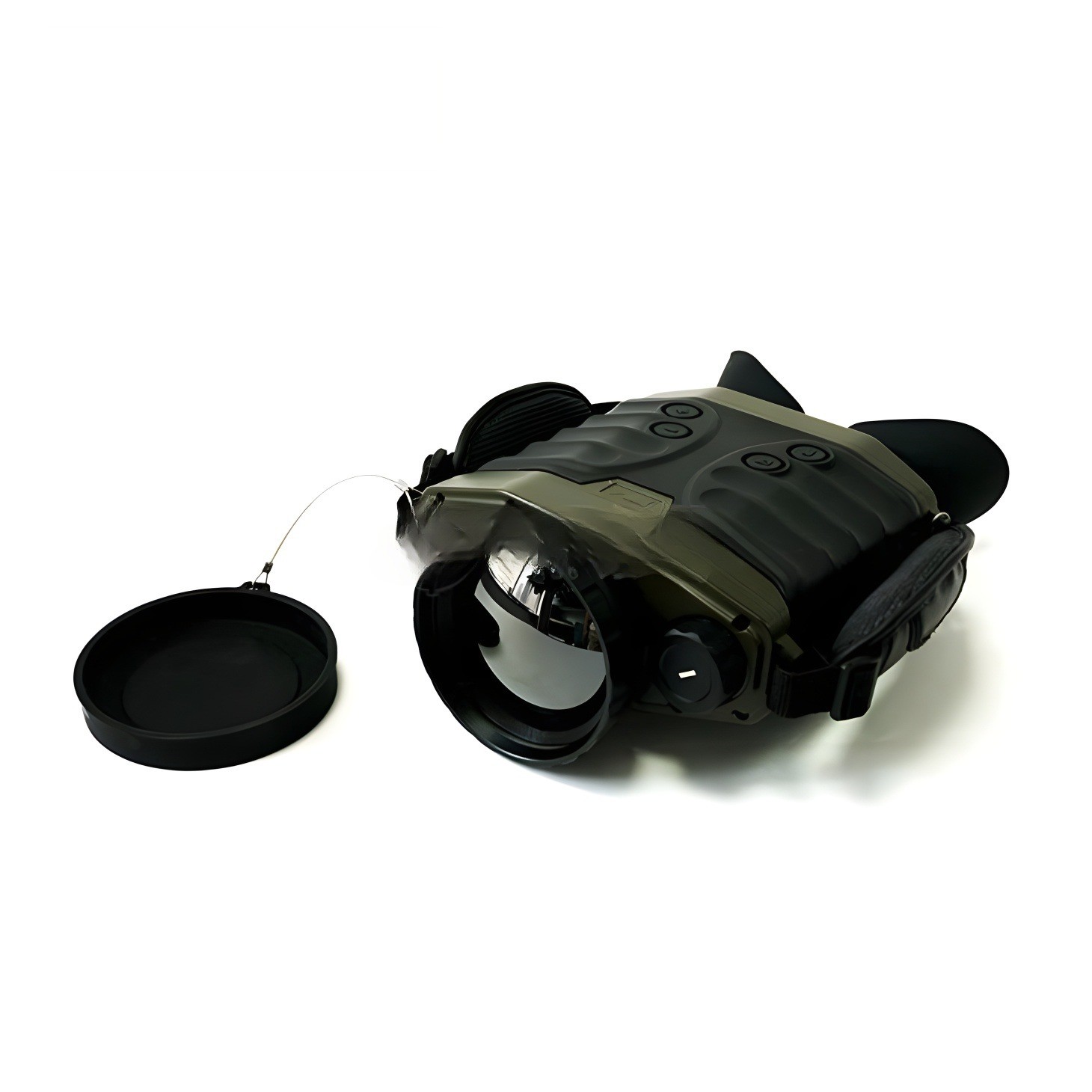

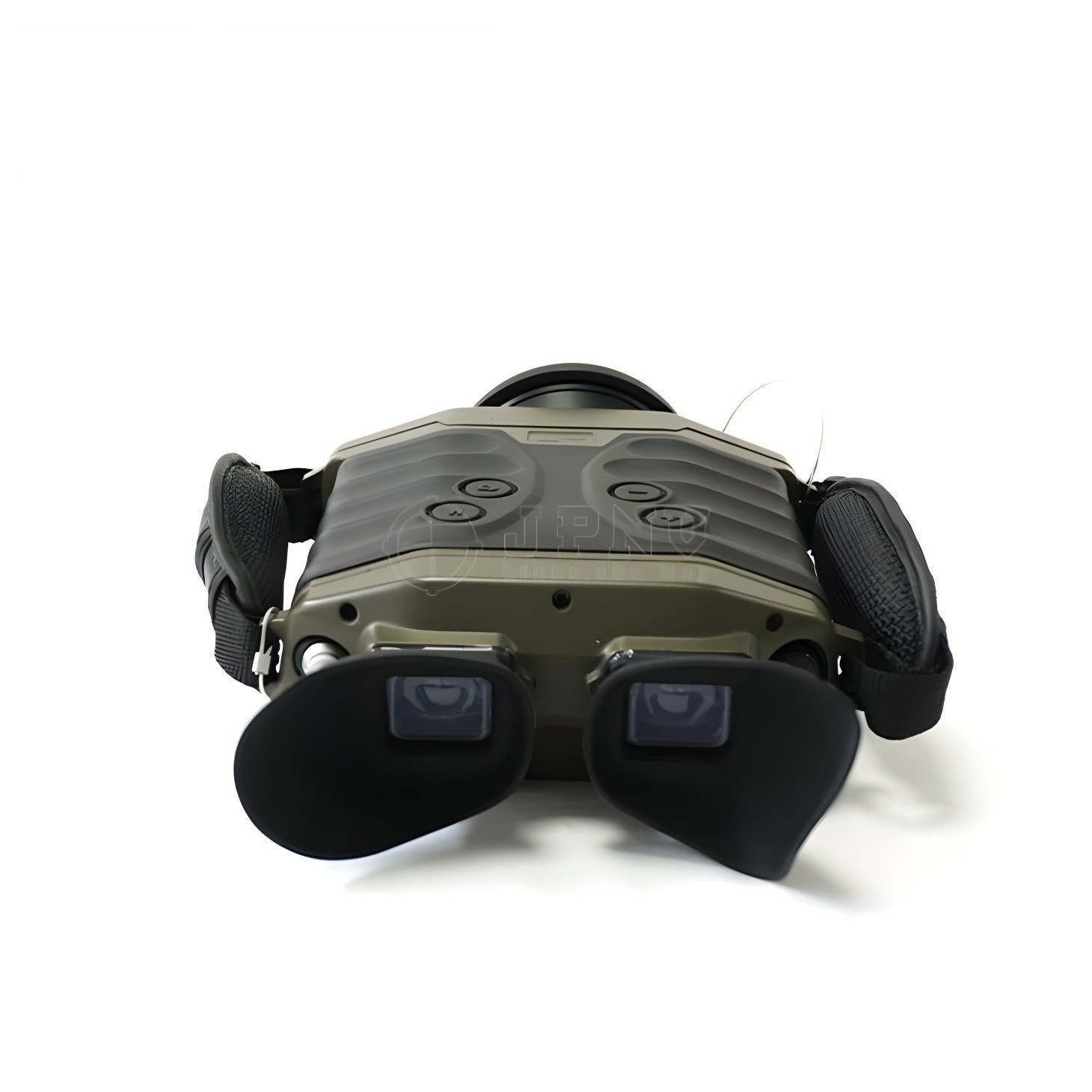

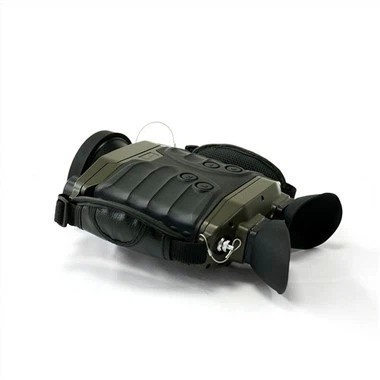

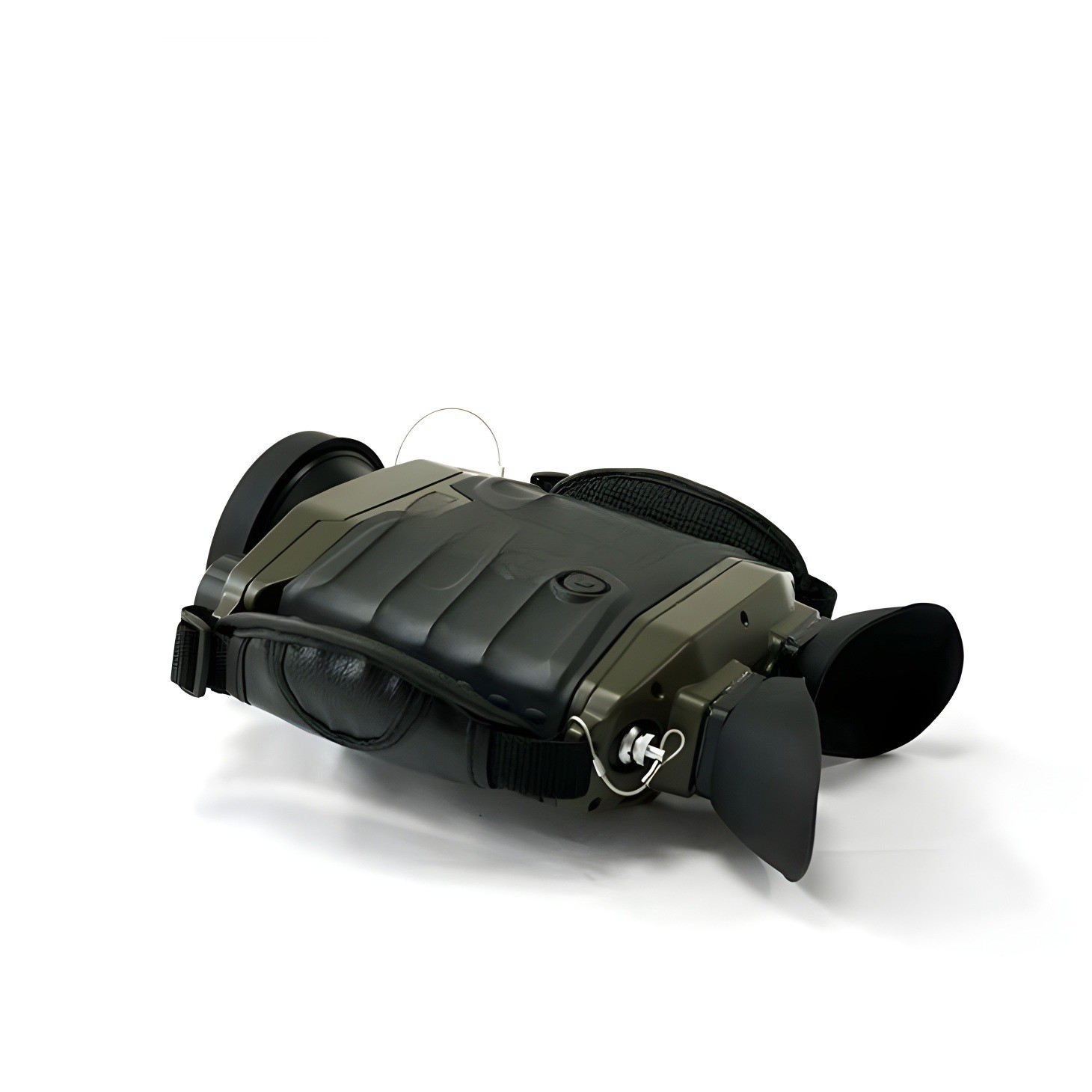

UND-TB-375 High Performance Thermal Imaging Binocular
Advanced Thermal Imaging Technology
The UND-TB-375 High Performance Thermal Imaging Binocular delivers exceptional imaging capabilities with its un-cooled Asi focal plane detector operating in the 8-14μm wavelength range. The 17μm pixel size ensures high-resolution thermal imaging, while the 50Hz frame rate provides smooth video capture.
Key Features
- 75mm standard lens with F/1.0 aperture for superior low-light performance
- 800×600 OLED display for crisp, clear visuals in all lighting conditions
- Customizable imaging settings including contrast, brightness, and color palettes
- Rugged construction designed to withstand harsh environmental conditions
- Ergonomic design for comfortable extended use
- USB storage and transfer capabilities for easy data management
- Intuitive interface with user-friendly controls
Technical Specifications
| Detector Type | Uncooled Asi focal plane (384×288, 640×480 optional) |
|---|---|
| Working Band | 8~14μm |
| Pixel Size | 17μm |
| Frame Frequency | 50Hz |
| Electronic Magnification | 2X |
| Display | 800×600 OLED |
| Battery | 2×TF25500 lithium charge, 3.7v / 3000mah (>6h continuous use) |
| Power Consumption | <2.0w (25℃), 3.8w during video recording |
| Storage | Built-in 8G card with USB interface output |
| Weight | 1.35kg (excluding battery), 3.5kg with case |
| Operating Temperature | -20℃ to +60℃ |
| Identification Distance | 2000m (person), 700m (objective) |
Professional Applications
This high-performance thermal imaging binocular is ideal for surveillance, search and rescue operations, wildlife observation, security monitoring, and various industrial applications where superior thermal imaging capabilities are required.
