UND-TH-Z5 Thermal Imaging Binoculars Five Optical Channels Multi-Function Binoculars
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Five Optical Channels Thermal Imaging Binoculars,UND-TH-Z5 Thermal Imaging Binoculars,Multi Function Thermal Imaging Binoculars |
||
|---|---|---|---|
Product Description

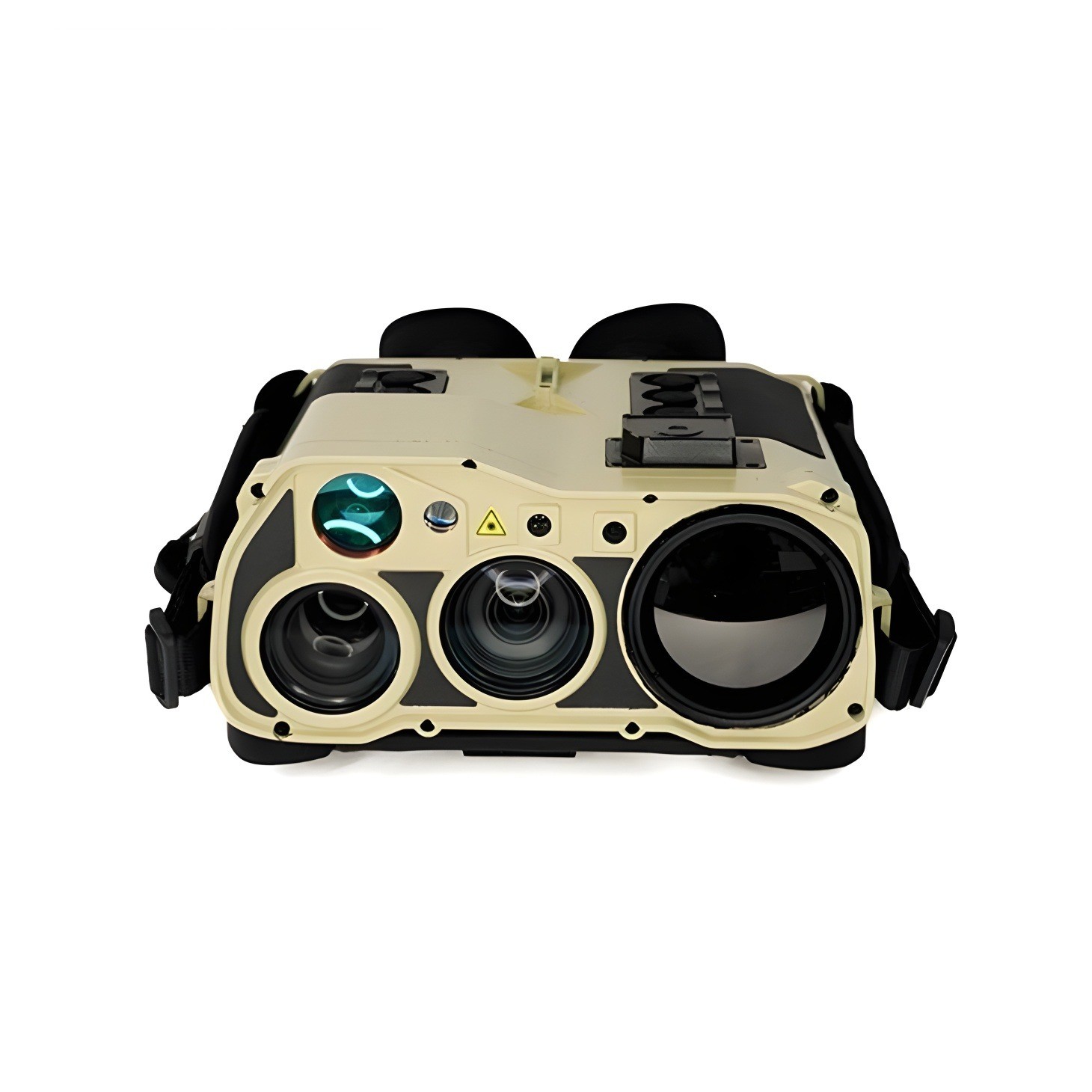

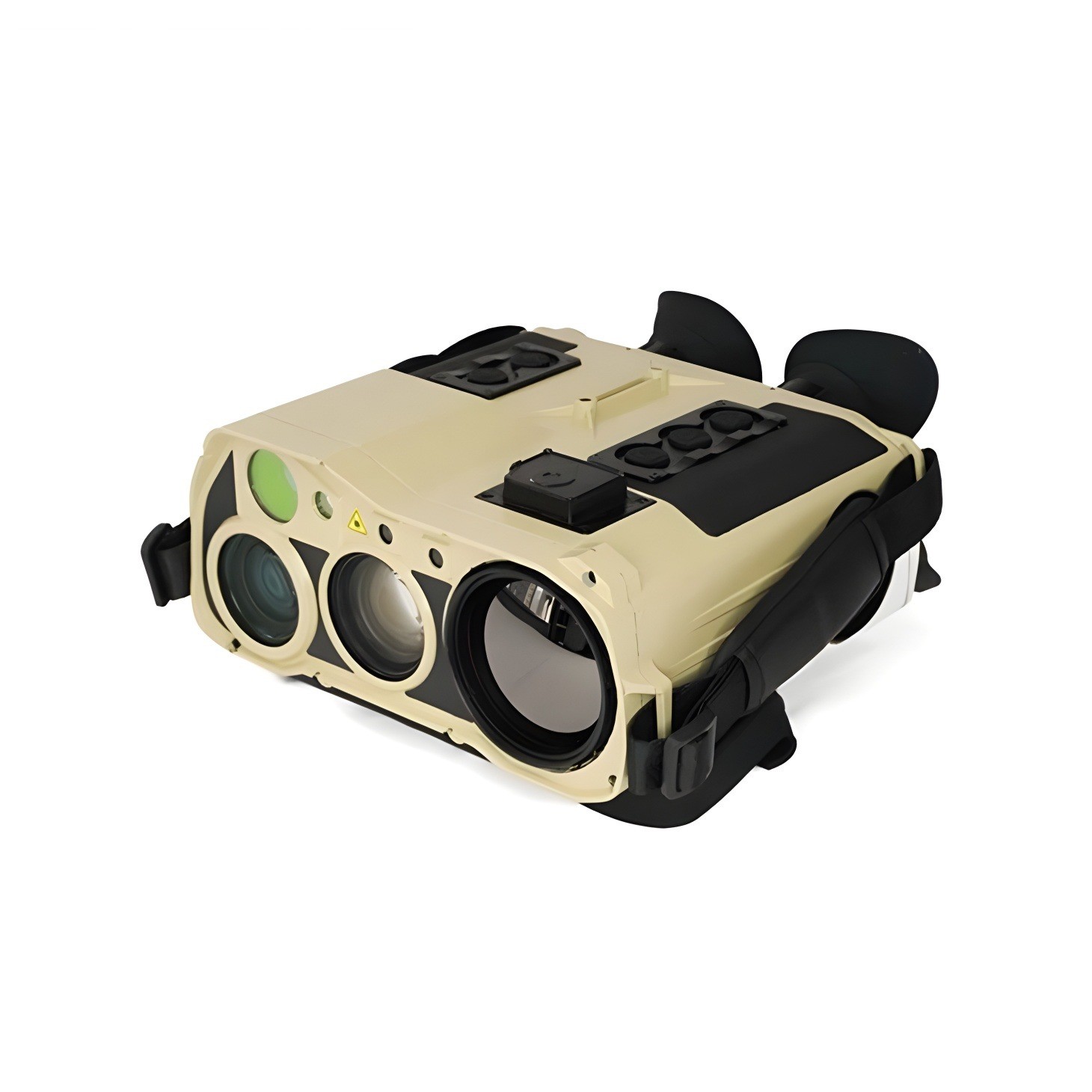

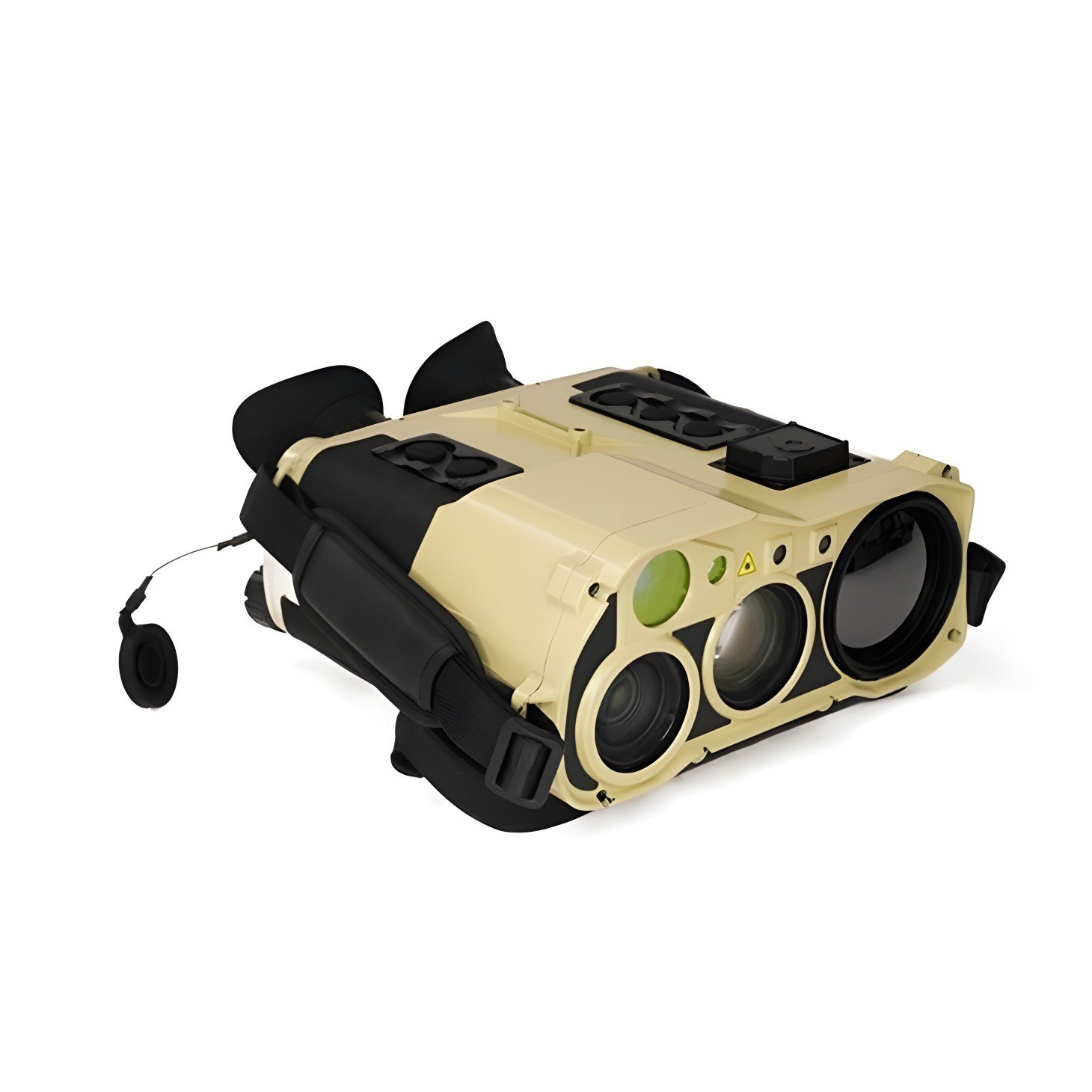

UND-TH-Z5 Thermal Imaging Binoculars - Five Optical Channels Multi-Function Binoculars
Five-Light Channel Multi-Function Binoculars
- 8-in-1 precision target reconnaissance positioning
- Multi-projectile trajectory calculation
- Fast and comfortable operation
- Interface function operation guide
- Ergonomic design
- Light weight
- Fast and stable performance
The TH-Z5 five-channel multifunctional binoculars represent the latest innovation in observation equipment, combining infrared, low-light, visible light, and laser technologies. This compact intelligent device features a composite positioning module, high-precision digital electronic compass, advanced laser ranging, and multi-sensor meteorological capabilities.
Key Features
Multi-Spectral Fusion: Enhances image quality, color contrast, and resolution by effectively fusing all available light sources for optimal viewing in any lighting condition.
Target Location & Tracking: Advanced laser ranging provides accurate distance calculations while the composite positioning module delivers precise directional information for surveillance operations.
Media Capture: Records high-quality still images and videos with an intuitive interface, featuring rich connectivity options for easy data transfer.
With an 8-hour battery life and operational range of -40℃ to +60℃, the TH-Z5 is built for demanding environments. Its 8-in-1 precision target detection includes GPS positioning, range, height, azimuth, angle, slope, wind speed, and temperature measurement.
Technical Specifications
| Imaging Modes | |
|---|---|
| Image Mode | Infrared thermal imaging, low light, full color visible light, infrared low light fusion (including highlight, edge, blending) |
| Visible Light | |
| Resolution | 1920×1080 |
| Field of View | 44°×34°(W)~2.4°×1.8°(T) |
| Working Illumination | ≥0.1Lx (black and white) ≥1.0Lx (Full color) |
| Thermal Imaging | |
| Resolution | 640x512 12μm |
| Pixel Spacing | 12μm |
| Field of View | 7.32°×5.86° |
| Low Light | |
| Resolution | 800 × 600 |
| Pixel Spacing | 8μm |
| Field of View | 7.32°× 5.86° |
| General Specifications | |
| Operating Time | 8h |
| Dimensions | 235mm×220mm×110 |
| Weight | 2.3kg (battery included) |
| Operating Temperature | -40℃~ +60℃ |
| Protection Standard | IP67 |
Performance Metrics
| Visible Light Observation Performance | |||
|---|---|---|---|
| Detection Range | Man: 12km | Vehicle: 13km | |
| Discovery Distance | Man: 8.5km | Vehicle: 11.5km | |
| Recognition Distance | Man: 4km | Vehicle: 6km | |
| Infrared/Low Light Observation Performance | |||
| Detection Range | Man: 5km | Vehicle: 7km | |
| Discovery Distance | Man: 2km | Vehicle: 3.5km | |
| Recognition Distance | Man: 1.2km | Vehicle: 2km | |
