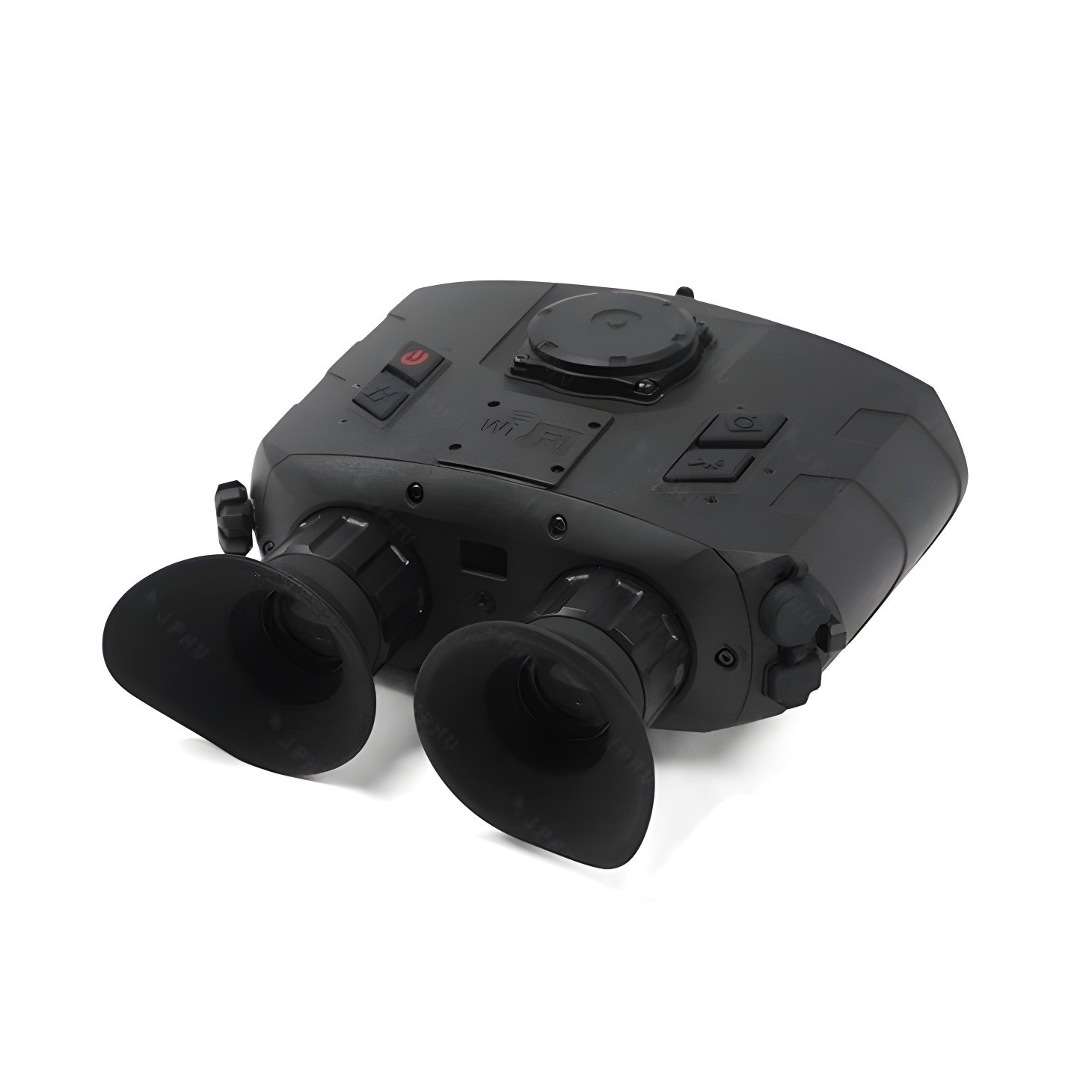

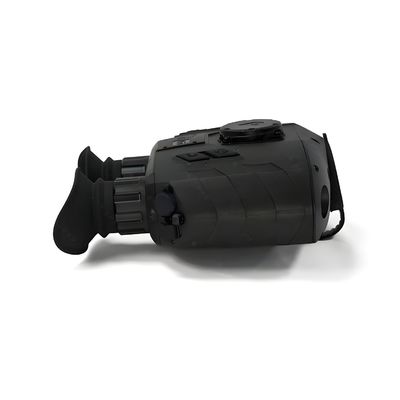

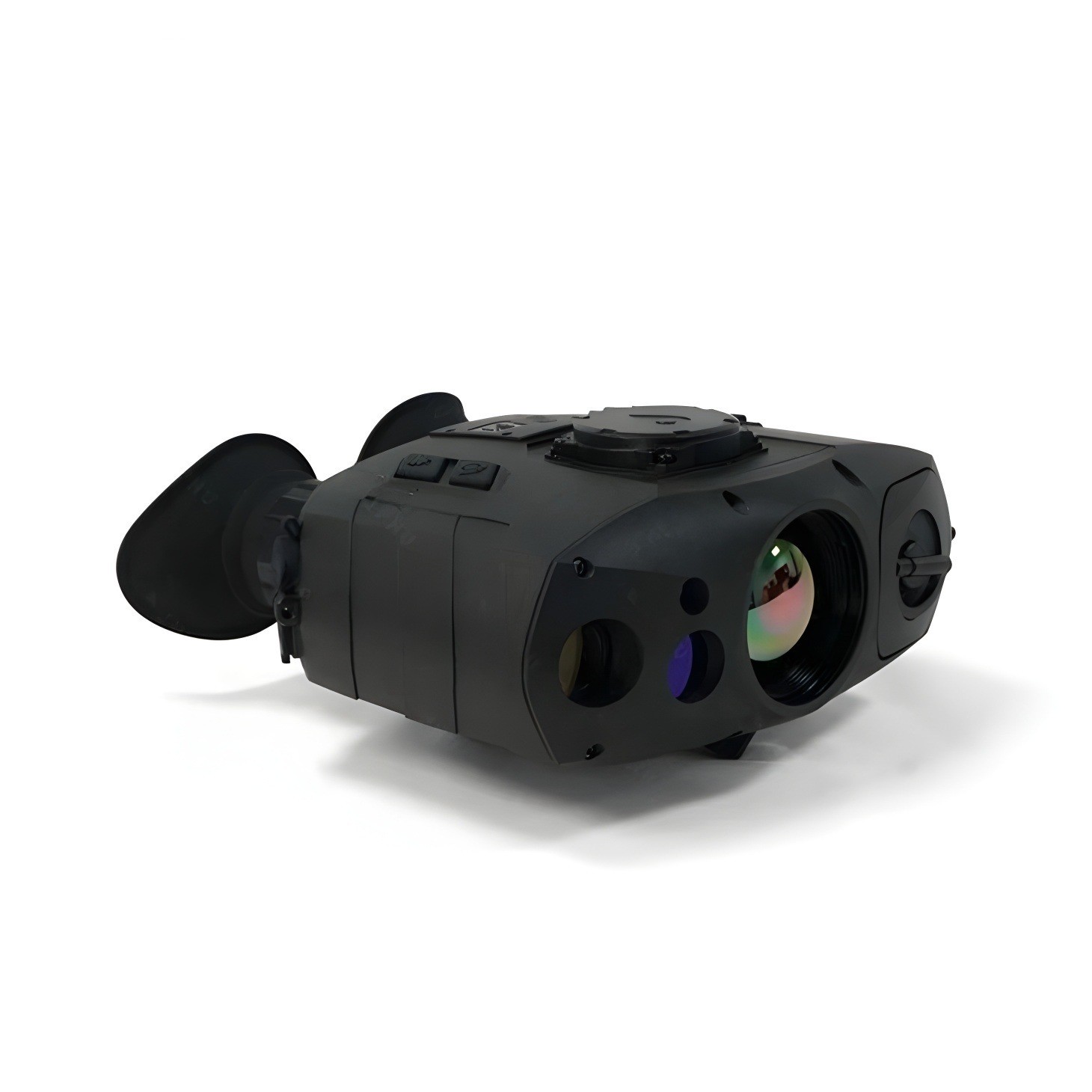

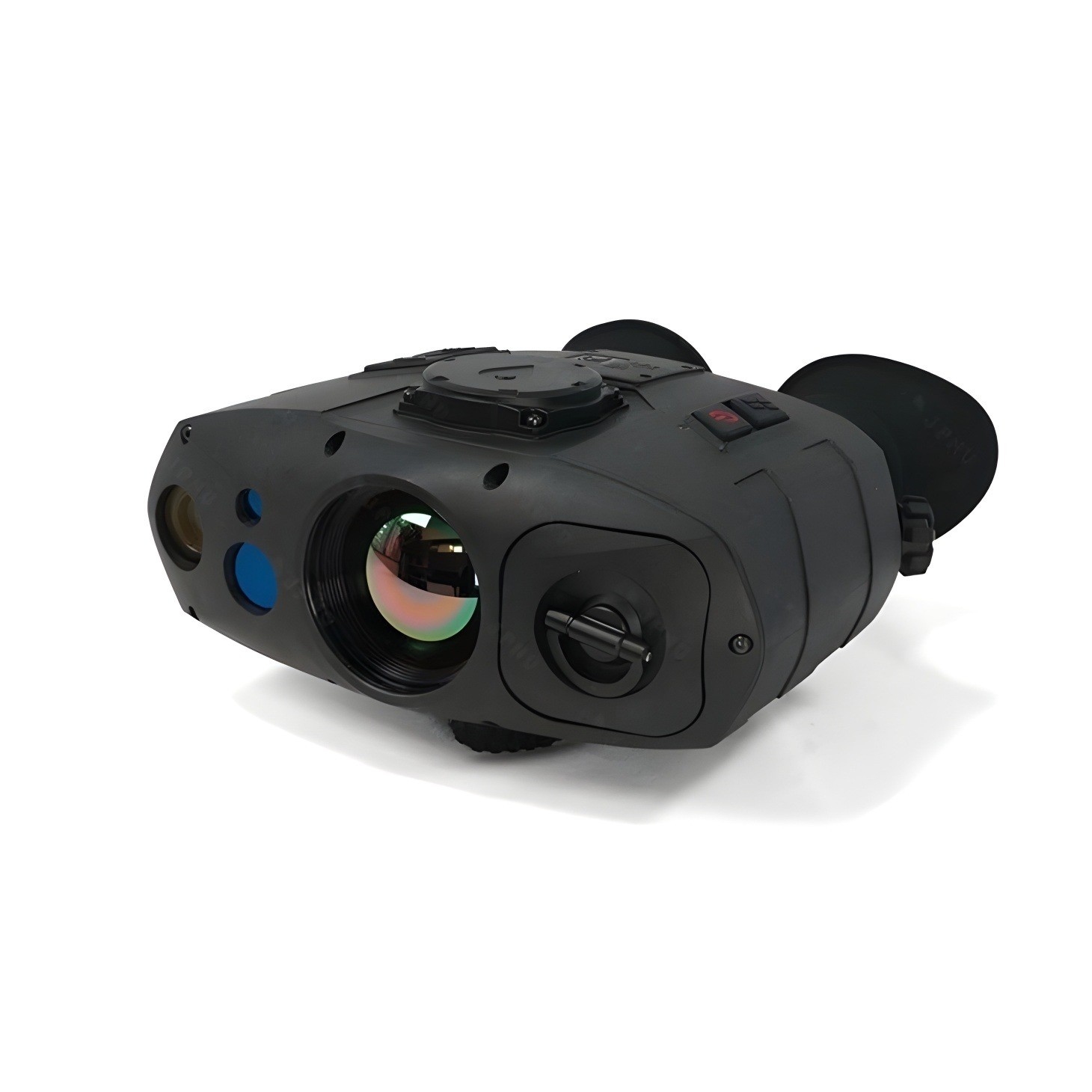

UND-HDB Three Optical Channels HD Binocular
Advanced Thermal Imaging and Day Vision System
Key Features

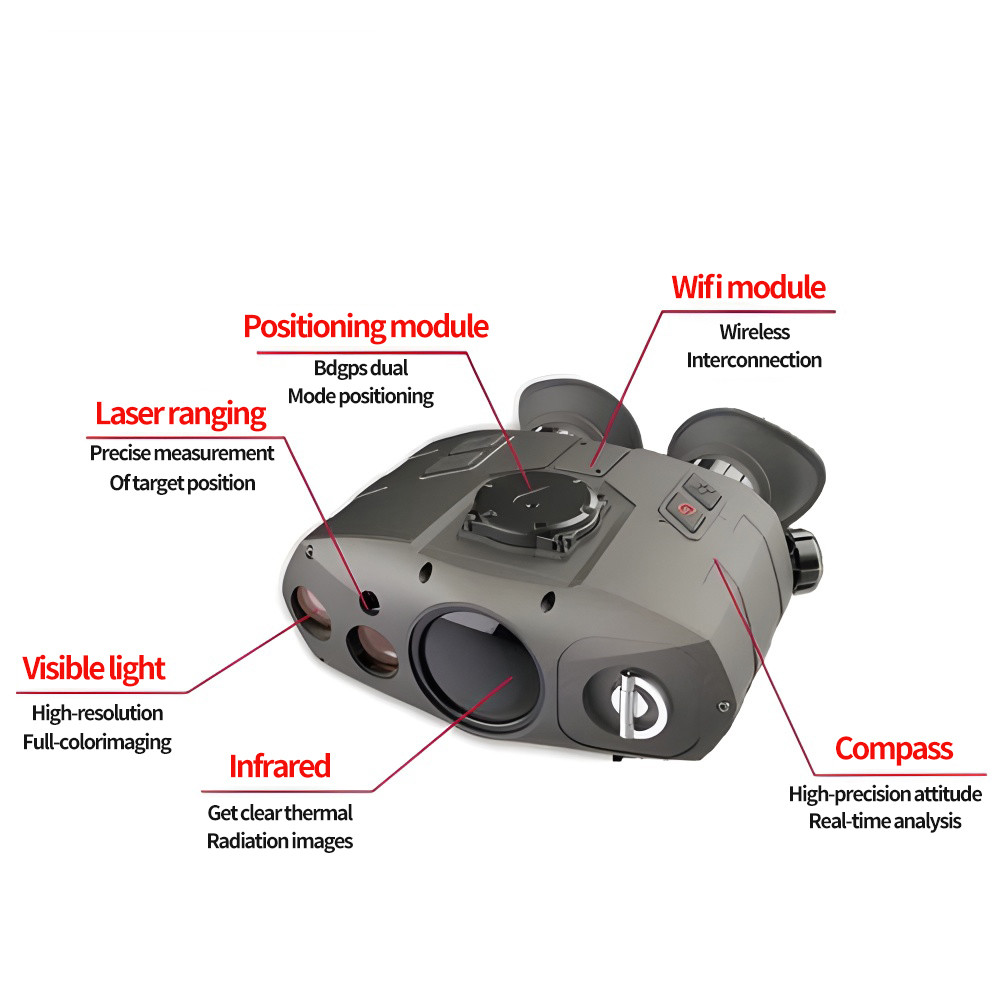

- Triple optical channels: HD thermal imaging, color day vision, and targeting positioning
- High-resolution sensors: 5MP visible light and 800,000-pixel infrared imaging
- Integrated positioning: Built-in GPS/BD module with 5m accuracy
- Compact & lightweight: Only 1.1kg with battery for easy portability
- Extended operation: ≥7 hours battery life in field conditions
- Rugged construction: IP67 rated for harsh environments (-55℃ to +70℃)
Comprehensive Imaging Solution
The UND-HDB combines three optical channels in one compact device, delivering high-definition thermal and color images with precise targeting capabilities. Its 5-megapixel visible light sensor captures exceptional detail, while the infrared channel provides clear nighttime observation even in complete darkness.
Technical Specifications
| Imaging Channels | |
|---|---|
| Thermal Imaging Channel | 1024x768 resolution, 12μm detector, 8-14μm spectral band |
| Color Day Channel | 2592x1944 resolution, 27μm detector, 0.4-0.63μm spectral band |
| Positioning & Measurement | |
| Laser Rangefinder | 1535nm eye-safe laser, ≥3km range, 2m accuracy |
| Positioning Module | BD+GPS with 5m horizontal and 10m elevation accuracy |
| Digital Compass | 0.2° azimuth accuracy, 0.4° pitch accuracy, 0.5° inclination accuracy |
| General Specifications | |
| Display | 1280x960 OLED |
| Storage | 10,000 JPG images or 4 hours AVI video |
| Weight | ≤1.1kg (with battery) |
| Battery Life | ≥7 hours continuous operation |
| Dimensions | 143x164x73mm |
| Environmental | IP67 rated, -55℃ to +70℃ storage, -40℃ to +55℃ operation |
Operational Performance
| Target Type | Detection Range | Recognition Range | Identification Range |
|---|---|---|---|
| Human (1.7mx0.5m) | 2000m (thermal), 3000m (day) | 1000m (both) | 500m (both) |
| Vehicle (2.3mx2.3m) | 3000m (thermal), 4000m (day) | 1400m (thermal), 2000m (day) | 700m (thermal), 800m (day) |
