Product Description

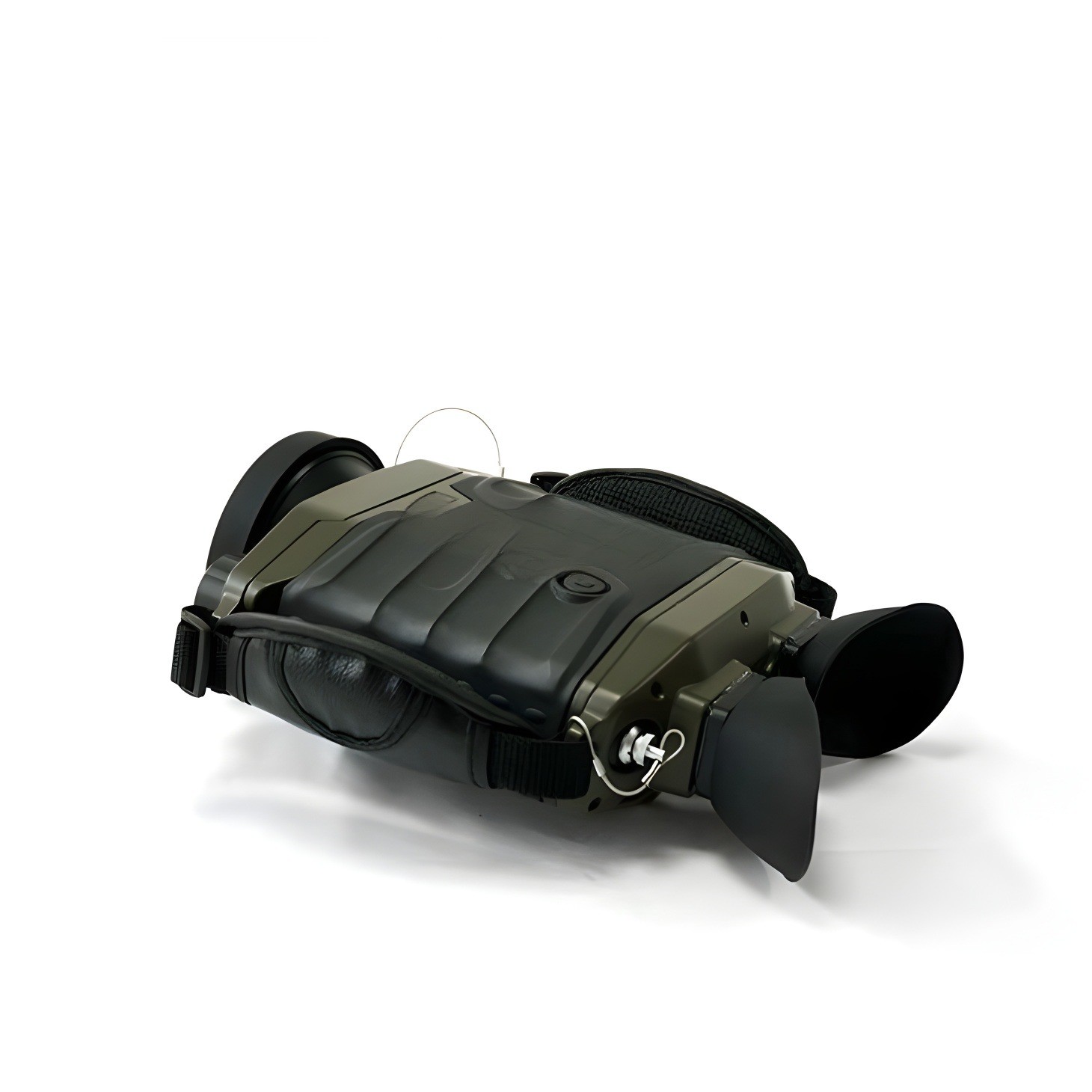

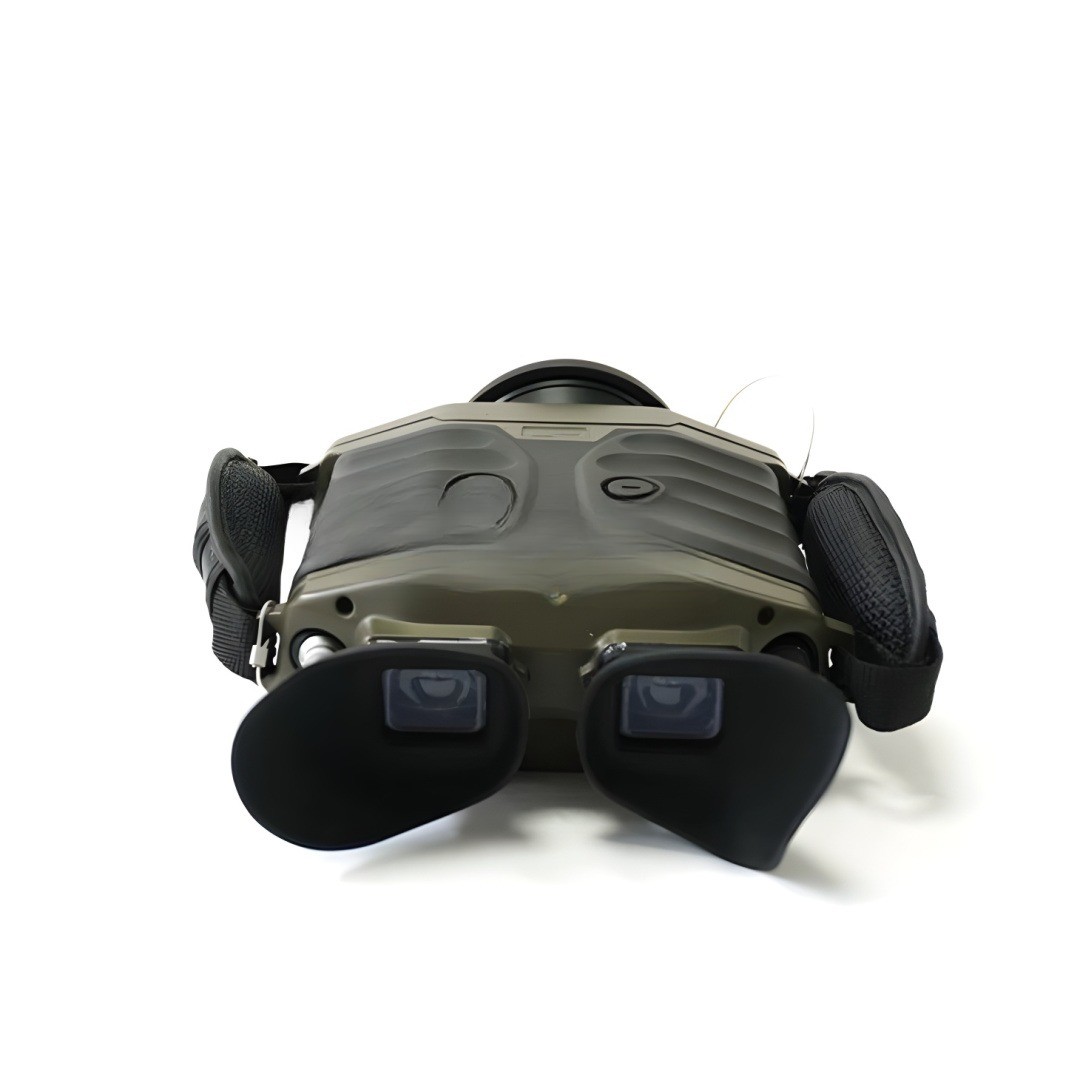

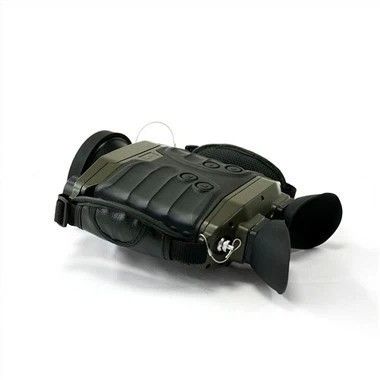

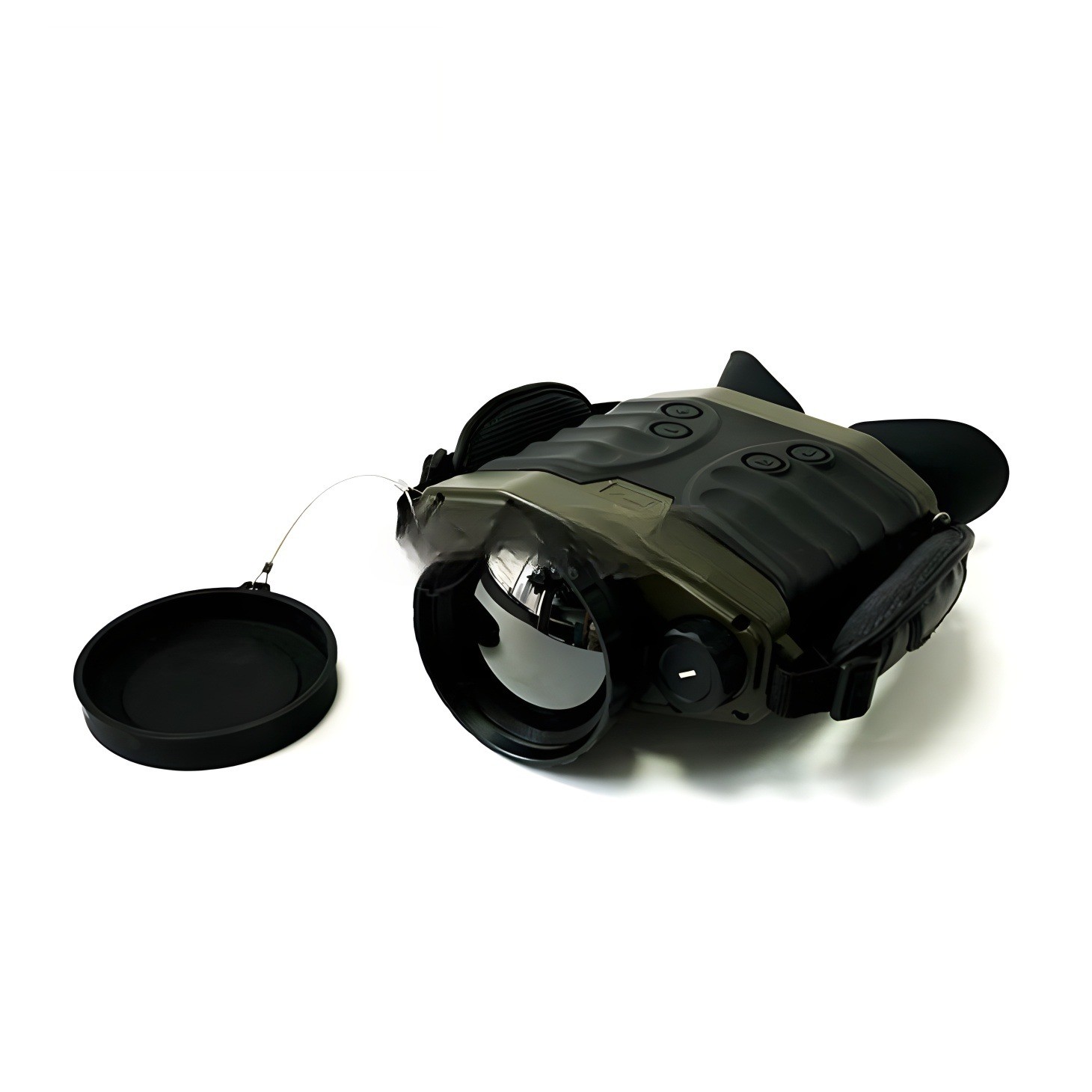

Uncooled Thermal Imaging 640x480 384x288 Heat Detecting Binoculars
High Performance Thermal Imaging Binocular
The TB-375 384x288/640x480 Uncooled Thermal Imaging Binocular delivers exceptional performance with its advanced optical technology. Featuring an un-cooled Asi focal plane detector with 8-14μm wavelength range and 17μm pixel size, this device provides high-resolution thermal imaging at a smooth 50Hz frame rate.
Key Features
- Uncooled Asi focal plane detector for reliable thermal imaging
- 800×600 OLED display for crisp, clear visuals
- 75mm standard lens with F/1.0 aperture for superior light gathering
- 50Hz frame rate for smooth video capture
- Customizable imaging settings including contrast, brightness and color palettes
- Rugged construction withstands harsh conditions
- User-friendly interface with intuitive controls
- USB storage and transfer capabilities
Technical Specifications
| Detector Type | Uncooled Asi focal plane |
| Detector Resolution | 384×288 (640×480 optional) |
| Working Band | 8~14μm |
| Pixel Size | 17μm |
| Frame Frequency | 50hz |
| Objective Lens | 75mm standard lens F=1.0 |
| Display | 800×600 OLED |
| Battery | 2×TF25500 lithium charge, 3.7v / 3000mah |
| Operating Time | > 6 hours continuous |
| Operating Temperature | -20℃~+60℃ |
| Dimensions | 230×180×80 mm |
| Net Weight | 1.35kg (excluding battery) |
| Identification Distance | 2000m |
This professional-grade thermal imaging binocular is designed for surveillance, nocturnal observations, and various outdoor applications. Its rugged construction ensures durability in demanding environments, while the ergonomic design provides comfortable extended use.
