12um Infrared Thermal Binocular Telescope White Black Night Vision Binocular
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 12um infrared thermal binocular telescope,infrared thermal binocular telescope white,black night vision binocular |
||
|---|---|---|---|
Product Description

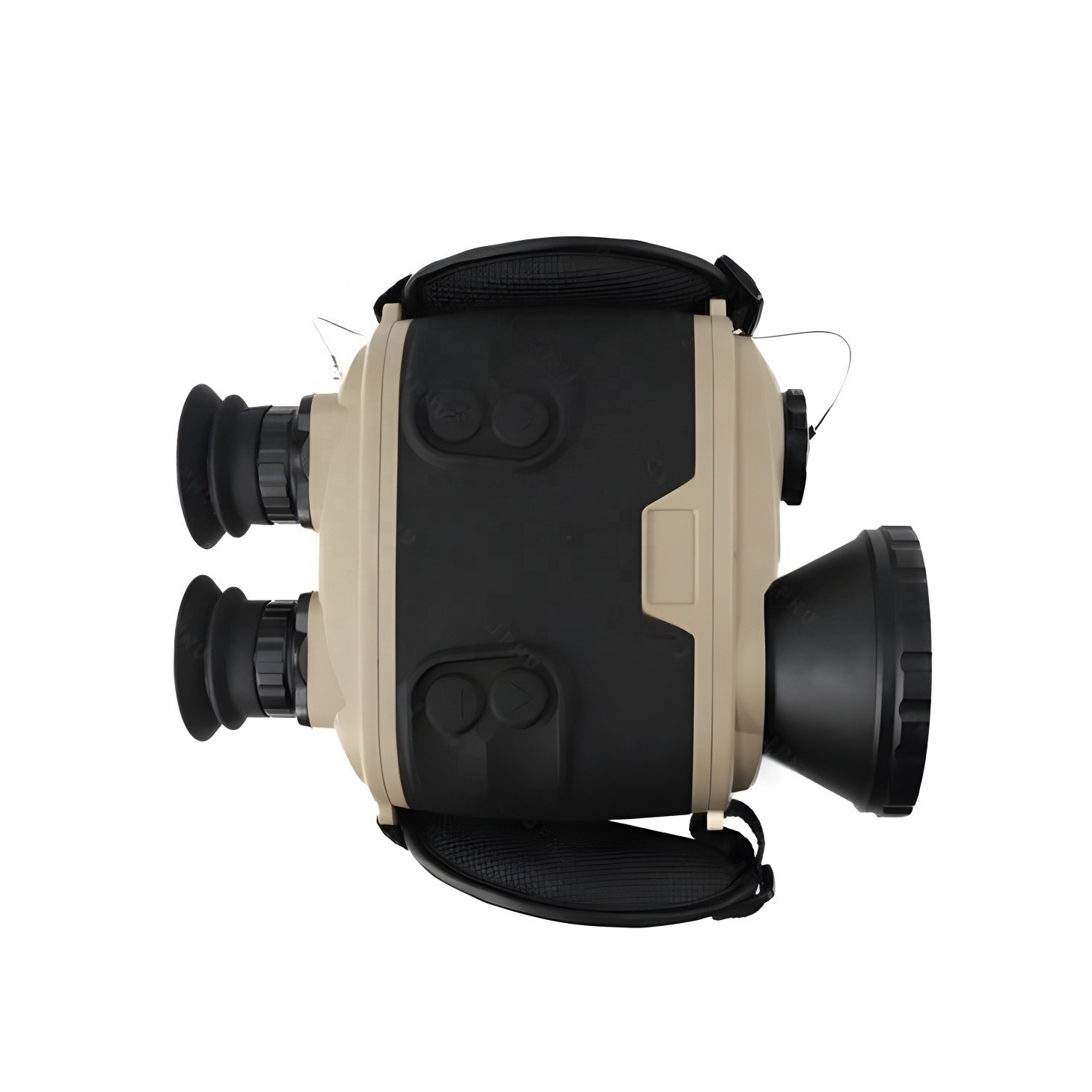

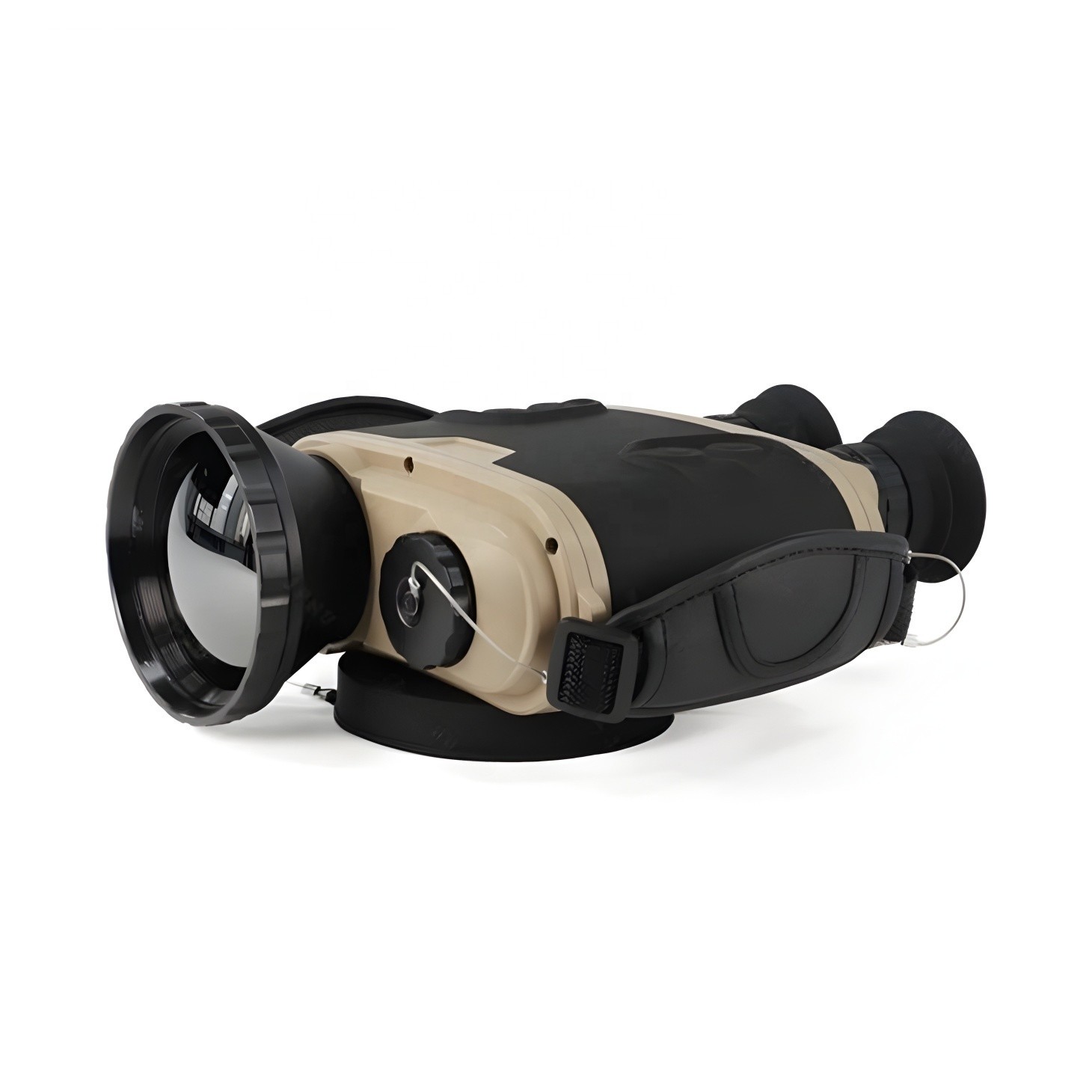

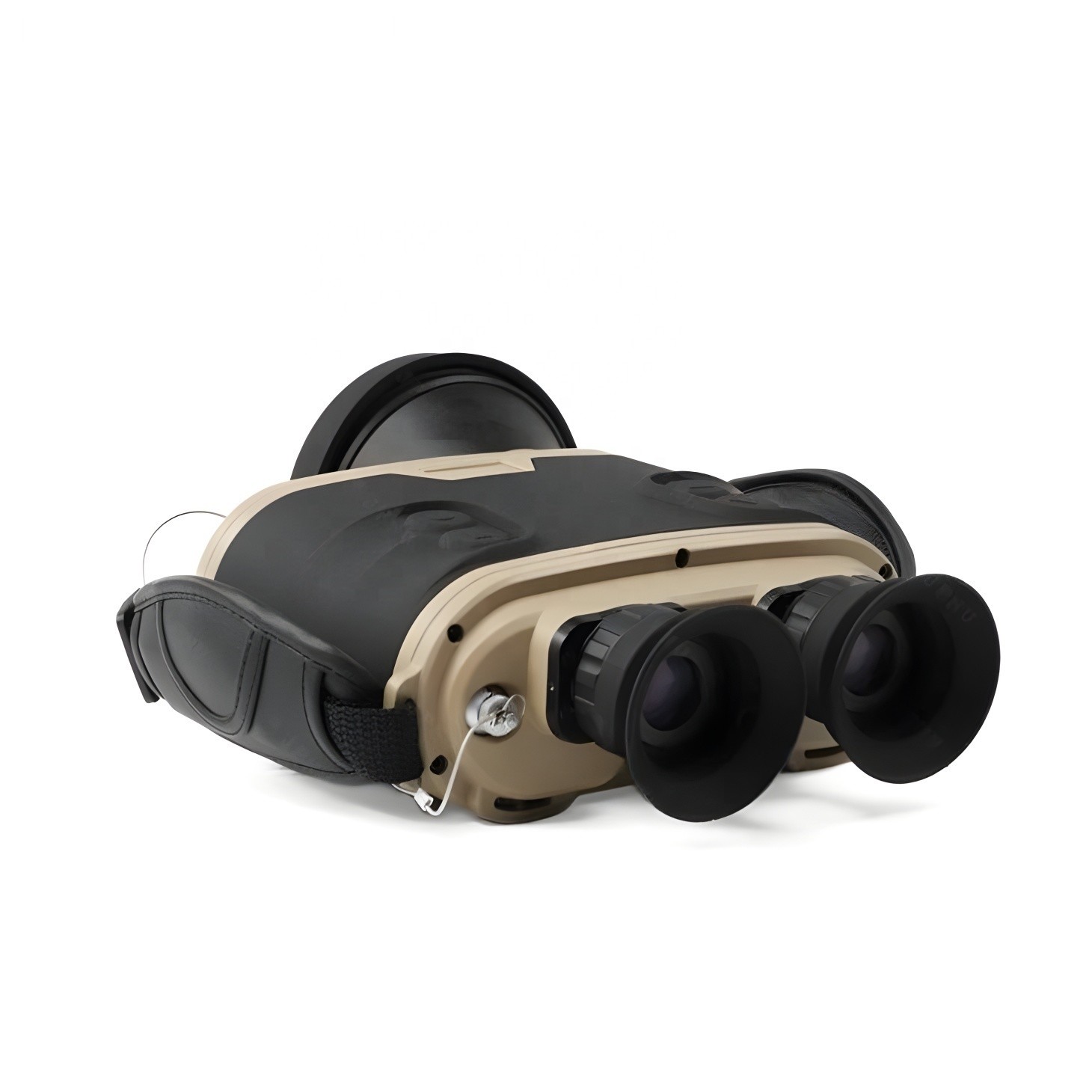

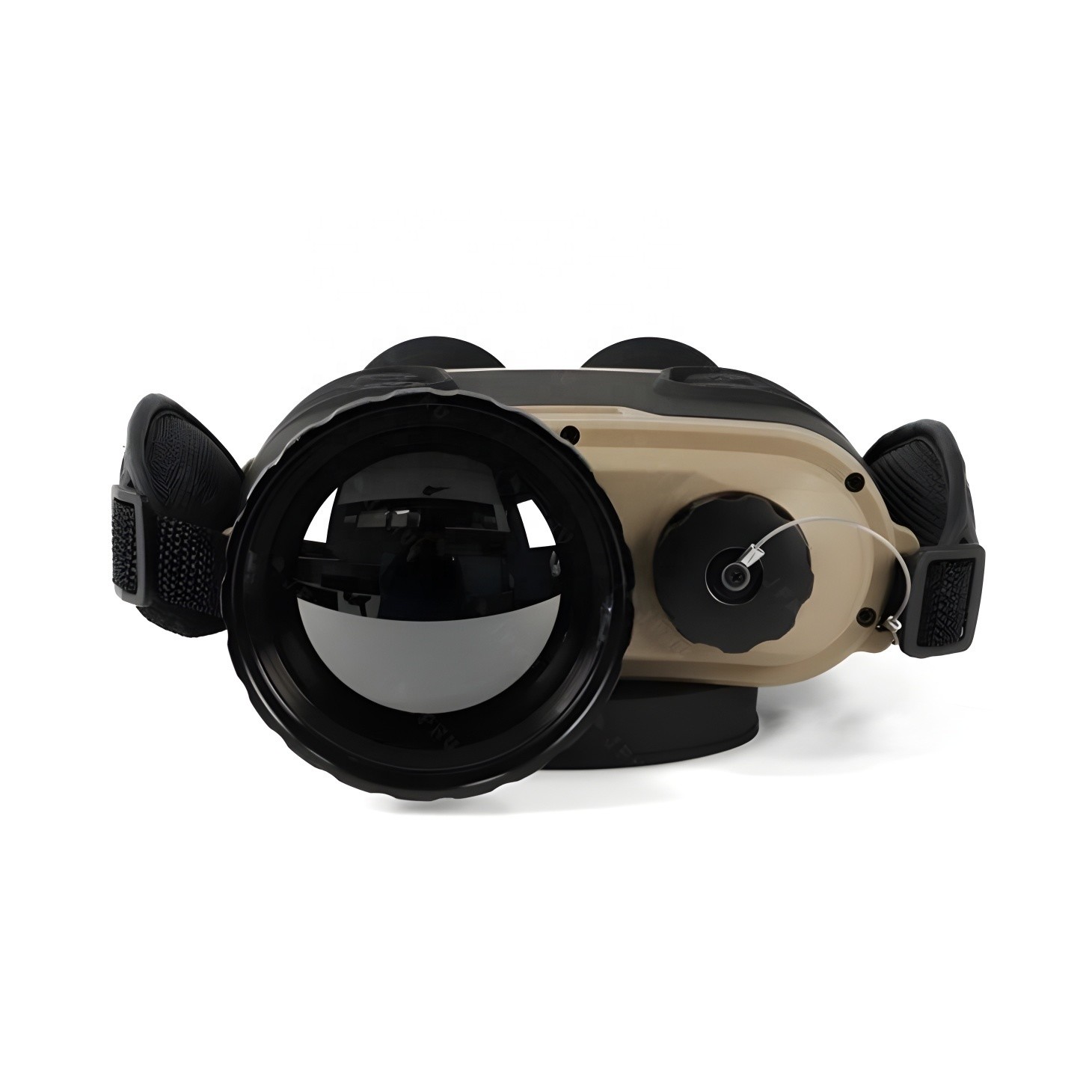

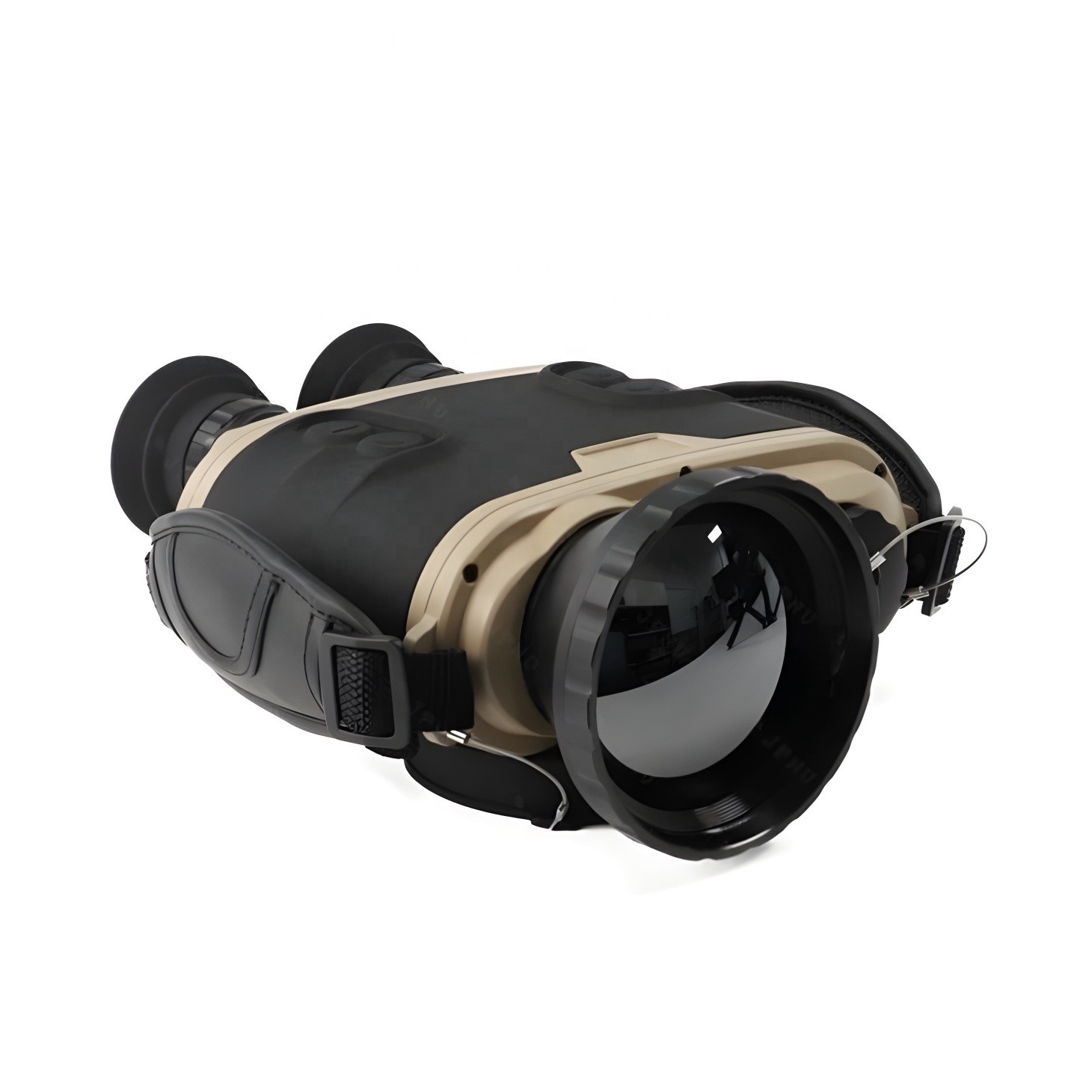

12um Infrared Thermal Binocular Telescope White Black Night Vision Binocular
New Generation Thermal Imaging Binocular
UND-TB675 Infrared thermal binocular thermal imaging telescope night vision binocular
Key Features
- Uncooled VoX 640×512@12μm detector
- White Hot / Black Hot / Pseudo-color display options
- Extended 6+ hours continuous operation
- High-resolution 1024×768 OLED display
- Robust IP66-rated construction
- Ergonomic design for comfortable extended use
Product Overview
The TB-675M Thermal Imaging Binocular features a non-cooled infrared focal plane detector with exceptional sensitivity for clear thermal imaging in low light conditions. Its high-resolution OLED display provides crisp visual feedback for precise observation and identification.
Engineered for professional use, the TB-675M combines durability with operational efficiency. The rugged construction withstands outdoor conditions while the ergonomic design ensures comfortable handling during extended observation sessions.
Technical Specifications
| Infrared Thermal Imaging | |
|---|---|
| Detector | Uncooled VoX 640×512@12μm |
| Working Band | 8~14μm |
| Frame Frequency | 50Hz |
| NETD | < 40mk |
| Lens System | f = 75mm (F 1.0) |
| FOV | 5.9°×4.7° |
| Focus Method | Automatic / manual focus setting |
| Digital Zoom | 1×~4× |
| Image Polarity | White Hot / Black Hot / Pseudo-color |
| Observation Distance | |
| Human Target (1.7m×0.5m) | Detection: 4 km; Identification: 1.2km |
| Vehicle Target (2.3m×2.3m) | Detection: 6.5km; Identification: 2.5km |
| *Test Conditions: Atmospheric Visibility 23km, Ambient Temperature 20℃ | |
| Power Parameters | |
| Battery Type | 1 section 26650 rechargeable lithium battery 3.7V@5000mAH |
| Operating Voltage | DC: +2.8V~+5.0V |
| Power Dissipation | ~3.0W |
| Continuous Working Hours | 6 h |
| Physical Parameters | |
| Weight | ≤1.2kg (with battery) |
| Dimensions | 220×170×85 mm |
Environmental Specifications
- Waterproof and Dustproof Grade: IP66
- Operating Temperature: -30°C~+60°C
- Storage Temperature: -40°C~+70°C
- Compliance: GJB150 standards for salt atmosphere, vibration, impact, and hot/humid conditions
