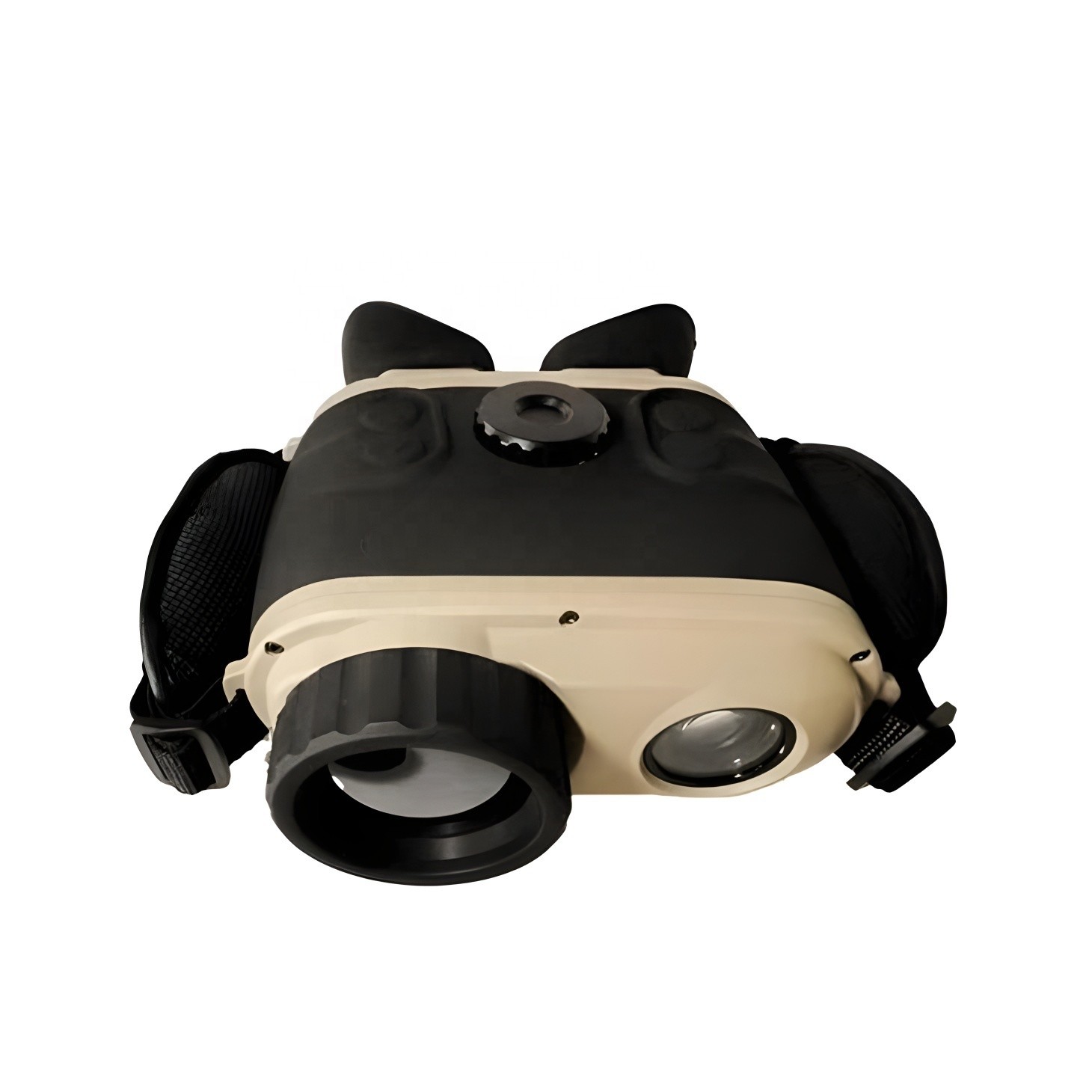

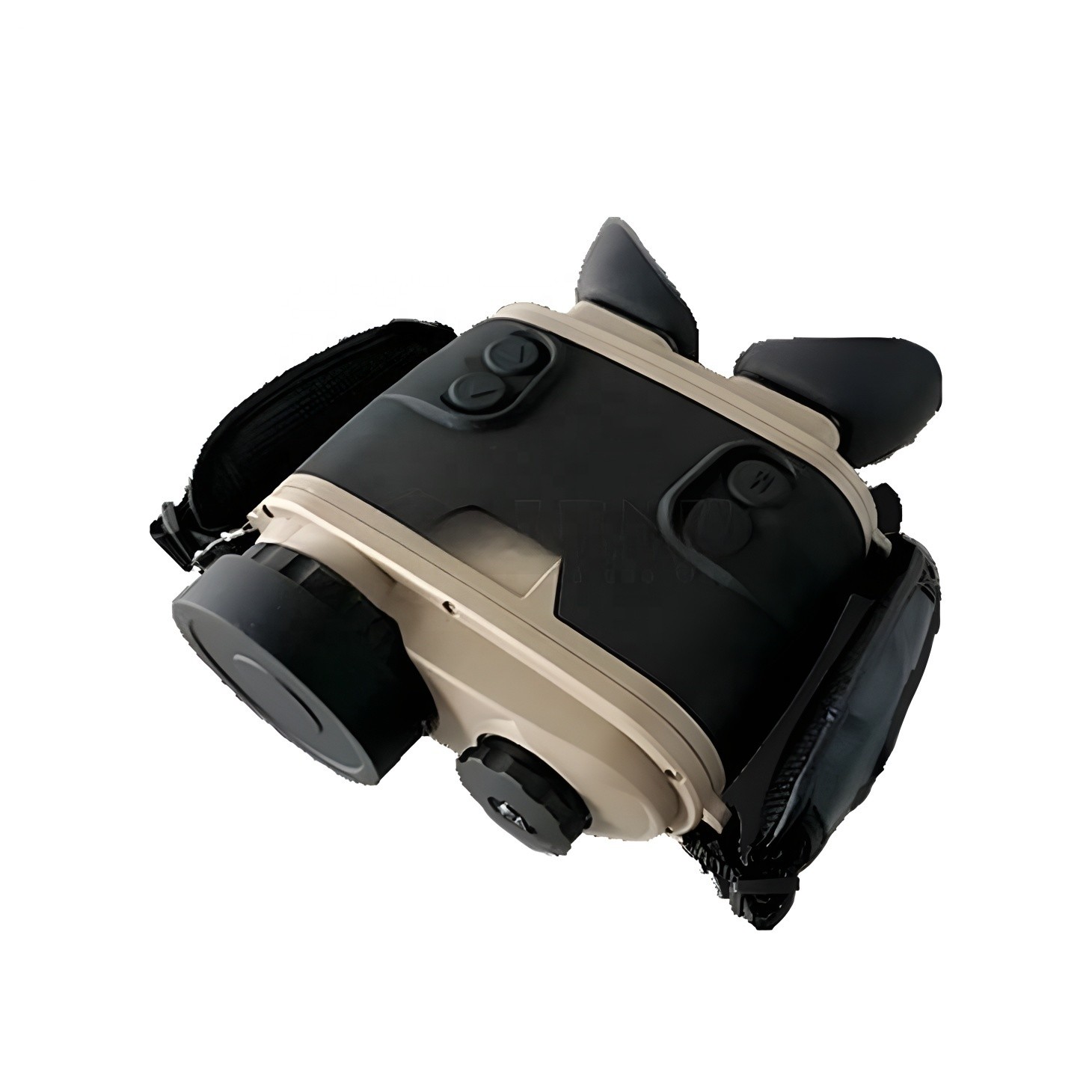

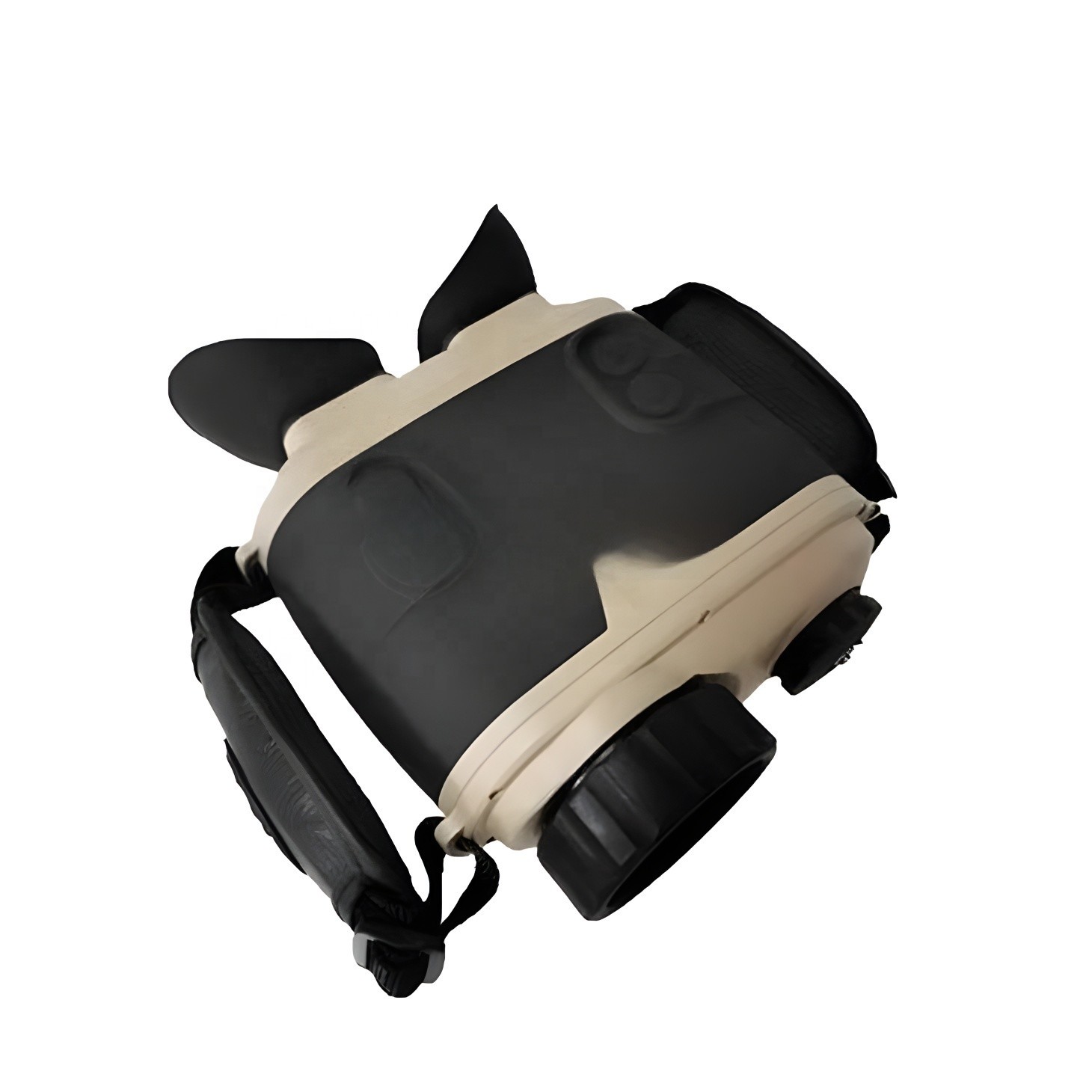

3km Hunting Thermal Imaging 1280×960 Handheld Night Vision Scope Camera
Upgraded Version Handheld Thermal Imaging Binocular
UND-TB-650 Hunting Thermal imaging Vision Camera Thermal Imaging Binocular
The TB-650 Upgraded Version Handheld Thermal Imaging Binocular is the latest addition to the TB-350 series, featuring significant improvements including:
- Larger field of view and higher definition OLED display
- 1×~4× electronic magnification capability
- Enhanced detector for improved thermal imaging
- Lightweight, portable design with ergonomic grip
This advanced thermal imaging device offers exceptional capabilities for outdoor enthusiasts. The ultra-wide field of view enables detection of potential targets or obstacles from greater distances, while the high-resolution OLED display provides crystal-clear image quality for detailed observation.
Technical Specifications
| Thermal Imaging | |
|---|---|
| Detector | 640×512 8~14um Uncooled Detectors |
| Pixels | 12μm |
| Frame Rate | 50Hz |
| Infrared Lens Focal Length | 50mm |
| FOV | 8.8°×7.0° |
| NETD | ≤40mK |
| Focus Range | 5m~∞ |
| Electronic Magnification | 1×~4× |
| Polarity | Black-hot, White-hot, Red-hot, False color |
| Low Light Night Vision | |
| Sensor Specifications | 1/2 CMOS |
| Sensor Resolution | 1280×960 |
| Lens Focal Length | 35mm |
| Working Illumination | 0.001 lx |
| Beidou Satellite Positioning Accuracy | CEP<10 M |
| Image Display | |
| Display Type | I1024×768 0.5 inch OLED micro display |
| Eyepiece Magnification | 13X |
| Eyepiece Exit Pupil Distance | ≥20mm |
| System Performance | |
| Detection Distance | Personnel(1.7m×0.5m): ≥3.0Km Vehicle(2.3m×2.3m): ≥6Km Weather conditions: humidity≤60 Visibility greater than 17Km |
| Recognition Distance | Personnel(1.7m×0.5m): ≥1.0Km Vehicle(2.3m×4.7m): ≥2.0Km Weather conditions: humidity≤60 Visibility greater than 17Km |
| Average Power Consumption | ≤3.5W (Infrared thermal imaging mode) |
| General Specifications | |
| Battery Type | Rechargeable Lithium Battery 26650 |
| Battery Capacity | 3.7V/18Wh |
| Battery Working Time | >6h Continuous operation in observation mode |
| Dimensions | 210×175×75mm (Hand strap and shoulder strap not included) |
| Weight | ≤1.2Kg |
| Operation Temperature | -40℃~+55℃ |
| Storage Temperature | -45℃~+60℃ |
| Dust and Waterproof Grade | IP67 |
The TB-650 is ideal for hunting, hiking, camping, and other outdoor activities, offering superior thermal imaging capabilities in various environmental conditions.
