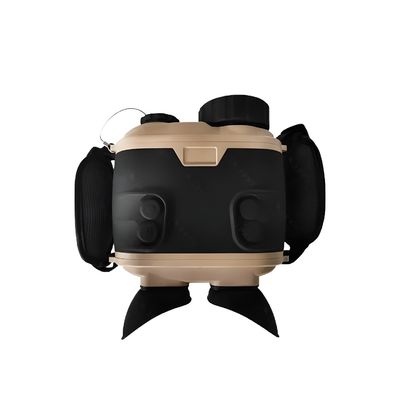

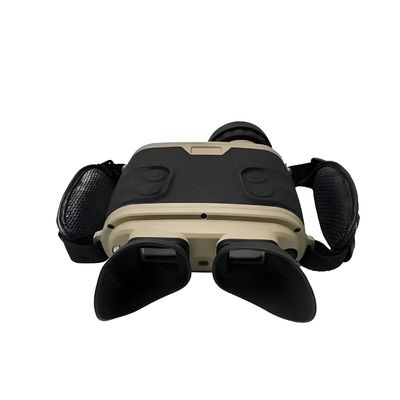

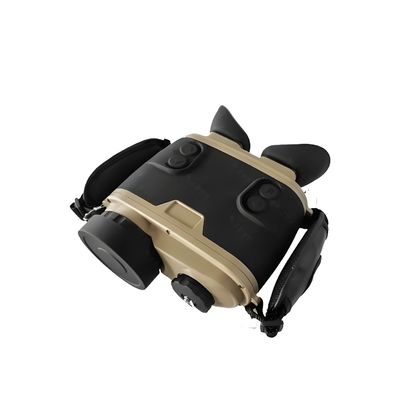

Hand Held Infrared Binoculars For Hunting - Black Thermal Image Infrared Night Vision
High-Sensitivity Thermal Imaging Binocular
UND-TB-350 Hand-held infrared uncooled thermal imaging night vision thermal binoculars
Key Features:
- Un-cooled thermal radiation measurement detector
- NETD ≤50mK at 300K
- 8 to 14μm wavelength range
- Dual-eye LCOS eyepiece with 640 x 480 pixel resolution
Product Description
The High-sensitivity Thermal Imaging Binocular is a professional-grade thermal imaging device offering exceptional performance and reliability. Available in TB-350B and TB-350E models, both engineered for precision thermal imaging applications.
Features an uncooled thermal radiation measurement detector with 384 × 288 pixel resolution and 17μm pixel pitch for accurate thermal imaging. With NETD of less than 50mK at 300K, it detects minute temperature differences with high precision.
Model Variations:
- TB-350B: 8-14μm wavelength range with 640×480 LCOS display
- TB-350E: 8-12μm wavelength range with 800×600 OLED display
High 50Hz frame rate ensures smooth imaging for tactical operations and scientific applications. Advanced features include digital filtering for noise reduction and Dynamic Detail Enhancement (DDE) technology for improved image clarity.
Technical Specifications
| Parameter | TB-350B | TB-350E |
|---|---|---|
| Detector | Uncooled detectors 384×288@17μm | |
| Wavelength Range | 8~14μm | 8~12μm |
| Frame Rate | 50Hz | |
| Response Rate | <50mK@300K | |
| Display Type | 640×480 LCOS | 800×600 OLED |
| Image Processing | Digital Filtering, DDE, Auto/Manual Adjustment | |
| Electronic Magnification | ×1~×4 | ×1~×8 |
| Focus Length | f = 50mm | |
| FOV | 7.5°× 5.6° | |
| Photo Format | JPEG | |
| Video Format | MPEG4 | |
| Storage | SD 32G, USB2.0 | |
| Human Detection Range | 2.5km (Detection), 0.8km (Recognition) | |
| Vehicle Detection Range | 6.0km (Detection), 1.8km (Recognition) | |
| Power Supply | 1×26650 Charging Lithium Battery 3.7V@5000mAh | |
| Working Hours | ~6H | |
| Waterproof Grade | IP66 | |
| Weight | <1kg | <1kg |
| Dimensions (mm) | 214(L)×172(W)×95(H) | 250(L)×170(W)×95(H) |
