Laser Ranging Thermal Imaging Handheld Laser Indication Binoculars With Camera And Night Vision

Place of Origin CHINA
Brand Name UND
Minimum Order Quantity 1
Price Please consult a sales engineer
Delivery Time 5-8 days
Payment Terms T/T
Supply Ability 1000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

thermal imaging handheld

,

laser ranging thermal imaging

,

laser indication binoculars with camera and night vision

Leave a Message
Product Description

UND-D6 Multifunction Uncooled Thermal Imaging Binoculars Camera



UND--D6 handheld Multifunctional fusion low light optics and Laser ranging Laser indication night vision binoculars camera

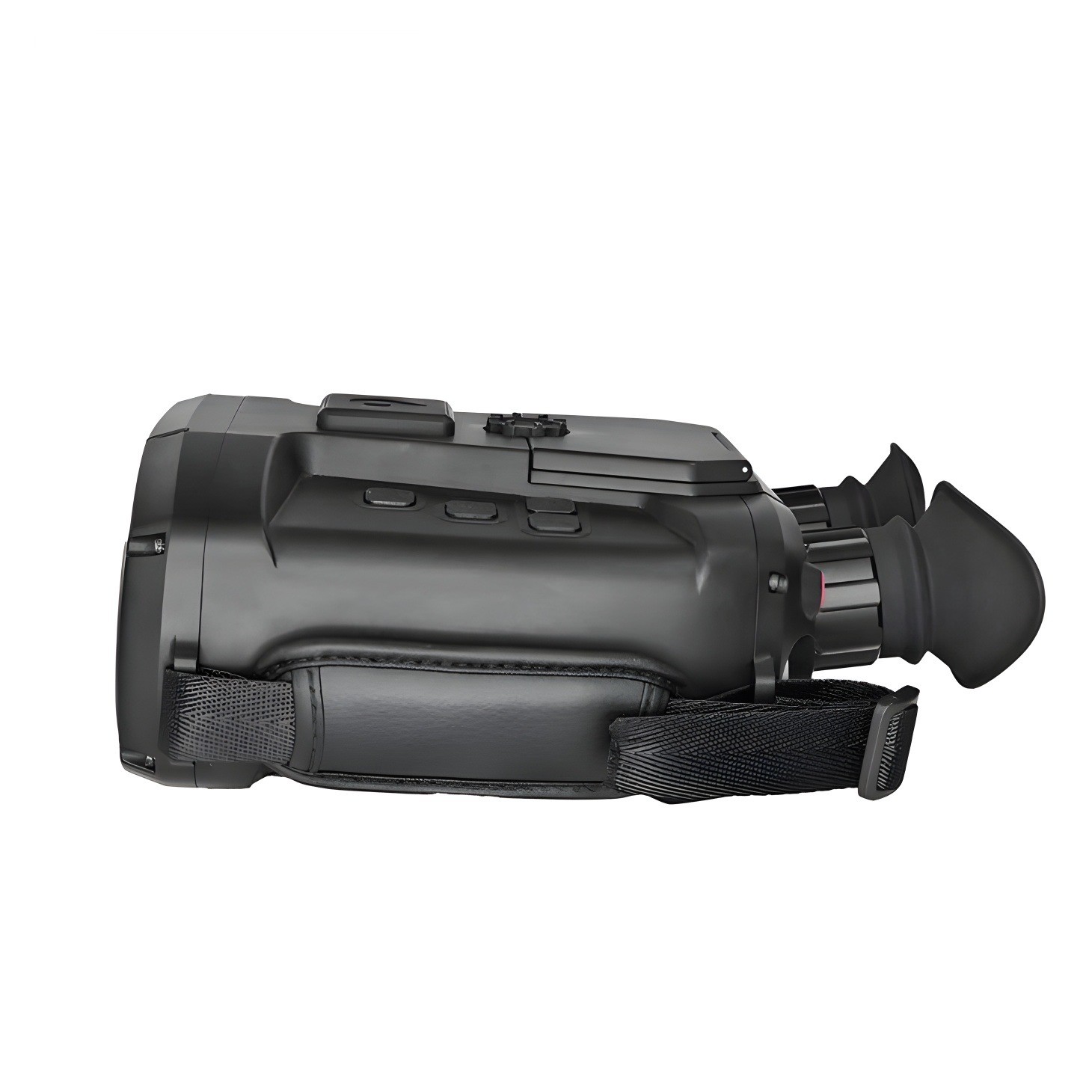

Laser Ranging Thermal Imaging Handheld Laser Indication Binoculars With Camera And Night Vision 0

Integrated with infrared imaging, HD visual imaging, visual imaging with low light and 800x600 8μm large pixel,and low light infrared image fusion, the camera can perform the search, identification and targeting to the object in any condition. With the Eye-safe laser ranging, 830nm and 520nm laser indicator, compass and satellite positioning, the camera can perform functions such as: distance ranging, indication, expelling, target positioning, multi-target Relative positioning, target directing etc. image capturing, video recording, playback, video output, USB media file management, WIFI image transmission, user-friendly human-machine interface Provides HD video out and OLED binocular display, user can observe with OLED or external HDMI equipment.

 Product Features

Integrated with infrared imaging, HD visual imaging, visual imaging with low light and 800x600 8μm large pixel,and low light infrared image fusion, the camera can perform the search, identification and targeting to the object in any condition.

 With the Eye-safe laser ranging, 830nm and 520nm laser indicator, compass and satellite positioning, the camera can perform functions such as: distance ranging, indication, expelling, target positioning, multi-target Relative positioning, target directing etc.

 Image capturing, video recording, playback, video output, USB media file management, WIFI image transmission, user-friendly human-machine interface

 Provides HD video out and OLED binocular display, user can observe with OLED or external HDMI equipment.

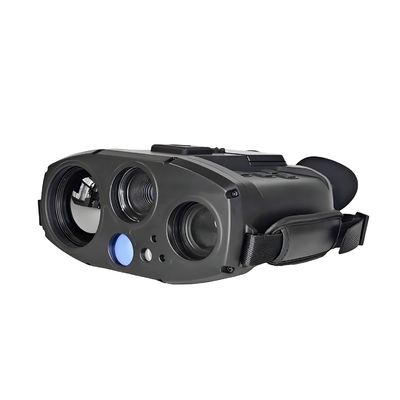

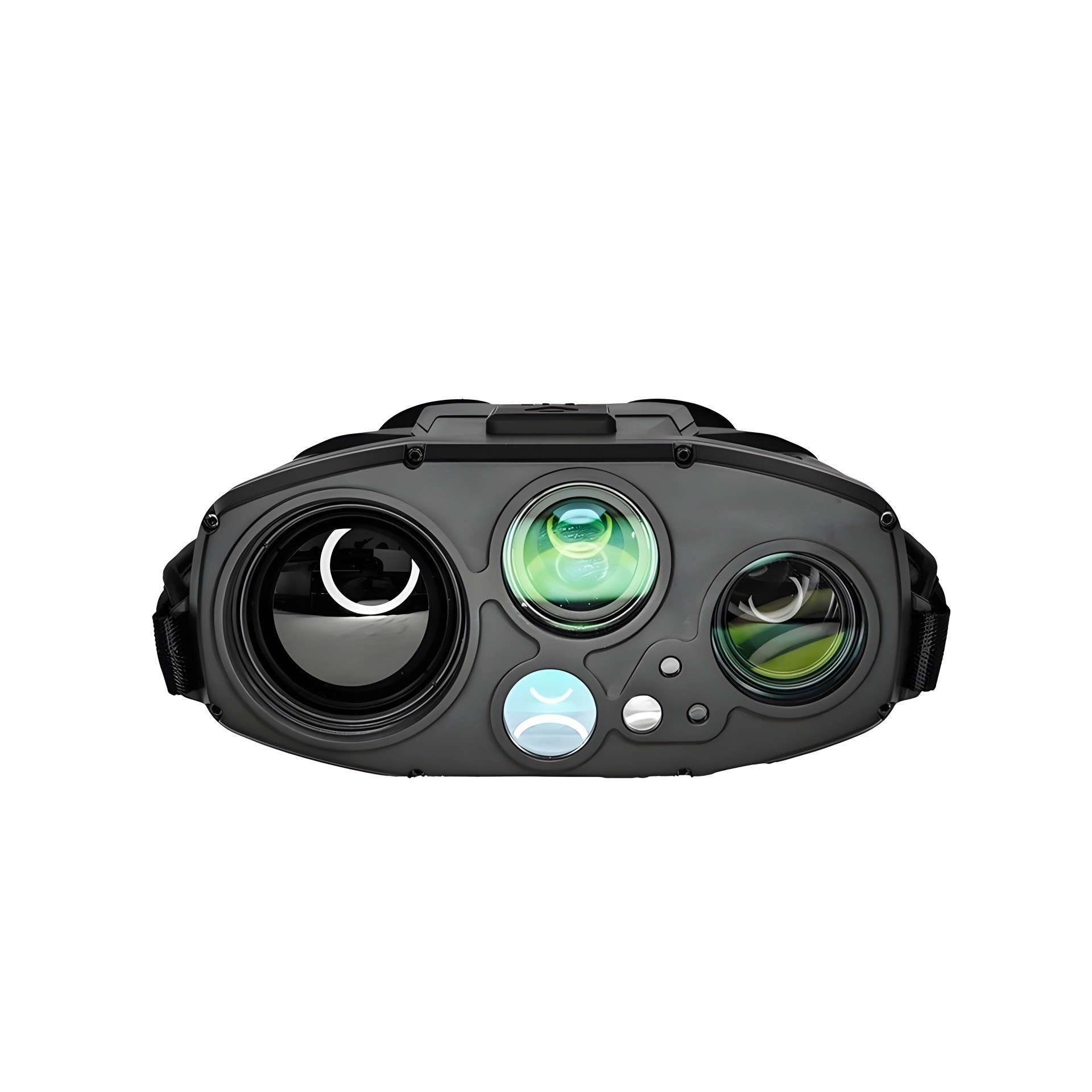

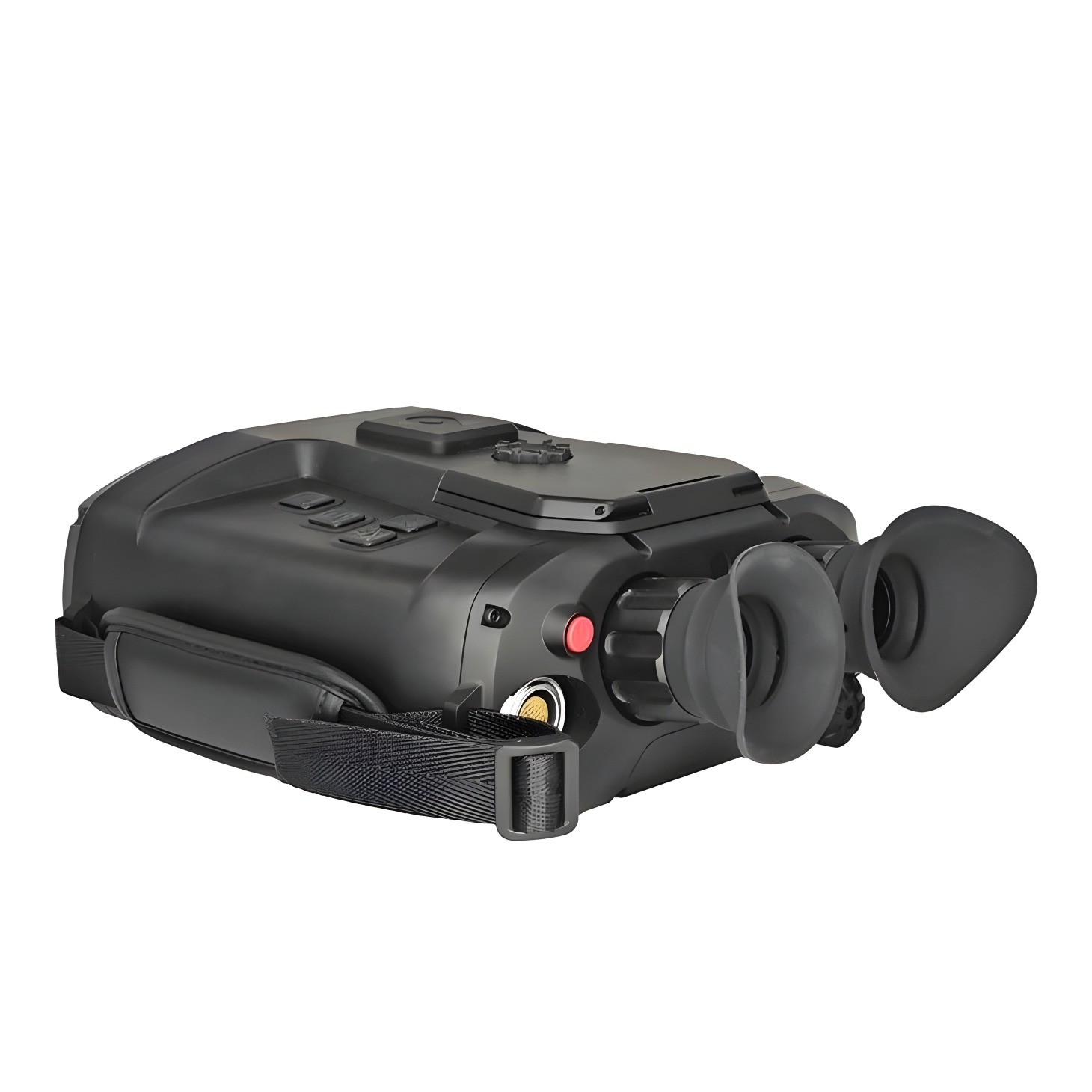

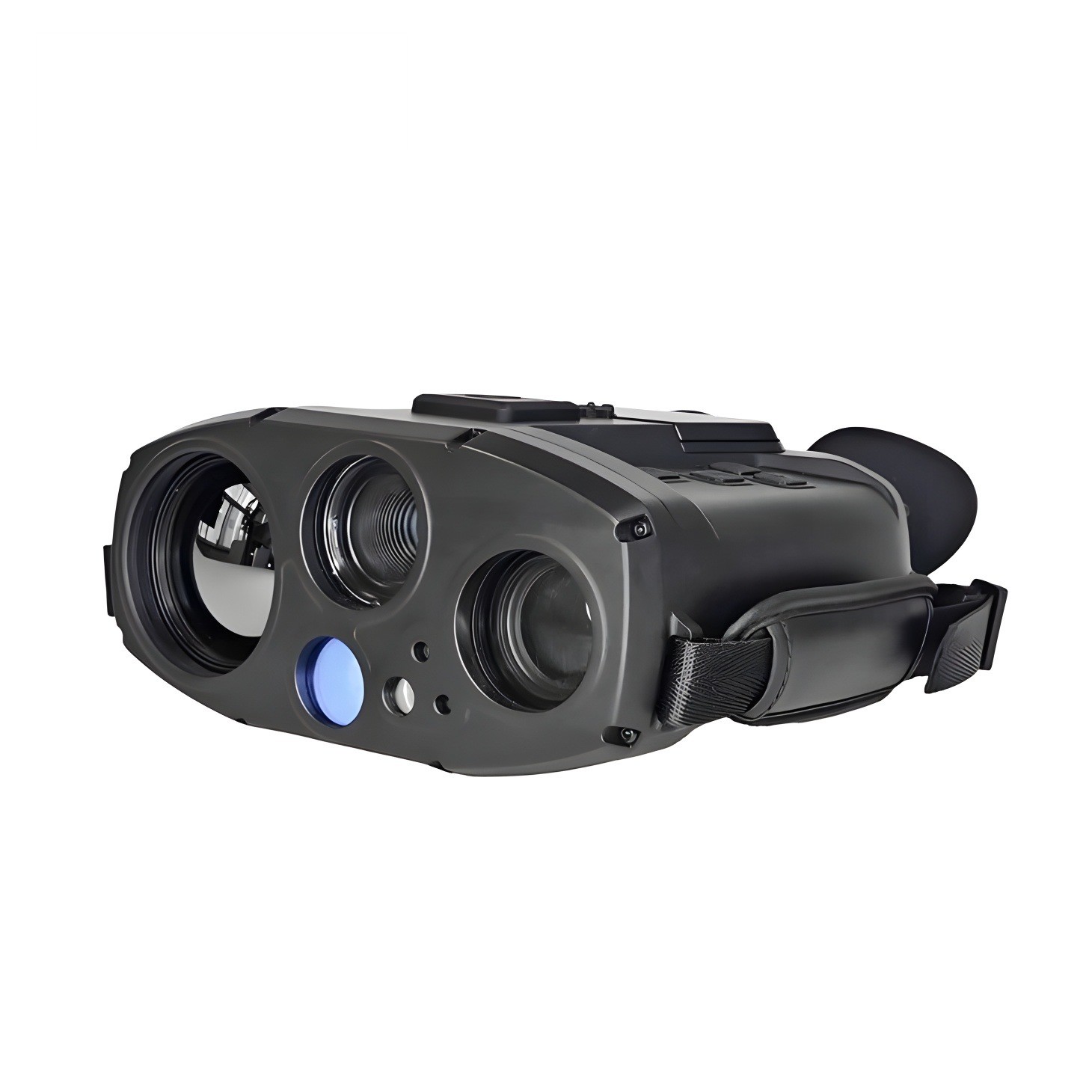

Laser Ranging Thermal Imaging Handheld Laser Indication Binoculars With Camera And Night Vision 1Laser Ranging Thermal Imaging Handheld Laser Indication Binoculars With Camera And Night Vision 2Laser Ranging Thermal Imaging Handheld Laser Indication Binoculars With Camera And Night Vision 3



Technical Parameters

Items

Specifications

Thermal Imaging

NETD

Recognition Range

≤45 mK
≥ 4km, vehicle-size target
≥ 1.5km, human

Visual Imaging

Visual Detector

CMOS, 1920×1080, 1/2.8

Visual Lens

WFOV 61.3°×36.8°, NFOV 3.4°×1.9°±5%

Low-light
Visual Imaging

Detector
Lens

CMOS, 800×600, 8 μm
50mm f1.4, 7.32°×5.5°

Laser
Rangefinder

False Detection Rate

≤ 2%

Positioning and Orientation

Angle Accuracy

≤ 0.3° (RMS) pitch angle

Laser Pointer

Unvisible

850nm, 30mW

Display

Eyepiece

OLED, 1920×1080, 0.71", binocular

Video Recording

Storage size

≥ 64G

Interfaces

Video Output

PAL, HDMI

Physical

Size (L×W×H)

230mm×230mm×130mm
