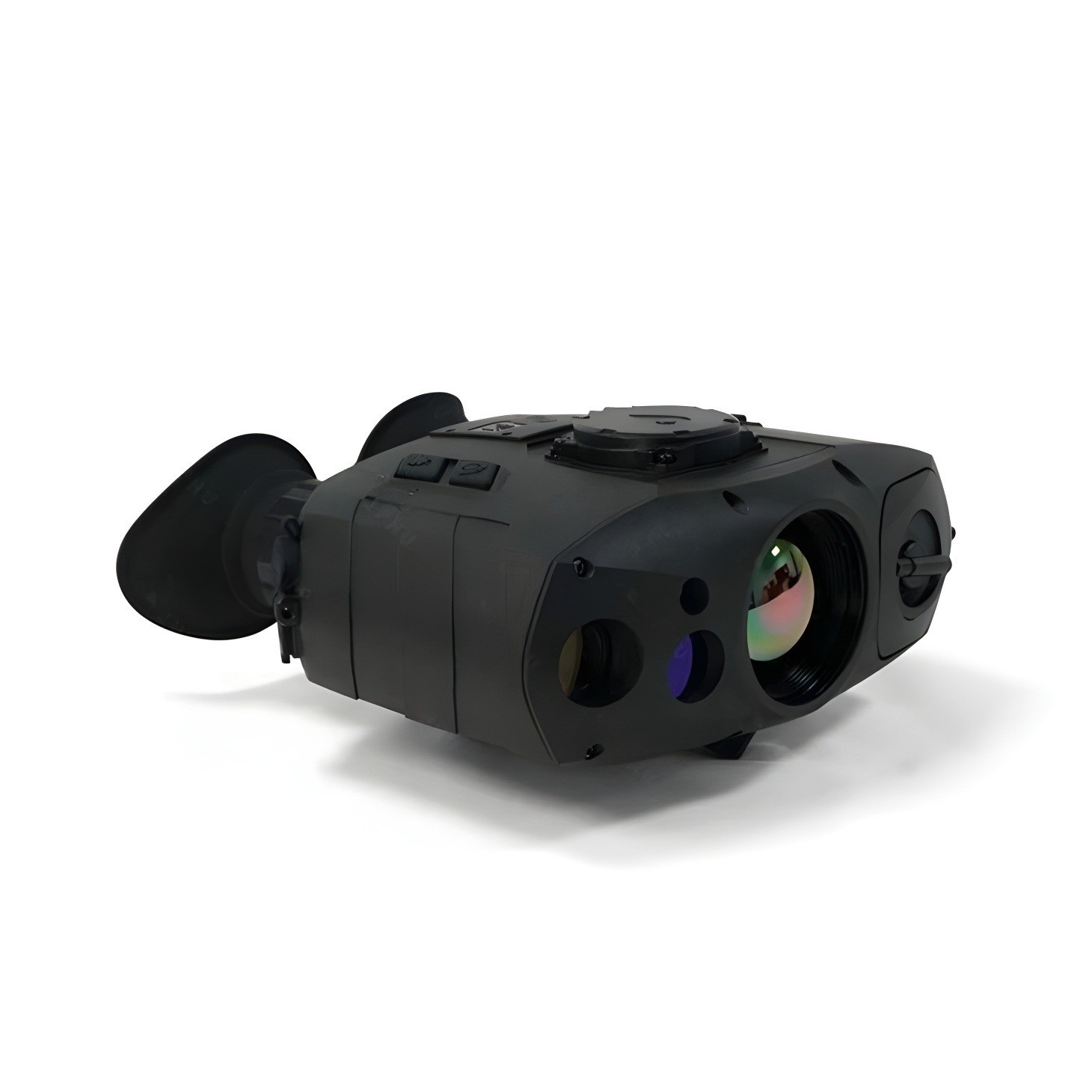

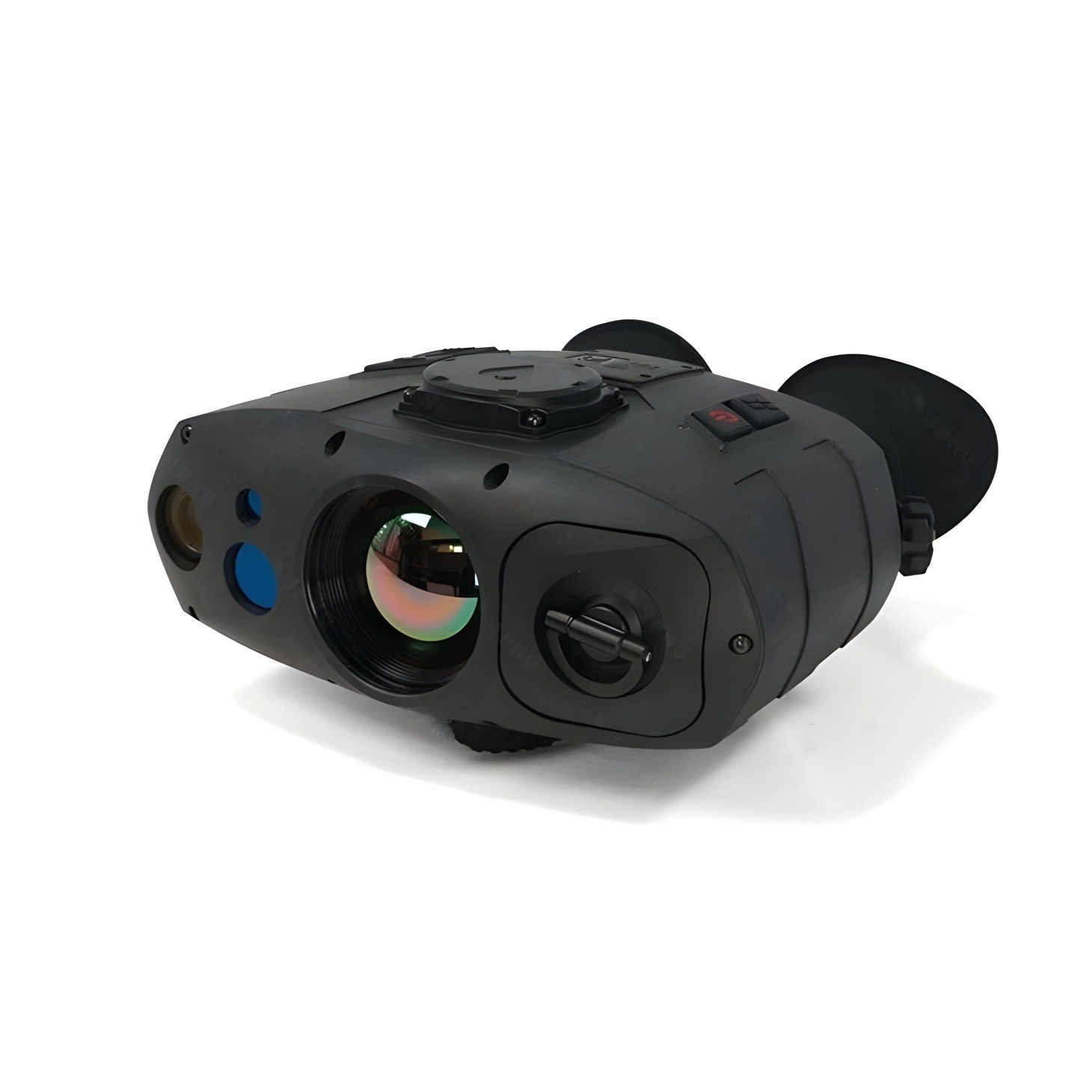

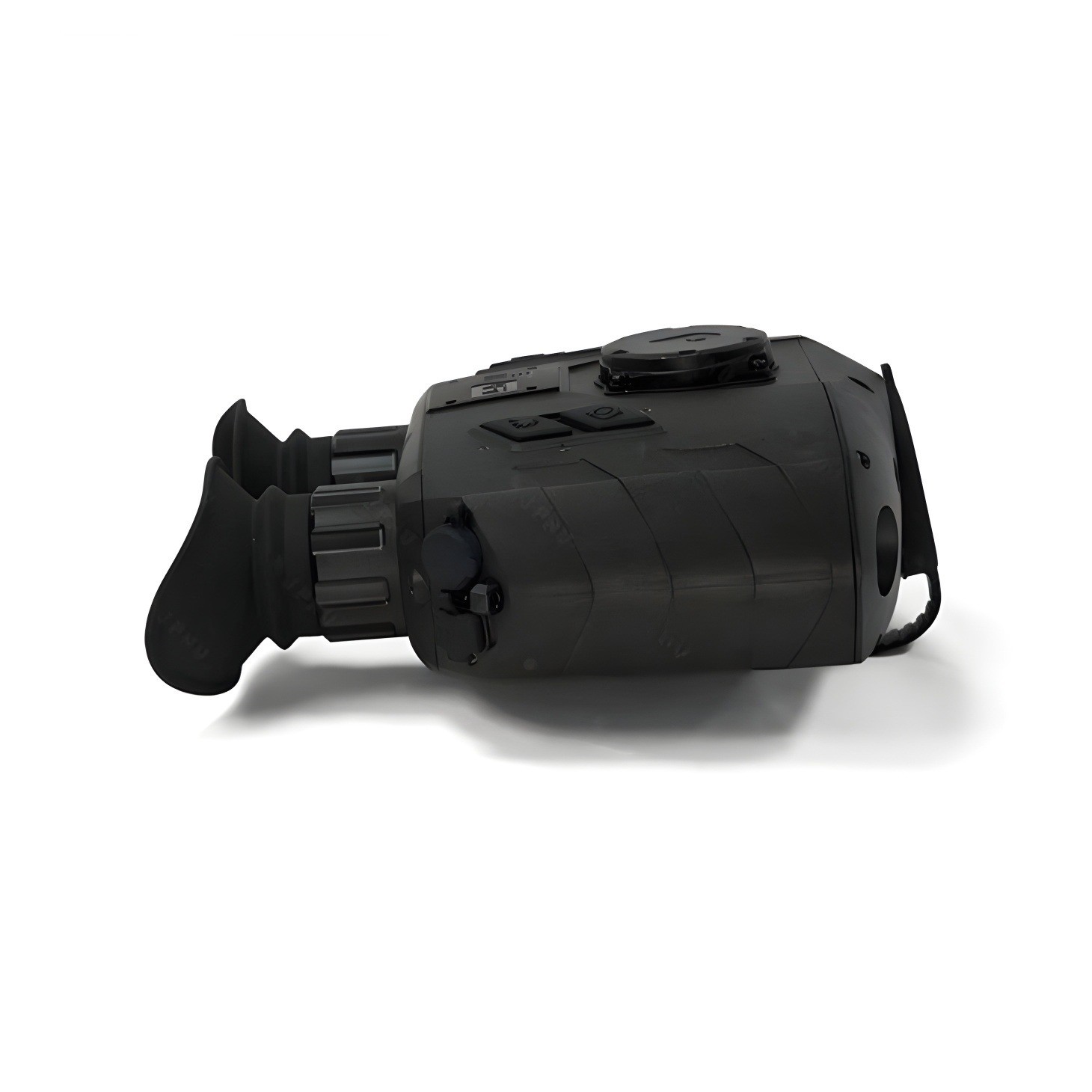

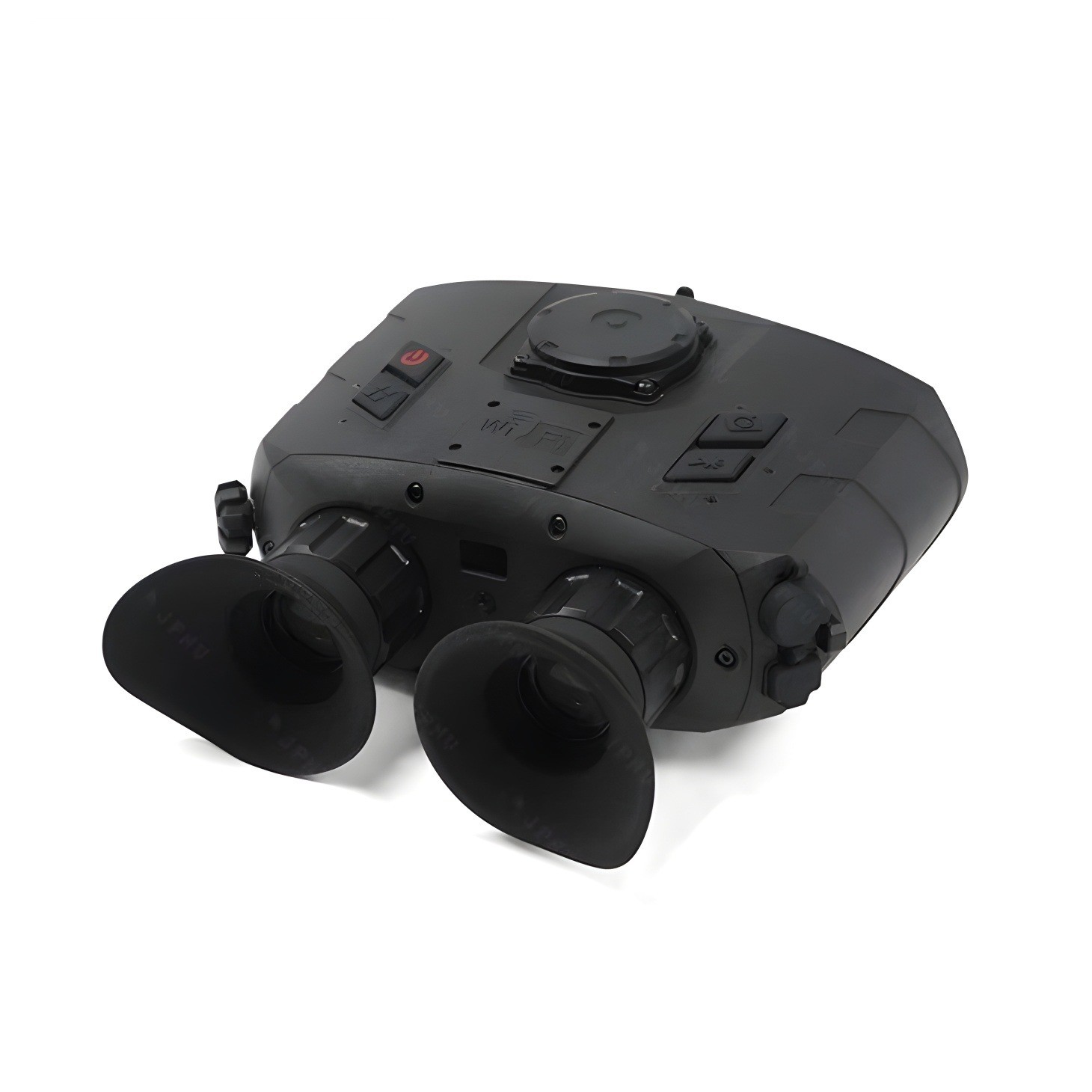

UND-HDB Three Optical Channels HD Binocular
Advanced Multi-Spectral Imaging System
The UND-HDB Three Optical Channels HD Binocular combines high-definition thermal imaging, color day vision, and targeting capabilities in a lightweight, rugged package. This professional-grade optical system delivers exceptional performance across diverse operational environments.
Key Features

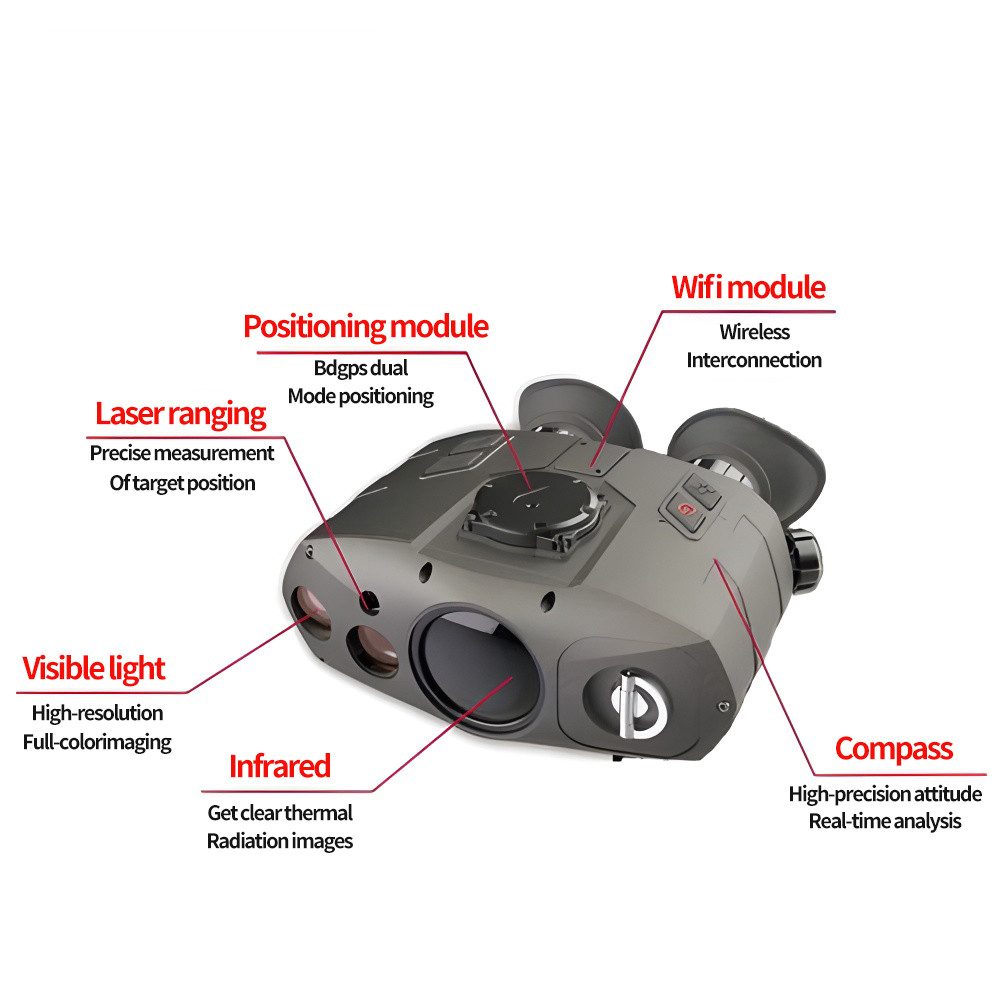

- Triple imaging capability: HD thermal, color day vision, and targeting positioning
- High-resolution sensors: 5MP visible light and 800,000-pixel infrared
- Integrated positioning: BD+GPS with 5m horizontal accuracy
- Precision measurement: Laser rangefinder (3km range) and digital compass
- Compact design: Lightweight (1.1kg) with 7+ hour battery life
- Rugged construction: IP67 rated for harsh environments (-55℃ to +70℃)
Technical Specifications
| Imaging Channels | |
|---|---|
| Thermal Imaging Channel | 1024x768 detector, 8-14μm spectral band, 15.5°x11.6 FOV |
| Color Day Channel | 2592x1944 detector, 0.4-0.63μm spectral band, 13.3x10.0° FOV |
| Measurement Systems | |
| Laser Rangefinder | 1535nm eye-safe, ≥3km range, 2m accuracy |
| Positioning Module | BD+GPS with 5m horizontal/10m elevation accuracy |
| Digital Compass | 0.2° azimuth, 0.4° pitch, 0.5° inclination accuracy |
| Physical Specifications | |
| Dimensions | 143x164x73 mm |
| Weight | ≤1.1kg (with battery) |
| Battery Life | ≥7 hours continuous operation |
| Environmental | IP67, -55℃ to +70℃ storage, -40℃ to +55℃ operating |
Operational Performance
| Target Type | Detection Range | Recognition Range | Identification Range |
|---|---|---|---|
| Human (1.7mx0.5m) | 2000m (thermal), 3000m (day) | 1000m (both) | 500m (both) |
| Vehicle (2.3mx2.3m) | 3000m (thermal), 4000m (day) | 1400m (thermal), 2000m (day) | 700m (thermal), 800m (day) |
The UND-HDB is engineered for professional applications including security operations, maritime navigation, scientific research, and special missions. Its combination of advanced imaging technologies, precise measurement capabilities, and rugged design make it an indispensable tool for critical observation requirements.
