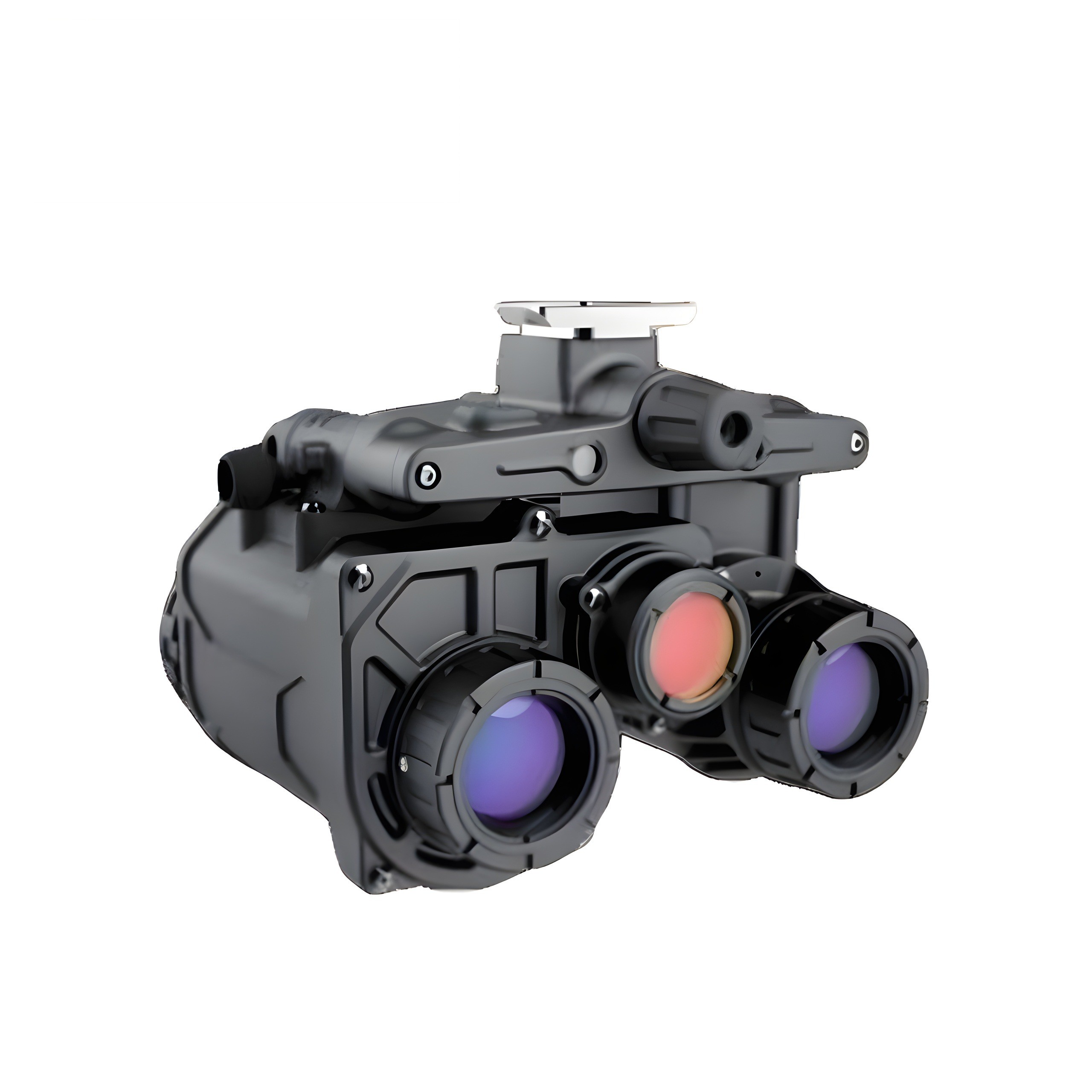

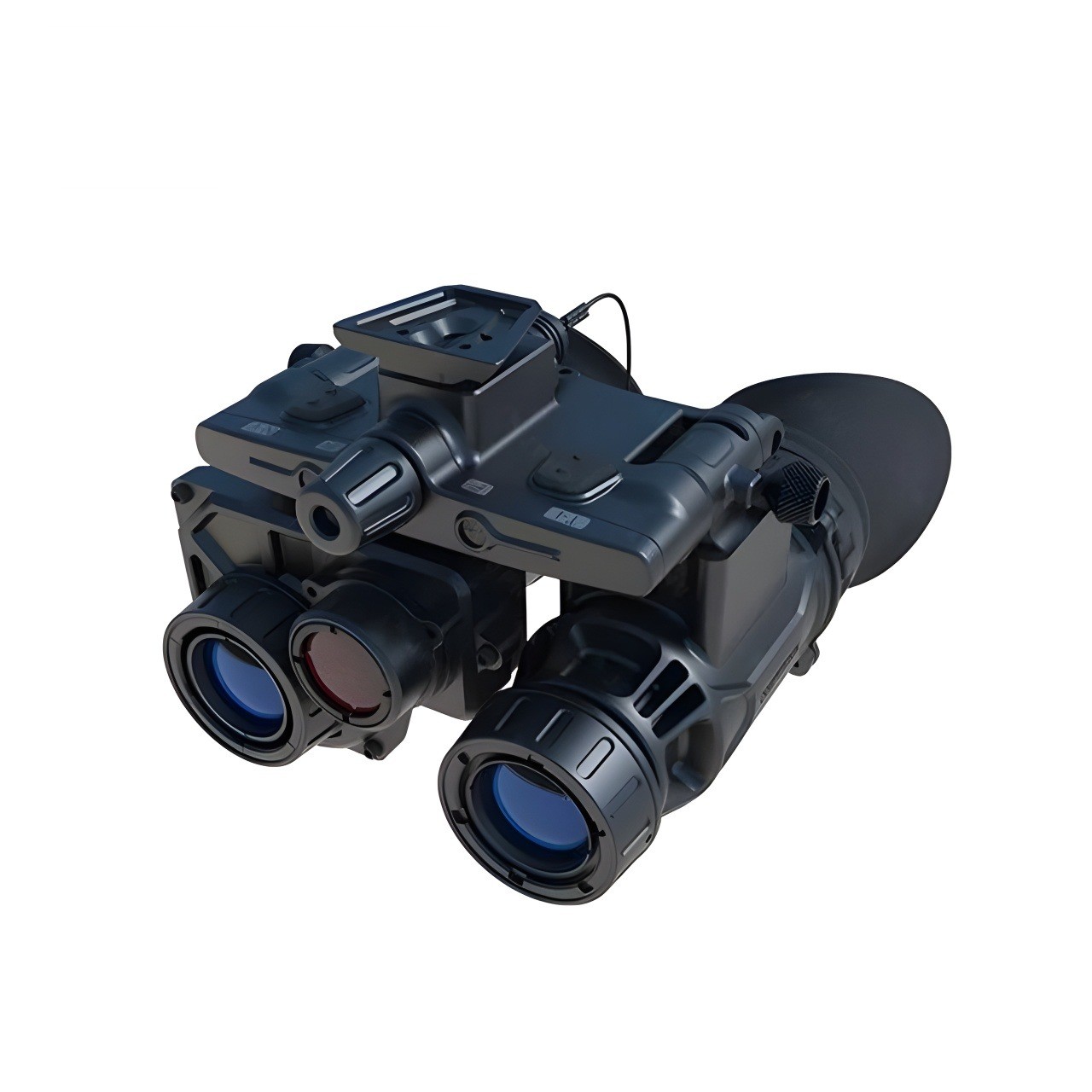

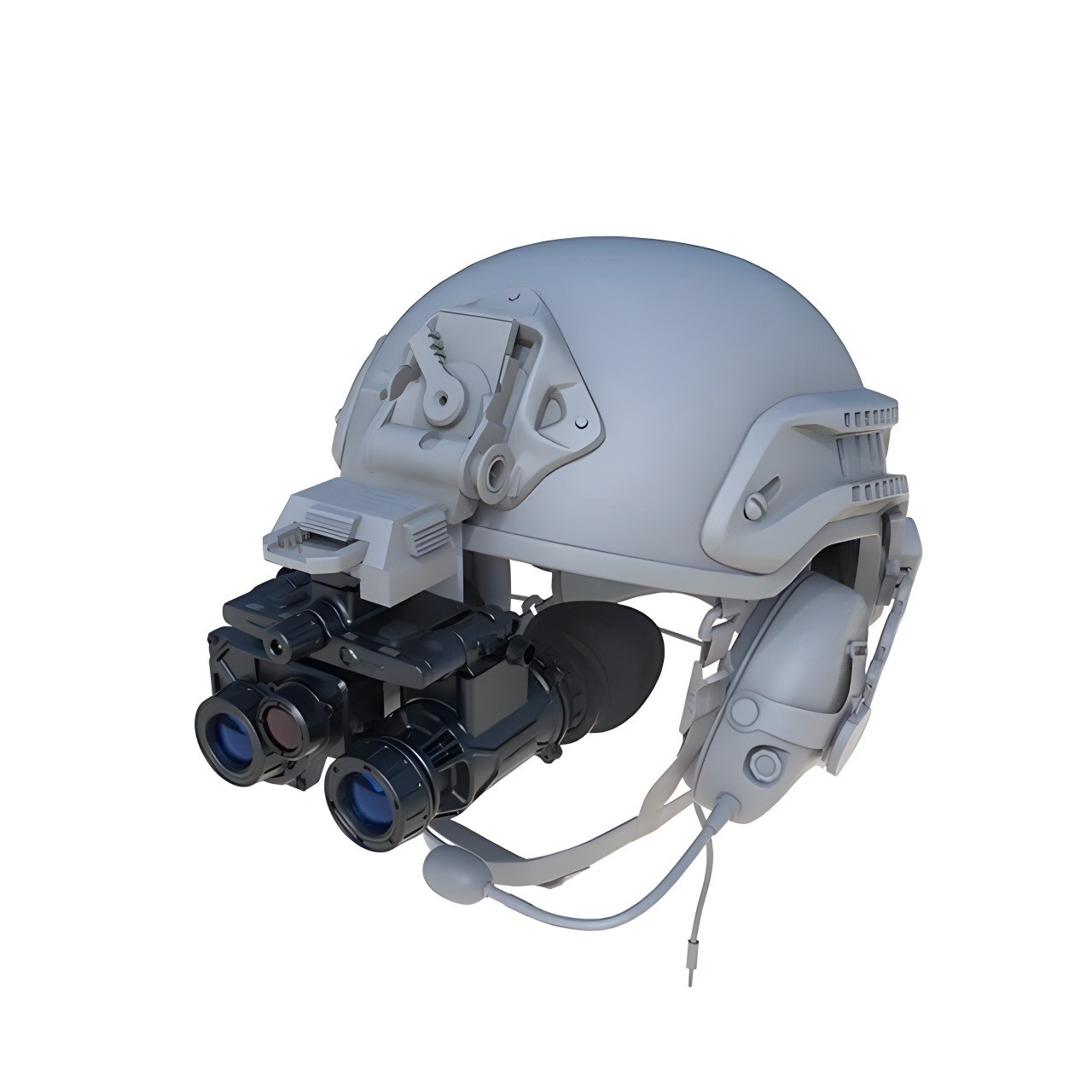

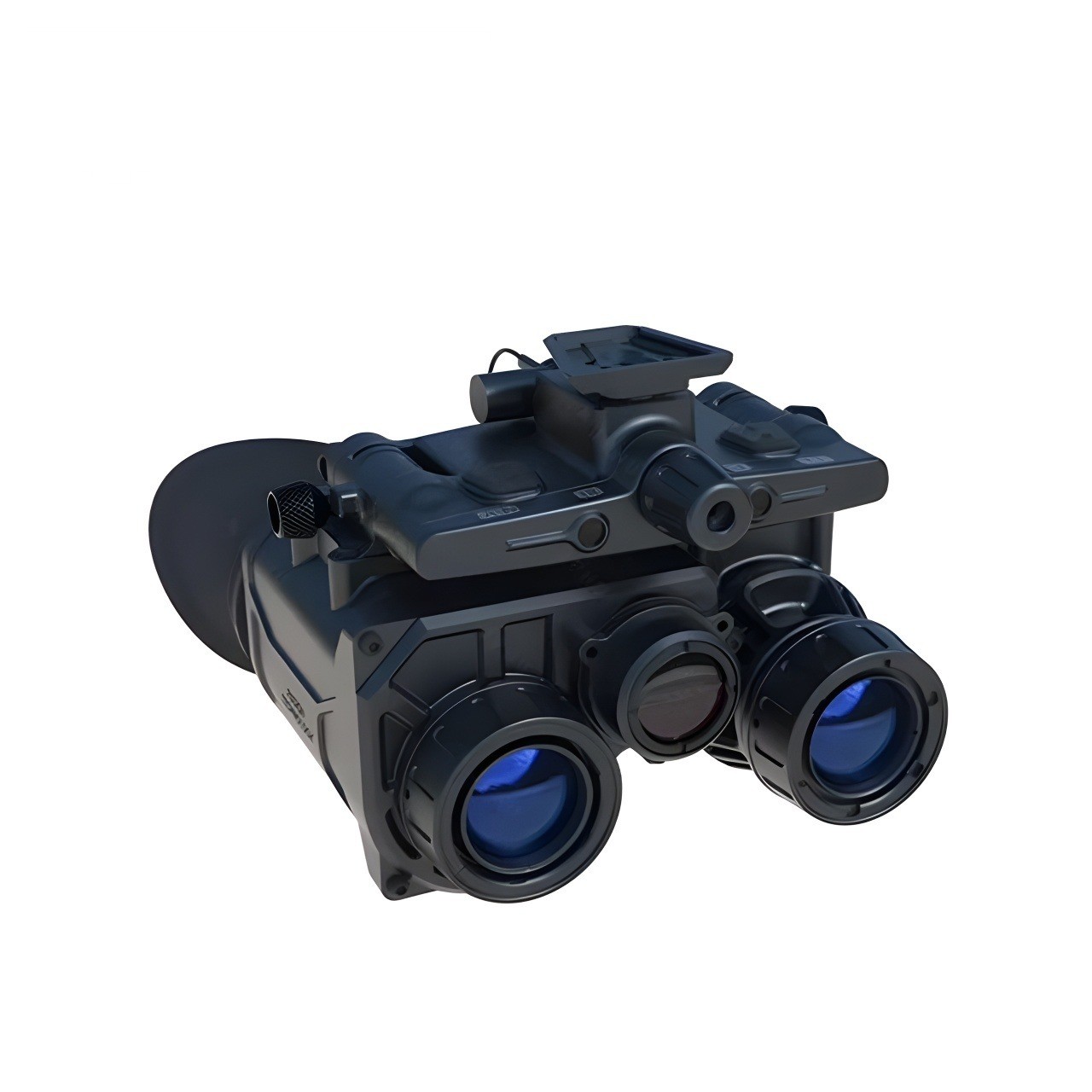

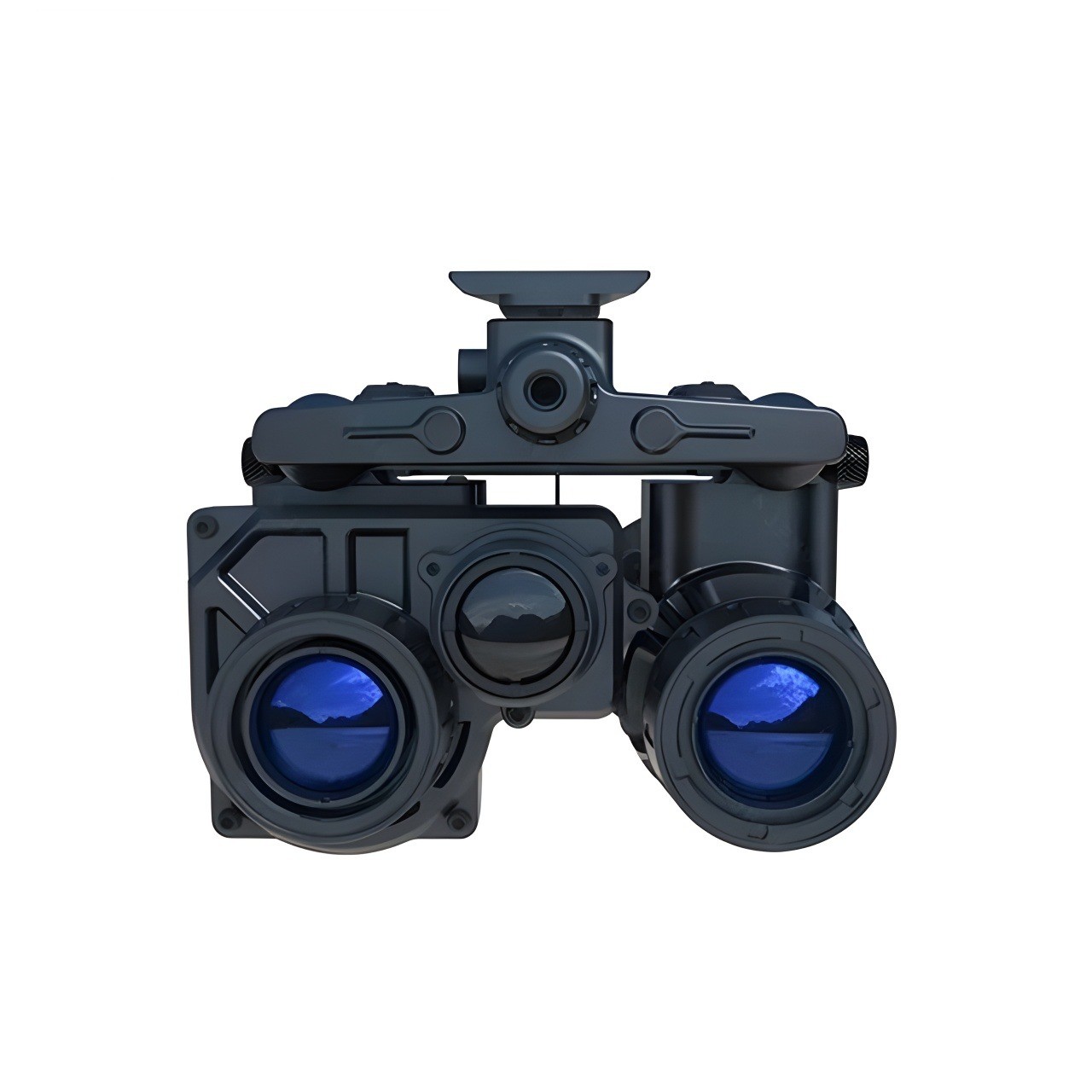

400m 12um Night Vision Goggle Fusion Quick Target Acquisition Goggles Nightvision Scope
UND-F1 Enhanced Night Vision Goggle Fusion Goggles
Thermal imaging fusion night vision goggles with rapid target acquisition capability, designed for professional use in low-light conditions.
Technical Specifications
Optical Specifications
| Magnification | 1X |
| Infrared Focal Length | 16mm |
| Focal Length Range | 25cm ~+∞ |
| FOV | 40° |
| Infrared FoV | 25.9"×20.9" |
| Eye Relief | 25mm |
| Diopter | -4~+2 |
Performance Specifications
| Image Intensifier | Gen2+/Gen3 |
| Infrared Thermal Imaging | 640×512-12μm |
| Display Mode | White-hot / Highlight / Outline |
Advanced Features
- Rapid Target Acquisition Support
- Induction Information Display
- Up-Turning Shutdown Support
- IPD Adjustment
- Positioning Navigation Support
- Bluetooth Control Support
Physical Specifications
| Dimensions (mm) | 107×115×85 |
| Weight | 525g (goggles) / 320g (battery+cables) |
| Battery Life | 8h (infrared fusion), 100h (P only) |
| Power Supply Type | External Battery |
| Interface Type | L4G24 |
