FOM1400+ FOM1600 18mm Super Gen 2 Night Vision Tube Green White 3 Wire Manual Gain P43 P45 image intensification night vision image intensifier night vision Image Intensifiers
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | FOM1400 gen 2 night vision tube,FOM1600 gen 2 night vision tube,P43 intensifier tube |
||
|---|---|---|---|
Product Description

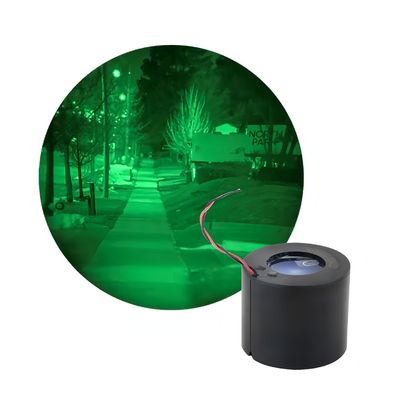

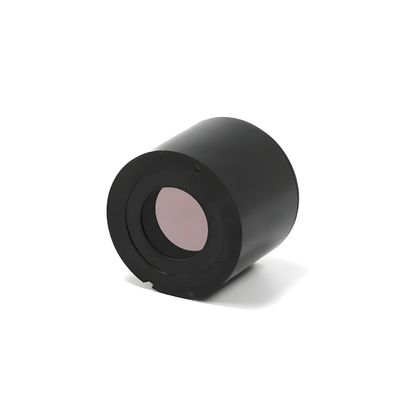

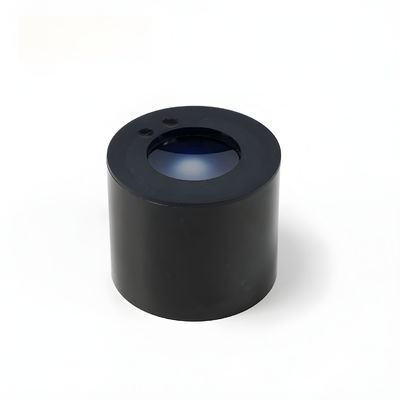

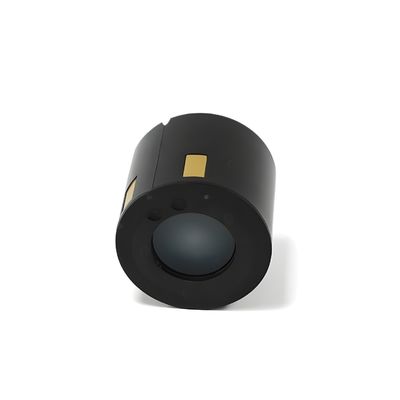

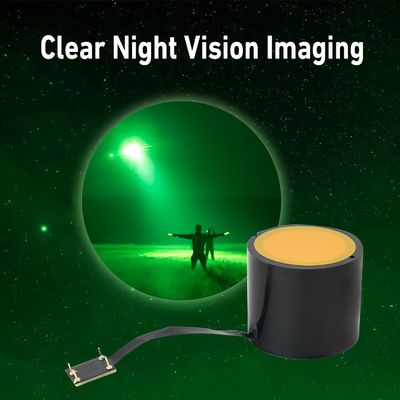

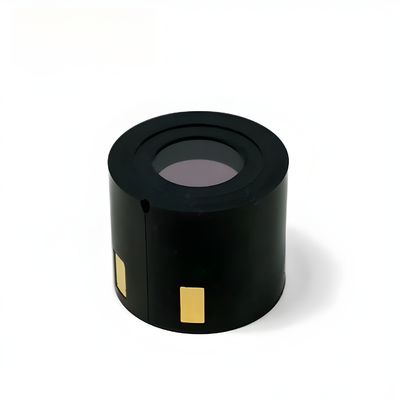

FOM1400+ FOM1600 18mm Super Gen 2 Night Vision Tube
High-Performance Image Intensifier Tube
The UND-FOM1400+ 18mm Super Gen2+ Image Intensifier Tube delivers exceptional night vision performance with FOM1400-1600 rating, available in both Green & White phosphor options (P43/P45). Features 3-wire manual gain control for precise operation.
Technical Specifications
| Parameter | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
|---|---|---|---|---|
| Sensitivity (μA/lm) | 700+ | 750+1850+ | 1000+ | 1000+ |
| SNR | 23+ | 25+ | 28+ | 28+ |
| Resolution (lp/mm) | 64+ | 64+ | 64-72 | 64-72 |
| Photo Cathode | S25* | S25* | S25R | S25R |
| Operating voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 |
| Luminance gain (cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 |
| EBI (μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Cathode diameter (mm) | ≥17.5 | ≥17.5 | 17.5 | ≥17.5 |
| Fluorescent powder | P22/P43/P45 | P43/P45 | P431P45 | P43/P45 |
| Weight (g) | 80 | 80 | ≤80 | ≤80 |
Key Features
18mm Super Gen2+ image intensifier technology
Available in both green (P43) and white (P45) phosphor options
3-wire manual gain control for precise adjustment
High sensitivity photocathode (S25/S25R)
Compact and lightweight design (≤80g)
Compatible with MX10160/MX10160 3PIN systems
