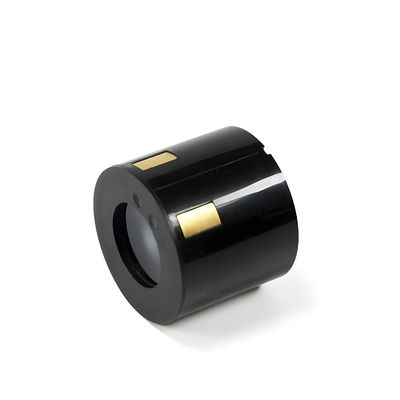

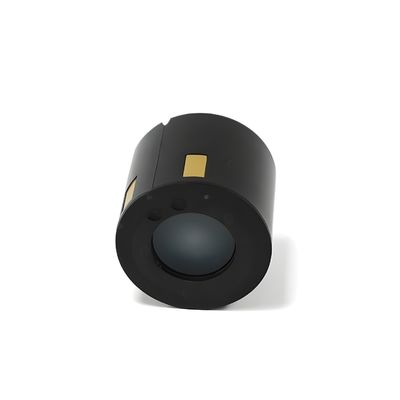

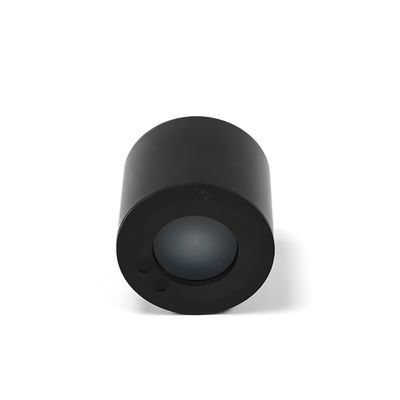

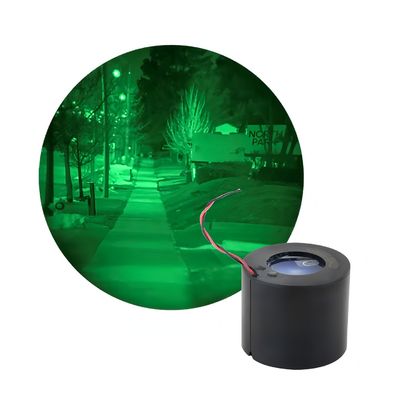

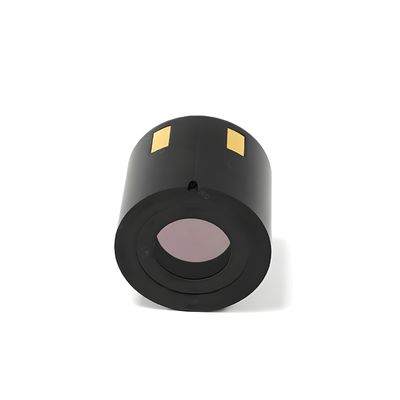

MX10130 FOM2000+ 18mm Gen2+ Night Vision Image Intensifier Tube
Technical Specifications
| Parameter | FOM 1400+ | FOM 1600+ | FOM 1800+ | FOM 2000+ |
|---|---|---|---|---|
| Sensitivity (μA/lm) | 700+ | 750+1850+ | 1000+ | 1000+ |
| SNR | 23+ | 25+ | 28+ | 28+ |
| Resolution (lp/mm) | 64+ | 64+ | 64-72 | 64-72 |
| Photo Cathode | S25* | S25* | S25R | S25R |
| Operating voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 |
| Operating current (mA) | 15 | 25 | 25 | 25 |
| Luminance gain (cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 |
| Maximum output brightness (cd/m²) | 4~8 | 4~8 | 4~10 | 4~10 |
| EBI (μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Working illumination range (lx) | / | 1×10°~5×10 | 1×10*~5×10 | 1×10‰~5×10 |
| Uniformity of luminance (2856K) | 3:1 | 3:1 | 3:1 | 3:1 |
| Cathode effective diameter (mm) | ≥17.5 | ≥17.5 | 17.5 | ≥17.5 |
| Power supply | Non Auto gate7Auto-gate | Non Auto gate7Auto-gate | Auto-gate | Auto-gate |
| Fluorescent powder | P22/P43/P45 | P43/P45 | P431P45 | P43/P45 |
| Weight (g) | 80 | 80 | ≤80 | ≤80 |
| Power dissipation (mW) | 33-51 | 55-85 | 55-85 | 55-85 |
Key Features
- Autogating technology for optimal performance
- High-performance Gen2+ image intensification
- 18mm format for versatile applications
- Multiple FOM configurations available
- Superior sensitivity and signal-to-noise ratio
