Product Description

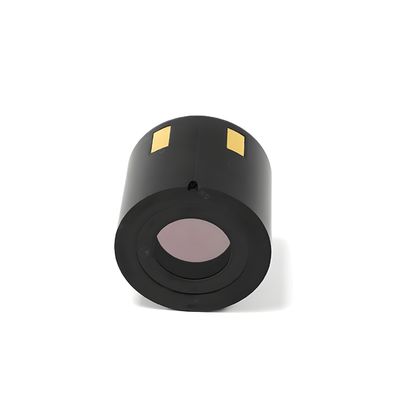

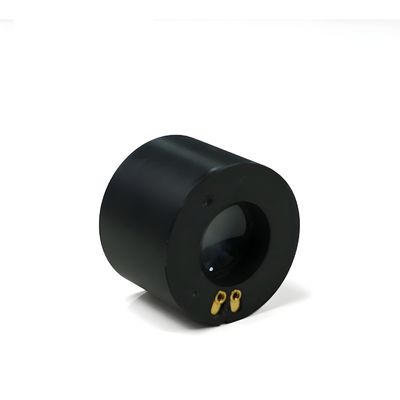

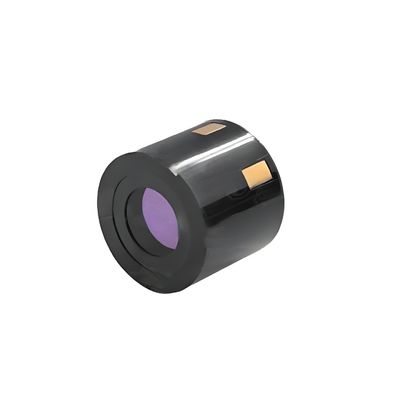

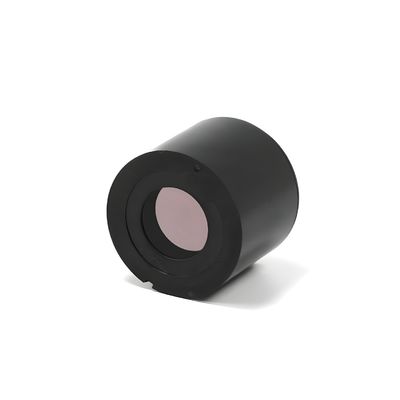

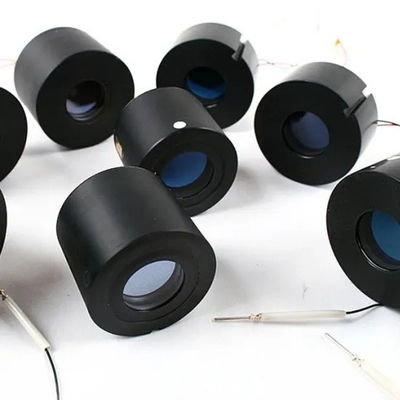

MX10160 ANVIS NVT7 PVS 14 Intensifier Tube - MX11769 Gen 2 Image Intensifier
High-Performance Night Vision Image Intensifier
The MX10160 Small ANVIS NVT7 FOM1800+ Super Gen2+ Image Intensifier Tube delivers exceptional night vision capabilities for PVS-14 and PVS-31 systems. This auto-gating intensifier tube provides superior performance in low-light conditions.
Technical Specifications
| Parameter | FOM 1400+ | FOM 1600+ | FOM 1800+ | FOM 2000+ |
|---|---|---|---|---|
| Sensitivity (μA/lm) | 700+ | 750+1850+ | 1000+ | 1000+ |
| SNR | 23+ | 25+ | 28+ | 28+ |
| Resolution (lp/mm) | 64+ | 64+ | 64-72 | 64-72 |
| Photo Cathode | S25* | S25* | S25R | S25R |
| Operating Voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 |
| Luminance Gain (cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 |
| Maximum Output Brightness (cd/m²) | 4~8 | 4~8 | 4~10 | 4~10 |
| EBI (μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Weight (g) | 80 | 80 | ≤80 | ≤80 |
Key Features
- Auto-gating technology for optimal performance in varying light conditions
- High FOM ratings from 1400+ to 2000+ for superior image quality
- Advanced S25R photocathode in higher models for enhanced sensitivity
- Compact and lightweight design at ≤80g
- Multiple phosphor options including P43/P45 for different operational needs
