MX10130 64lp/Mm - 72lp/Mm Image Intensifier Tube Pvs14 Image Intensifier image intensification night vision image intensifier night vision Image Intensifiers
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 64lp/Mm image intensifier tube,Pvs14 Image Intensifier,MX10130 |
||
|---|---|---|---|
Product Description

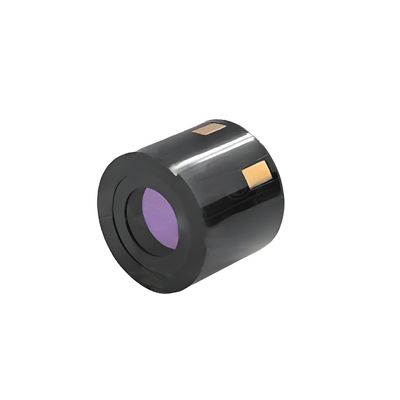

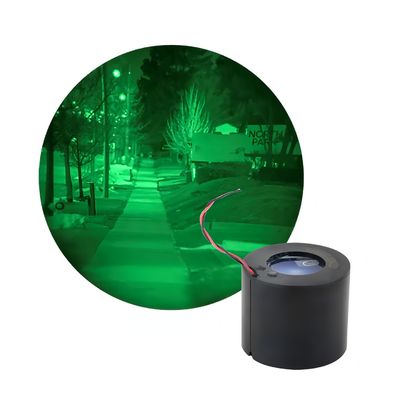

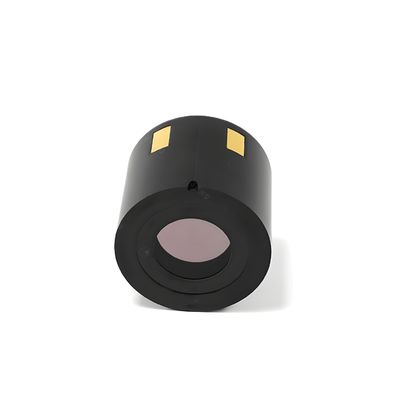

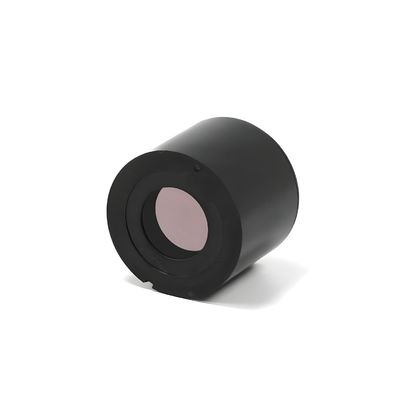

MX10130 Autogating FOM2000+ 18mm Gen2+ Night Vision Image Intensifier Tube
MX10130 Autogating FOM2000+ 18mm Gen2+ Night Vision image intensifier tube pvs 14 Fat ANVIS 43mm P45 PVS7
| FOM | 1400+ | 1600+ | 1800+ | 2000+ | |||||
| Sensitivity(μA/lm) | 700+ | 750+1850+ | 1000+ | 1000+ | |||||
| SNR | 23+ | 25+ | 28+ | 28+ | |||||
| Resolution(lp/mm) | 64+ | 64+ | 64-72 | 64-72 | |||||
| Photo Cathode | S25* | S25* | S25R | S25R | |||||
| Operating voltage(V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | |||||
| Operating current(mA) | 15 | 25 | 25 | 25 | |||||
| Luminance gain(cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 | |||||
| Maximum output brightness(cd/m²) | 4~8 | 4~8 | 4~10 | 4~10 | |||||
| EBI(μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | |||||
| Working illumination range(lx) | / | 1×10°~5×10 | 1×10*~5×10 | 1×10‰~5×10 | |||||
| Uniformity of luminance(2856K) | 3:1 | 3:1 | 3:1 | 3:1 | |||||
| Cathode effective diameter(mm) | ≥17.5 | ≥17.5 | 17.5 | ≥17.5 | |||||
| Power supply | Non Auto gate7Auto-gate | Non Auto gate7Auto-gate | Auto-gate | Auto-gate | |||||
| Fluorescent powder | P22/P43/P45 | P43/P45 | P431P45 | P43/P45 | |||||
| Weight(g) | 80 | 80 | ≤80 | ≤80 | |||||
| Power dissipation(mW) | 33-51 | 55-85 | 55-85 | 55-85 | |||||
