380m - 900m Night Vision Intensifier Tube PVS 31 Gen3 GaAs FOM1800+
Premium Green Image Intensification Technology
The Gen3 GaAs Image Intensifier Tube delivers exceptional night vision performance with FOM ≥1800, available in both 16mm and 18mm tube configurations with green or white phosphor options.
Key Features
- FOM ≥1800 for superior image quality and detail recognition
- Advanced Gallium Arsenide Photocathode technology
- Wide spectral response range (380-900nm)
- Auto-Gating Control for dynamic lighting conditions
- Available in P43/P45 phosphor options
- Compatible with PVS14, PVS31, and GPNVG systems
Technical Specifications
| Parameter | Gen2+ | Gen3 | Unit |
|---|---|---|---|
| FOM | 1200-2000 | 1900-2300 | / |
| Resolution | 45-70 | 64-72 | lp/mm |
| Signal-To-Noise Ratio | 18-33 | 28-31 | / |
| Sensitivity 2856K | 500-750 | 1000min | uA/lm |
| Luminance Gain | 8000-12000 | 14000min | / |
| EBI | 0.25 | 0.25 | ulm |
| Maximum Output Brightness | 4-8 | 4-10 | cd/m² |
| Operating Voltage | 2.2-3.4 | 2.2-3.4 | V |
| Operating Current | 25 | 35 | mA |
| Photocathode Diameter (min) | 17.5 | 17.5 | mm |

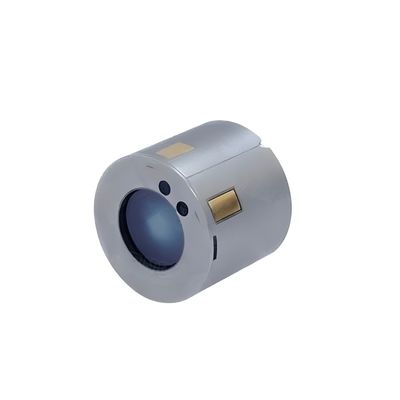

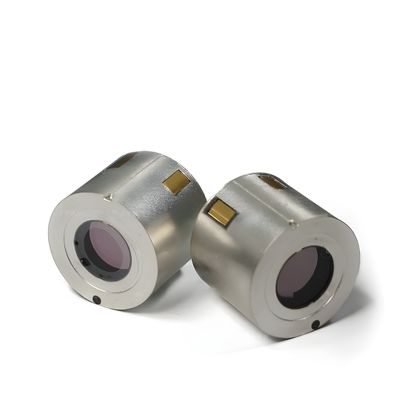

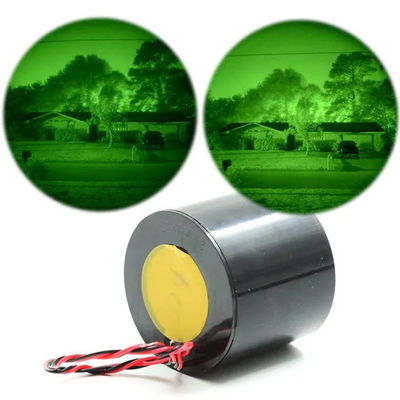

Product Images
Advanced Technology
The FOM 1800 Image Intensifier Tube incorporates new MCP processing technology and photocathode production processes, offering high reliability and resolution for all-day operation. With FOM not less than 1800, it provides enhanced detail recognition at night and a wider dynamic range. The integrated automatic gating power supply protects the intensifier from damage in dynamic lighting conditions.
