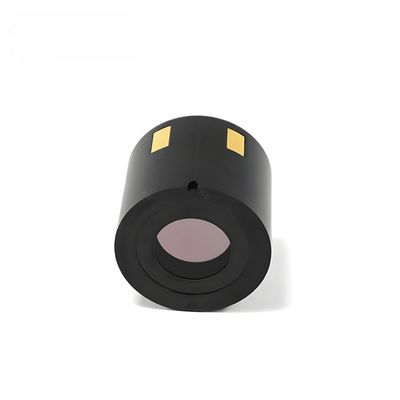

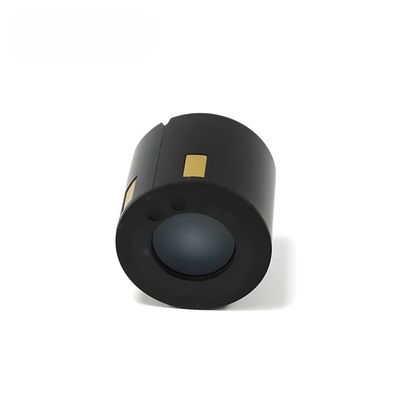

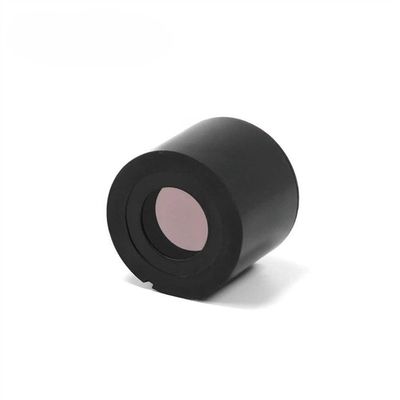

Autogating P43/P45 Image Intensifier Tube - MX10160 3PIN for PVS-14 Night Vision
The UND-FOM1400+ Autogating Image Intensifier Tube delivers exceptional night vision performance with P43/P45 phosphor options. Designed for MX10160/MX10160 3PIN configurations, this high-performance tube is ideal for PVS-14 night vision systems.
Key Specifications
| Parameter | FOM 1400+ | FOM 1600+ | FOM 1800+ | FOM 2000+ |
|---|---|---|---|---|
| Sensitivity (μA/lm) | 700+ | 750+1850+ | 1000+ | 1000+ |
| SNR | 23+ | 25+ | 28+ | 28+ |
| Resolution (lp/mm) | 64+ | 64+ | 64-72 | 64-72 |
| Photo Cathode | S25* | S25* | S25R | S25R |
| Operating Voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 |
| Luminance Gain (cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 |
| EBI (μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Cathode Diameter (mm) | ≥17.5 | ≥17.5 | 17.5 | ≥17.5 |
| Fluorescent Powder | P22/P43/P45 | P43/P45 | P431P45 | P43/P45 |
| Weight (g) | 80 | 80 | ≤80 | ≤80 |
Technical Features
Autogating technology for optimal performance in varying light conditions
Multiple FOM (Figure of Merit) options available
High sensitivity photocathode with S25/S25R technology
Compact and lightweight design (≤80g)
Compatible with P43/P45 phosphor screens
Low power consumption (33-85mW)
