500 Meters 40mmLauncher Black Low Light Sight
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 500 meters launcher,40mm launcher,black low light sight |
||
|---|---|---|---|
Product Description

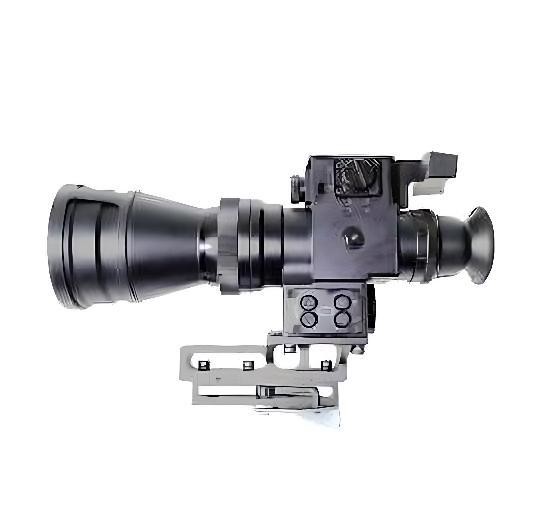

RLS01 40mm Launcher Low-Light Sight
Product Overview

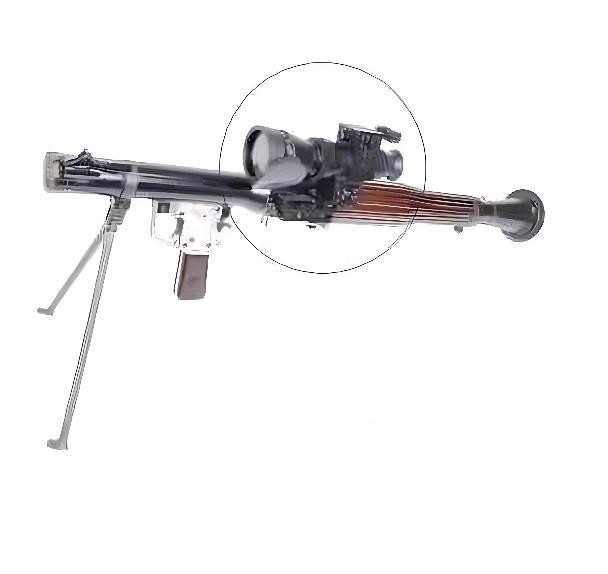

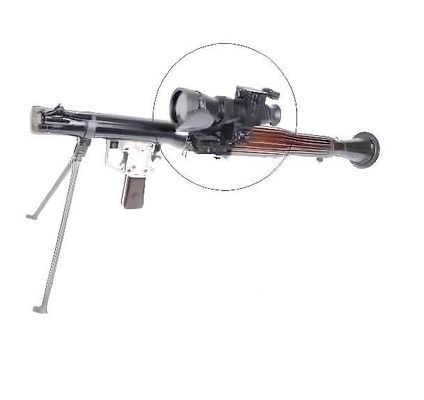

The RLS01 40mm launcher low-light sight is primarily designed for RPG7 40mm launchers for nighttime operations. This precision optical device provides accurate shooting angles and directional guidance through its internal scale system, enabling effective targeting of enemy tanks and armored fortifications at ranges between 100 to 500 meters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Magnification | 4x |
| Field of View | 10° |
| Exit Pupil Diameter | 5mm |
| Exit Pupil Distance | 20mm |
| Resolution |
<1.7" (85-90% contrast, 1/10Lx illumination) <3.4" (35-40% contrast, 1/1000Lx illumination) |
| Zero Position Accuracy | ≤0.7mil |
| Zero Adjustment Range | ±12mil |
| Dimensions | 235mm × 75mm × 166mm |
| Continuous Working Time | >30 hours |
Operational Capabilities
This low-light sight enables precise direct aiming against armored targets and fortified positions within its effective range. The optical system maintains high performance across varying light conditions, ensuring operational readiness during extended nighttime engagements.
