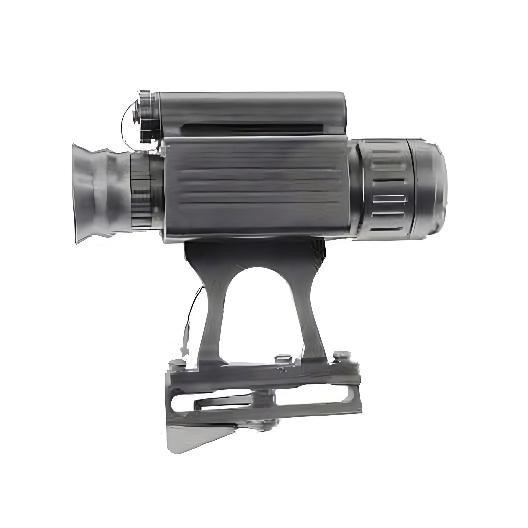

22mm 600m Scope Launcher Infrared Sight
RTS01 40 Launcher Infrared Sight
Product Introduction

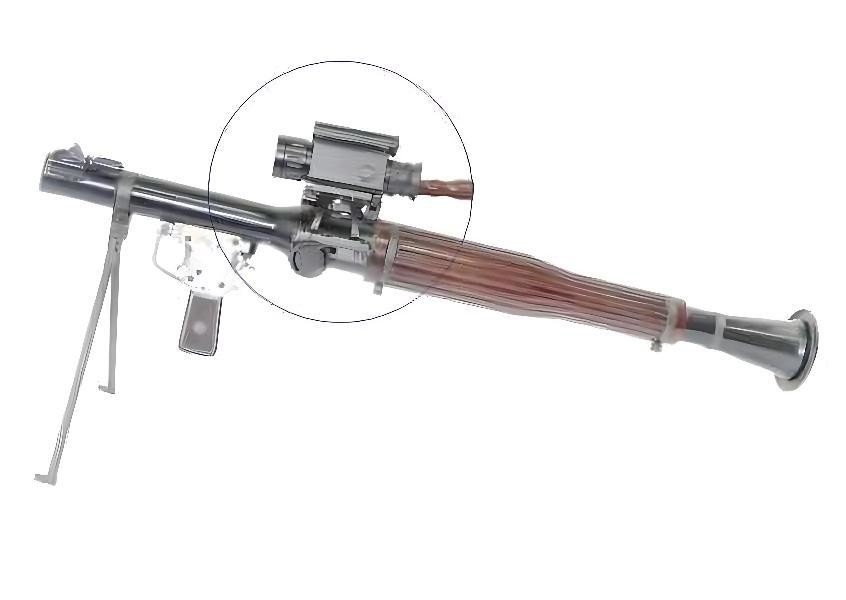

This infrared sight is primarily designed for RPG7 40mm launchers. It features compact dimensions, high precision, and user-friendly operation, making it ideal for nighttime operations. The electronic reticle enables multiple bullet trajectories in a single view and can also function as a night observation device.
Performance Specifications
Effective range (under conditions of atmospheric visibility ≥10km, humidity ≤65%, and target-to-background temperature difference ≥6℃):
- Detection distance for standard targets (2.3m×2.3m): >1000m
- Recognition distance for standard targets: >600m
- Detection distance for standing personnel: >600m
- Recognition distance for standing personnel: >400m
| Product Name | RTS01 40 Launcher Infrared Sight |
|---|---|
| Field of View | 10° × 8° |
| Exit Pupil Diameter | 22mm |
| Vision Adjustment | -4D to +2D |
| Reticle Adjustment Range | ≥15mil |
| Reticle Adjustment Accuracy | ≤0.25mil |
| Power Source | 1 × 18650 Battery |
| Battery Life | ≥4 hours |
| Operating Temperature | -40°C to +50°C |
