Ultra Far Vision Night Sight Scope Reticle Ranging Middle Infrared Thermal Scopes
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | far vision night sight scope,night sight scope reticle ranging,far vision infrared thermal scopes |
||
|---|---|---|---|
Product Description

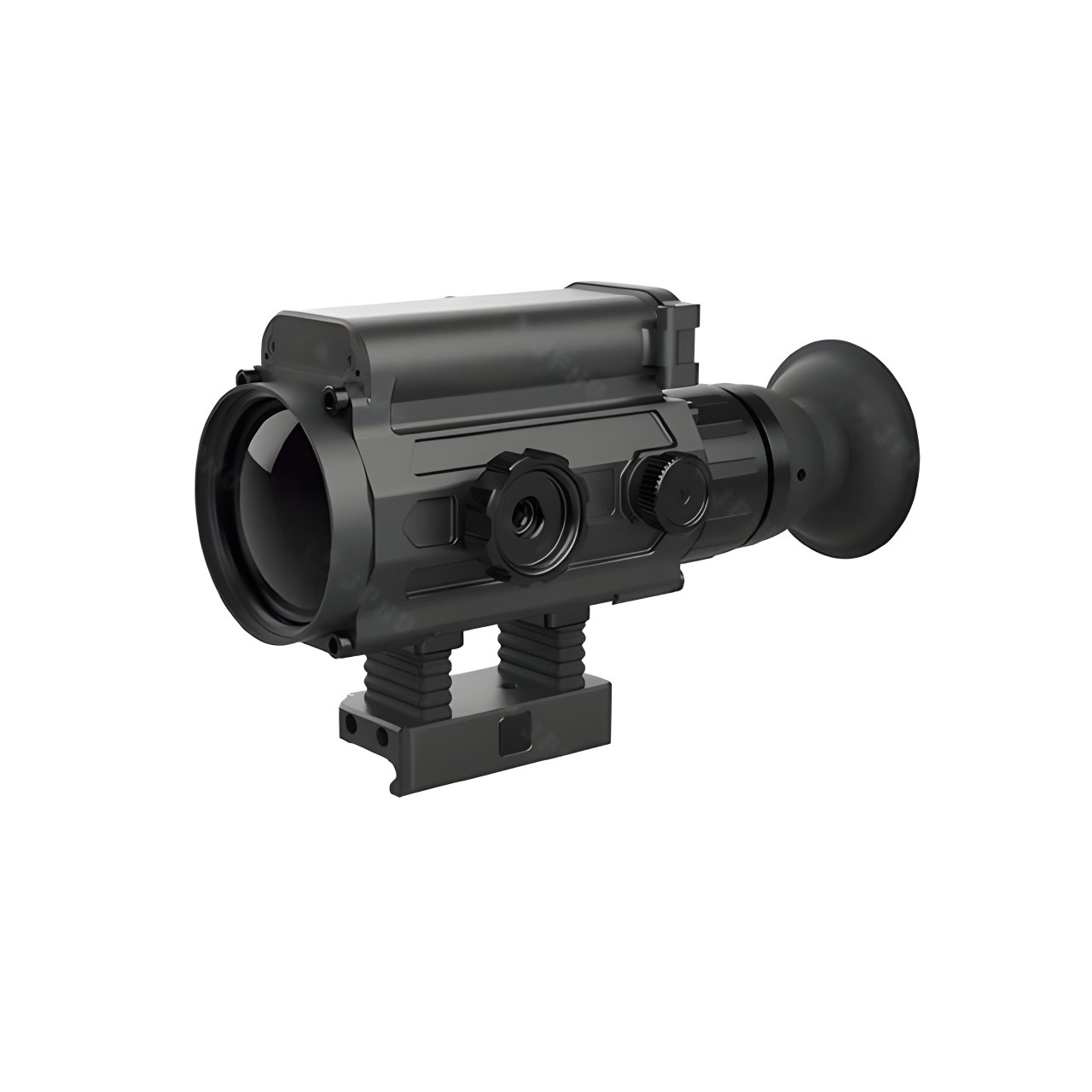

UNDA-M Series Middle-Type Thermal Scope
The UNDA-M Series is a professional-grade thermal imaging scope offering exceptional performance for surveillance, hunting, and industrial applications. Designed for reliability in challenging environments, it combines advanced thermal imaging technology with rugged construction.
Key Features
- High-resolution imaging: 640×512 detector with 45mm lens
- Extended detection range: Up to 6000m for human targets
- Durable construction: IP67 waterproof and dustproof rating
- Wireless capability: Integrated WiFi for image transmission
- All-weather operation: Functions from -40℃ to +55℃
- Long battery life: ≥20 hours with 2×18650 batteries
Technical Specifications
| Item | Mid Type | Heavy Type |
|---|---|---|
| Model | UNDA-M3 | UNDA-M6 | UNDA-H6 |
| Module | 384×288 | 640×512 |
| Spectral Band | 8-14μm | |
| Focal length | 45mm | 90mm |
| FOV | 8.3°×6.2° | 9.8°×7.8° | 4.9°×3.9° |
| Screen | 0.38' OLED 800×600 | 0.5' OLED 800×600 |
| Power Supply | 2×18650 | |
| Weight (with battery) | ≤0.7kg | ≤0.9kg |
| Dimensions (mm) | 181×73.5×105 | 215×100.5×105 |
| Human Target Detection (1.7m×0.5m) | Identification: 400m Recognition: 750m Detection: 3000m |
Identification: 600m-1100m Recognition: 1200m-2000m Detection: 4000m-6000m |
| Vehicle Target Detection (2.3m×2.3m) | Identification: 500m Recognition: 1000m Detection: 4000m |
Identification: 800m-1500m Recognition: 1800m-3000m Detection: 6000m-8000m |
Operational Features
The UNDA-M Series combines advanced thermal imaging with user-friendly operation. The single roller control system simplifies adjustments while the eye cup prevents light leakage for optimal viewing. The device offers:
- Multiple interface options including RS232 and analog video output
- High shock resistance (300g/4Hz to 800g/10Hz)
- Adjustable eyepiece diopter (-5 to +5)
- Comfortable eye relief (30mm to 43mm)
