GS-30C Phased Array Radar with 3km Vehicle Detection 1.5km Pedestrian Detection and ≥90° Azimuth Coverage for Ground Security
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Safety Protection, Anti-drone | Feature | Durable |
|---|---|---|---|
| Type | Signal Detector, Security Protection Products | Security And Protection | Ground Security |
| Detection Range | 3km Vehicle | Azimuth Coverage | ≥90° |
| Pedestrian | 1.5km | Vehicle | 3km |
| Weight | ≤ 5.5kg | ||
| Highlight | 3km Vehicle Detection Phased Array Radar,≥90° Azimuth Coverage Ground Security Radar,1.5km Pedestrian Detection GS-30C Radar |
||
Product Description
UND-GS30C Series Phased Array Radar for Ground Security & Detection for UAVs Security & Protection

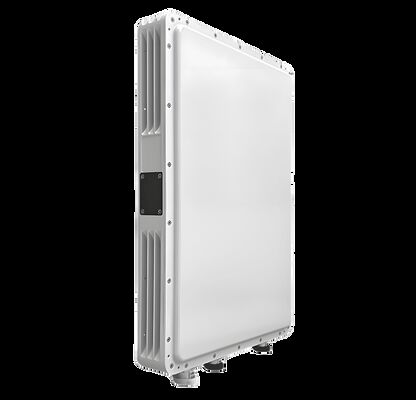

GS-30C Ground Surveillance Radar
The GS-30C radar is primarily composed of a radar array and a power adapter. This active phased array radar utilizes MIMO technology and DBF (Digital Beamforming) for critical area security including borders, perimeters, checkpoints, and military bases. It provides precise detection, surveillance, and target indication for pedestrians and vehicles, with accurate tracking of position, distance, and speed.
Key Features
- Real-Time Monitoring: Continuous environment surveillance with prompt anomaly detection
- Rapid Target Detection: High data refresh rate for stable tracking of fast-moving targets
- Wide Coverage Area: Phased array networking extends surveillance over large areas
- Easy Installation: Convenient setup using existing infrastructure
- All-weather Operation: 24/7 protection in harsh conditions including rain, snow, fog, and haze
Technical Specifications
| Working frequency band | C-Band |
|---|---|
| Pedestrian detection range | 1.5km |
| Vehicle detection range | 3km |
| Work system | Phased array system (azimuth phase sweep)/pulse Doppler |
| Range | 3.2km |
| Effective detection range | 100m ~ 1.5km (pedestrian); 100m ~ 3km (vehicle) |
| Azimuth coverage | ≥ 90° |
| Elevation coverage | ≥ 18° |
| Detection speed | 0.5m/s~30m/s |
| Azimuth accuracy | ≤ 1.0° |
| Distance accuracy | ≤8m |
| Data Rate | ≥ 2Hz |
| Data Interface | RJ45/1 channel 100 Gigabit Ethernet |
| Power Input | ≤ 45W (power consumption) AC220V ~ 240V (input) |
| Working temperature | -40°C ~ 55°C |
| Weight | ≤ 5.5kg |
