xProduct Details
| Highlight | fom1600 thermal imaging,thermal imaging fom1800,700um image intensifier tube |
||
|---|---|---|---|
Product Description

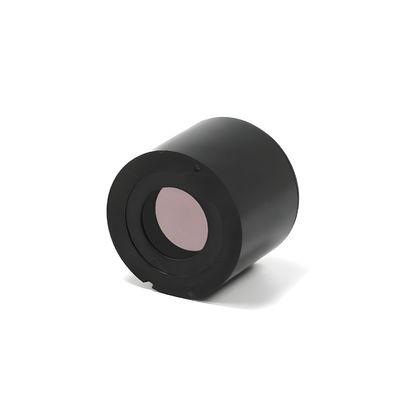

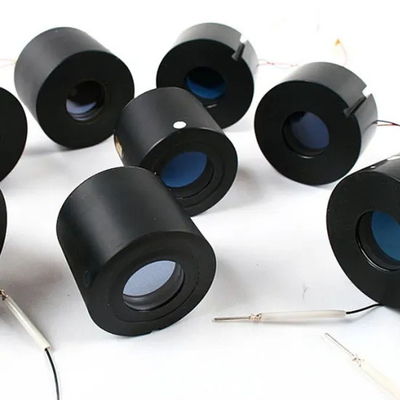

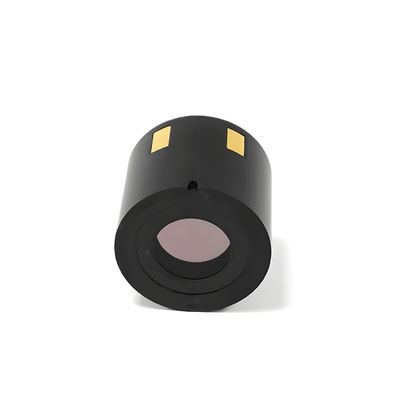

FOM1400 FOM1600 FOM1800 FOM2000+ Image Intensifier Tube
Technical Specifications
| Parameter | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
|---|---|---|---|---|
| Sensitivity (μA/lm) | 700+ | 750+/850+ | 1000+ | 1000+ |
| SNR | 23+ | 25+ | 28+ | 28+ |
| Resolution (lp/mm) | 64+ | 64+ | 64-72 | 64-72 |
| Photo Cathode | S25* | S25* | S25R | S25R |
| Operating Voltage (V) | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 |
| Operating Current (mA) | 15 | 25 | 25 | 25 |
| Luminance Gain (cd/m²/lx) | 8000-12000 | 9000-12000 | 10000-20000 | 10000-20000 |
| Maximum Output Brightness (cd/m²) | 4~8 | 4~8 | 4~10 | 4~10 |
| EBI (μlx) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Working Illumination Range (lx) | / | 1×10‰~5×101 | 1×10∽~5×10² | 1×106~5×101 |
| Uniformity of Luminance (2856K) | 3:1 | 3:1 | 3:1 | 3:1 |
| Cathode Effective Diameter (mm) | ≥17.5 | ≥17.5 | ≥17.5 | ≥17.5 |
| Power Supply | Non Auto-gate/Auto-gate | Non Auto-gate/Auto-gate | Auto-gate | Auto-gate |
| Fluorescent Powder | P22/P43/P45 | P43/P45 | P43/P45 | P43/P45 |
| Weight (g) | ≤80 | ≤80 | ≤80 | ≤80 |
| Power Dissipation (mW) | 33-51 | 55-85 | 55-85 | 55-85 |
Key Features
The FOM series image intensifier tubes provide exceptional performance for night vision applications with:
- High sensitivity ranging from 700μA/lm to 1000μA/lm
- Superior signal-to-noise ratio (SNR) up to 28+
- Advanced S25R photocathode technology in higher models
- Compact and lightweight design (≤80g)
- Multiple fluorescent powder options for different applications
- Auto-gate power supply available for enhanced performance
