xProduct Details
| Type | Security Protection Products | Application | Public Places |
|---|---|---|---|
| Feature | Durable | Spectral Range | 8~14μm |
| Protection Grade | IP66 | Weight | ≤ 35kg(main Unit) |
| Highlight | Electro Optics Anti UAV System,Day Night Anti UAV System,360° Optical Detection Anti UAV System |
||
Product Description

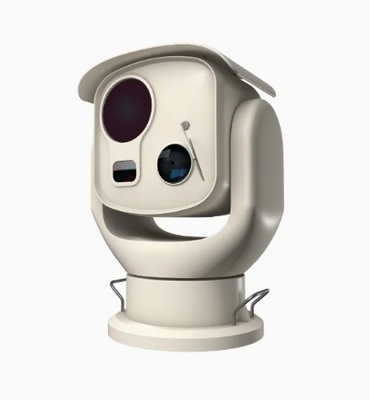

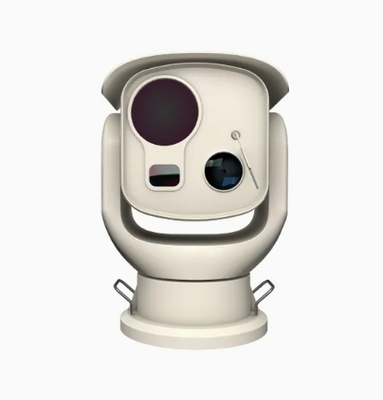

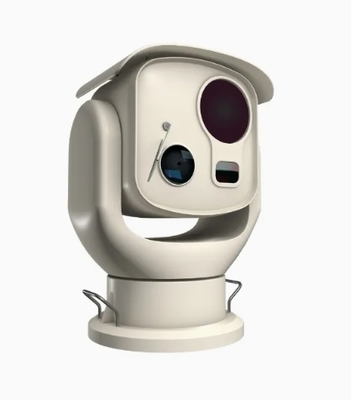

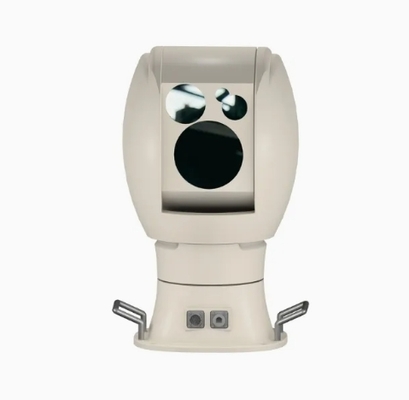

360° Optical Detection Radar Anti-UAV System
Product Description
The unmanned aerial vehicle (UAV) optical detection radar system is designed for detecting "low, slow, small" targets such as drones, birds, and airborne objects. Using electro-optical detectors mounted on a precision turntable, it completes a 360° omnidirectional search and detection to discover targets, outputting information such as target identification and position. The system also performs automatic tracking and measurement of selected targets, providing precise location information. The system is equipped with a scanning-type long-wave non-cooled infrared thermal imager, visible light camera, laser rangefinder, and servo turntable. It can output panoramic infrared images, gaze-tracking visible light images, and provide information on target azimuth, elevation, and distance. The system is also equipped with an AI-based image processor, enabling target search and detection, tracking and recognition, and panoramic image display
Product Feature
1. Multi-band fusion and intelligent detection
2. High measurement accuracy
3. Accurate target detection and recognition in complex backgrounds
4. Strong anti-interference and survival capabilities
Product Parameters
| General Specifcations | ||
| Detect | Search and Detect Range | Height ≤ 1000m; Distance ≥ 2000m |
| Detect Range | IR≥2km | |
| DJI Phantom | EO≥5km | |
| Laser Rangefinder≥2km(optional) | ||
| Detect Range airborne | IR≥500m | |
| objects and birds | EO≥700m | |
| Search | Search Range | Azimuth Angle: N × 360° |
| Elevation Angle: -10° to +70° (0° = horizontal) | ||
| Speed | ≥ 3 s/rotation | |
| Measuring Accuracy | Azimuth: ≤ 0.5°;Elevation: ≤ 0.5° | |
| Search Target Detection Precision Accuracy | ≤ ±1 pixel | |
| Multi-Target Detection Capability | ≥ 30 targets | |
| Recognition | Tracking Measurement Accuracy | Azimuth: ≤ 0.05°;Elevation: ≤ 0.05° |
| and Tracking | Tracking Precision | ≤ ±1 pixel |
| Anti-Jamming Tracking Time | ≥ 3 s | |
| Recognition Probability | ≥90% | |
| Physical | Weight | ≤ 35kg(main unit) |
| Characteristics | Size | Φ360mm×520mm |
| Environmental | Operating Temperature | -20ºC~+55ºC |
| Adaptability | Storage Temperature | -25ºC~+60ºC |
| Protection Level | IP66 | |
| Interface | Power Interface | DC28V |
| Electrical Interface | RS422,RS485,SDI | |
| Communication Interface | Gigabit Ethernet RJ45 | |
| Detector Specifications | ||
| IR Camera | Resolution | 640×512 |
| Spectral Range | 8~14μm | |
| Focal Length | 60mm/100mm | |
| Tracking FOV | 4×3.3°~7.3×5.9° | |
| Panoramic FOV | 4×3.3°/7.3°×5.9° | |
| Low Light | Resolution | 1920*1080 |
| EO Camera | Wavelength | 400~1100nm |
| Min Illumination | 0.001 lux (F1.5) | |
| Focal Length | 10 ~ 550mm;55× optical zoom, 16× digital zoom | |
| FOV | 0.6°×0.3°~31°×17.8° | |
| Control | Motorized/ zoom | |
| Image Defog | Optical /Electric | |
| Laser | Wavelength | 1540nm |
| Rangefinder | Max range | ≥2km |
| (option) | Accuracy | 1m(RMS) |
| Beam Divergence Angle | 0.6 mrad | |
| Range Frequency | 1 Hz ~ 5 Hz adjustable | |
| Eye Safety | Class 1 | |
| Turntable Information | ||
| Azimuth Angle | 0~360°, unlimited rotation | |
| Elevation Angle | -10°~+85° | |
| Azimuth Speed | 0.01°~180°/s | |
| Elevation Speed | 0.01°~100°/s | |
| Angular Acceleration | ≥60°/s² | |
| Azimuth Speed Stability | <0.1% | |
| Angle Measurement Accuracy | ≤0.01° | |
