Product Description
Optic Laser Rangefinder 3000m UAV 10km Vehicle Fiber Optic Laser Rangefinder Module

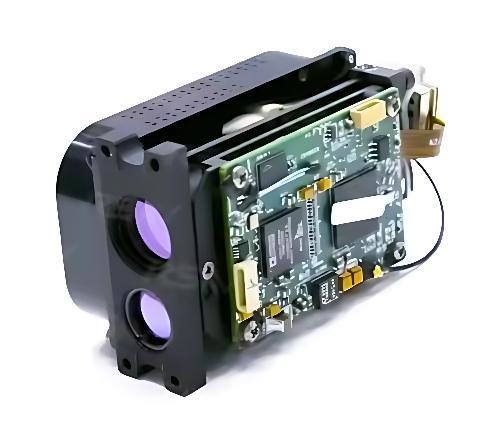

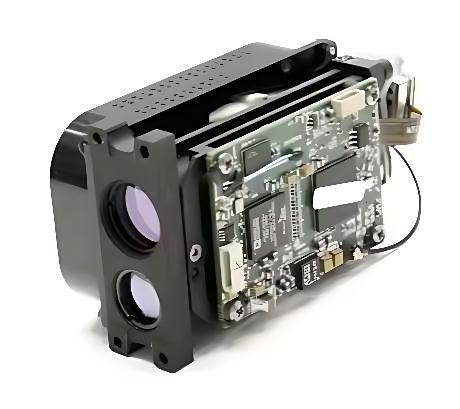

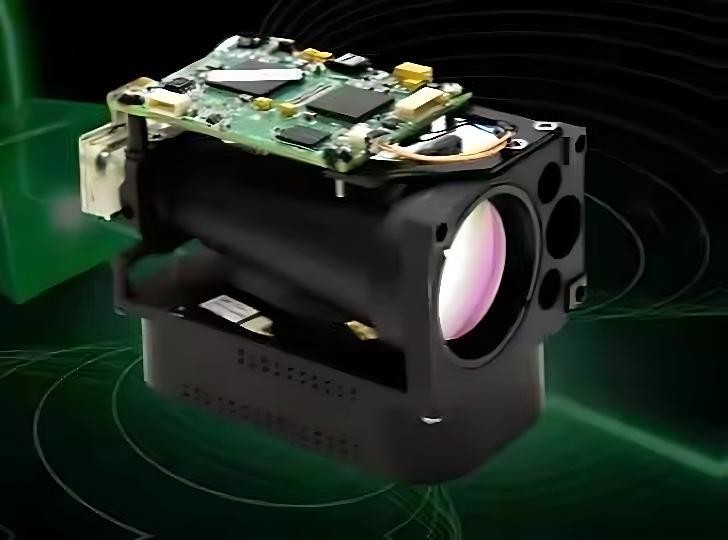

The high-performance UND-RFM603B fiber optic laser ranging module utilizes rare earth-doped glass fiber as the gain medium to output eye-safe laser. This compact and lightweight module offers exceptional reliability and seamless system integration capabilities.
Technical Specifications
| Model | UND-RFM6030B |
| Wavelength | 1550±20nm |
| Maximum range | ≥3km (UAV: 0.3×0.3m) |
| Minimum range | 50m |
| Ranging accuracy | ±2m |
| Divergence angle | 0.3±0.1mrad |
| Repeat frequency | 5Hz |
| Size (L×W×H) | 95×51×64mm |
| Weight | ≤200g |
| Operating temperature | -40℃ to +60℃ |
| Storage temperature | -50℃ to +70℃ |
Key Features
Long-distance measurement: Capable of 3km UAV and 10km vehicle ranging
Eye-safe operation: 1550nm wavelength laser for safe use

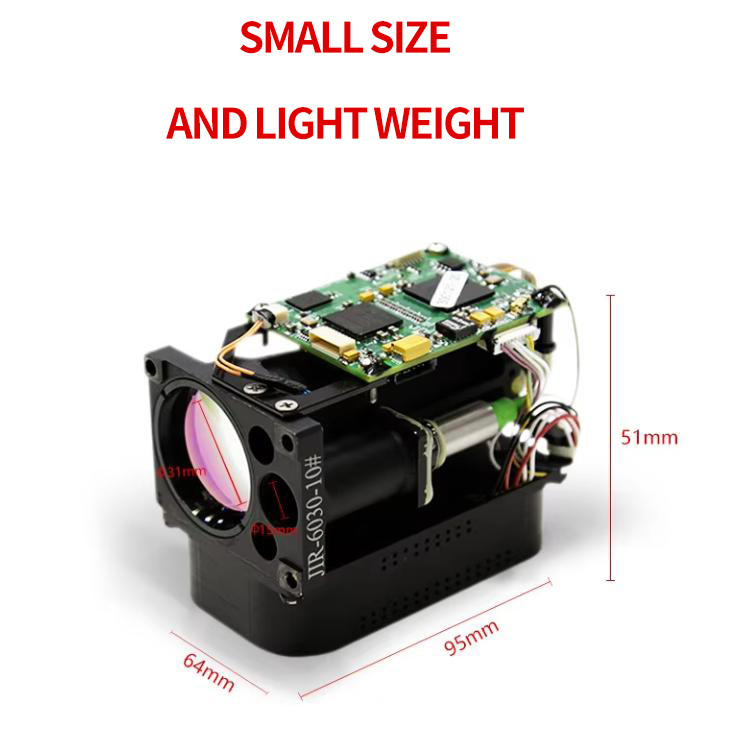

Compact design: Small footprint and lightweight for easy integration
Robust performance: Operates in extreme temperatures from -40℃ to +60℃
High accuracy: ±2m ranging precision for reliable measurements
