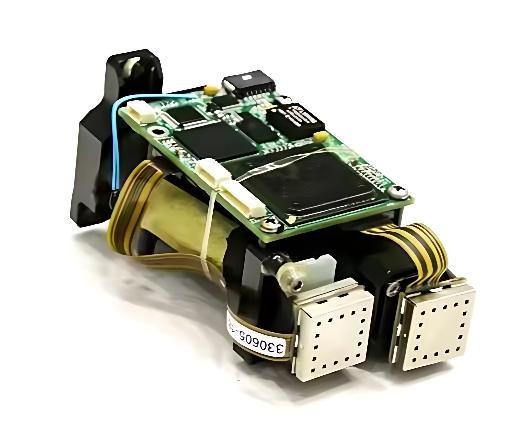

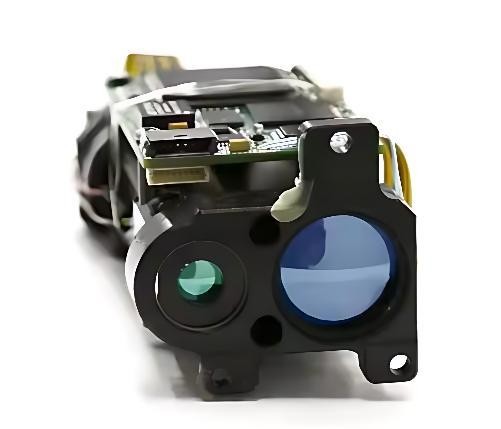

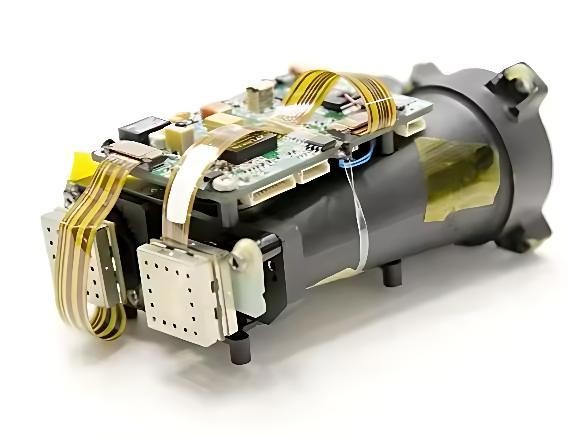

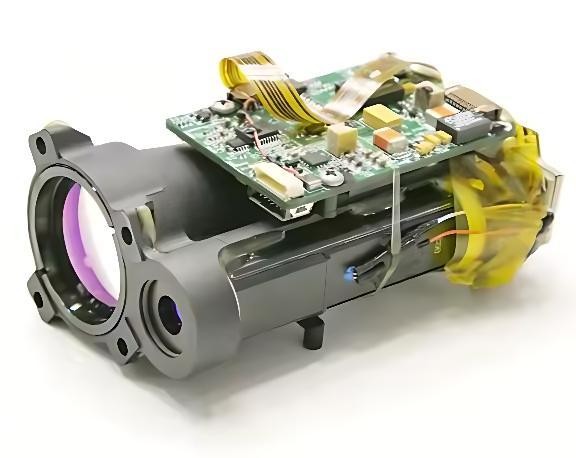

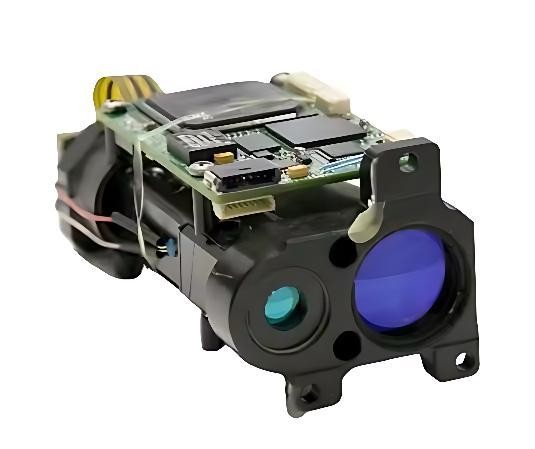

UND-RFM6230 Erbium Glass Laser Ranging Module
Lightweight 15km Long Range Distance Measurement Module
Product Overview
The UND-RFM6230 series erbium glass laser ranging module utilizes an erbium-doped glass laser as its light source, enabling low-gain laser output for precise target measurement. Designed for medium to long-range applications, its compact form factor allows seamless integration into various measurement systems.
This module is ideal for laser rangefinders requiring low pulse repetition rates (under 10 Hz), offering exceptional stability for applications requiring 6-10km range capabilities.
Key Features
- Eye-safe laser: 1.54μm wavelength
- Compact design: Small size and lightweight
- High reliability: Consistent performance
- Strong anti-interference: Stable operation in challenging environments
- Easy integration: Compatible with various systems
Technical Specifications
| Model | UND-RFM6230 |
|---|---|
| Wavelength | 1.54μm |
| Maximum range | ≥15km |
| Ranging accuracy | ±5m |
| Repeat frequency | ≥0.5Hz |
| Dimensions (L×W×H) | 95×60×47mm |
| Weight | ≤160g |
| Operating temperature | -40℃ to +60℃ |
Applications
- Photoelectric reconnaissance systems
- Photoelectric surveillance systems
- Long-range measurement equipment
- Military and defense applications
