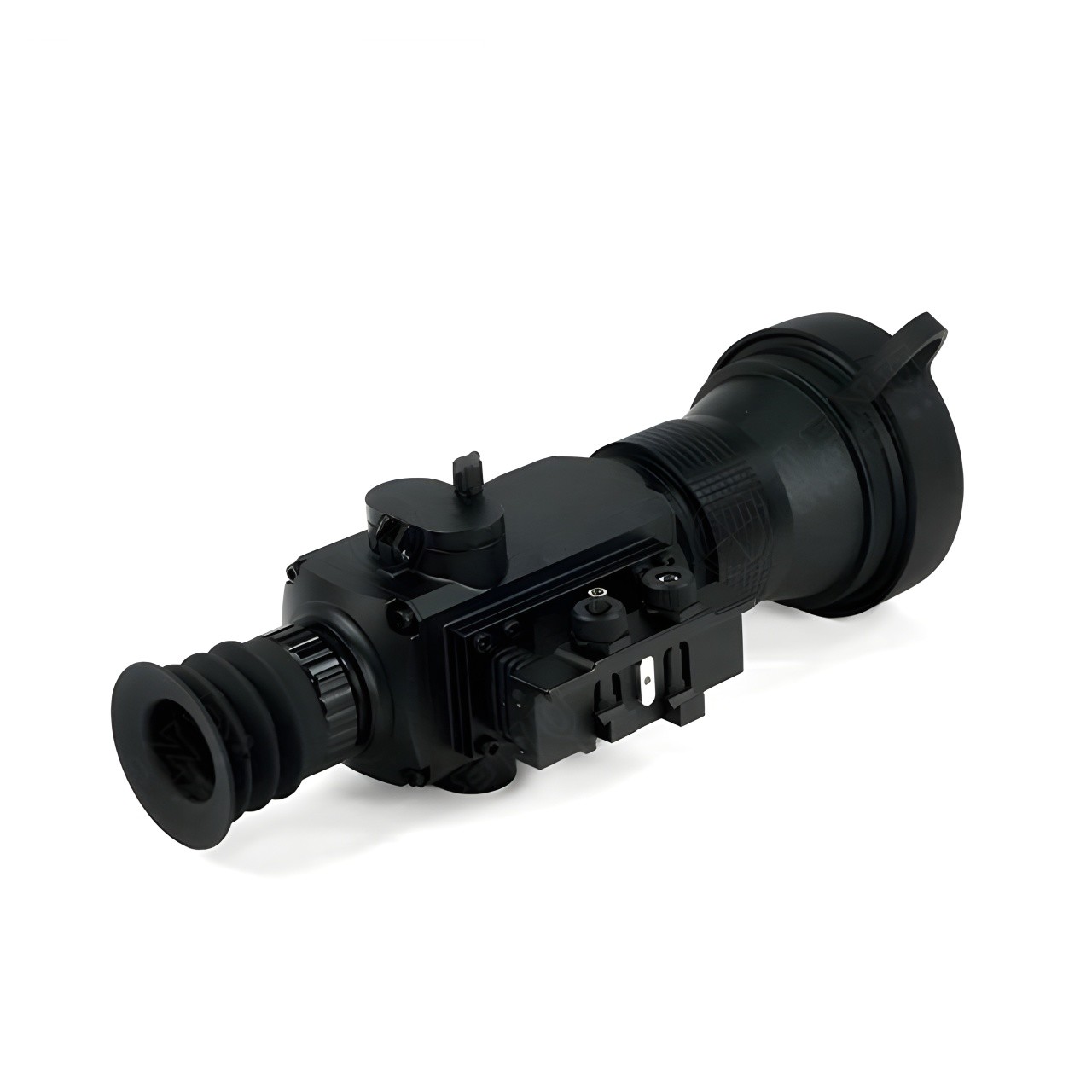

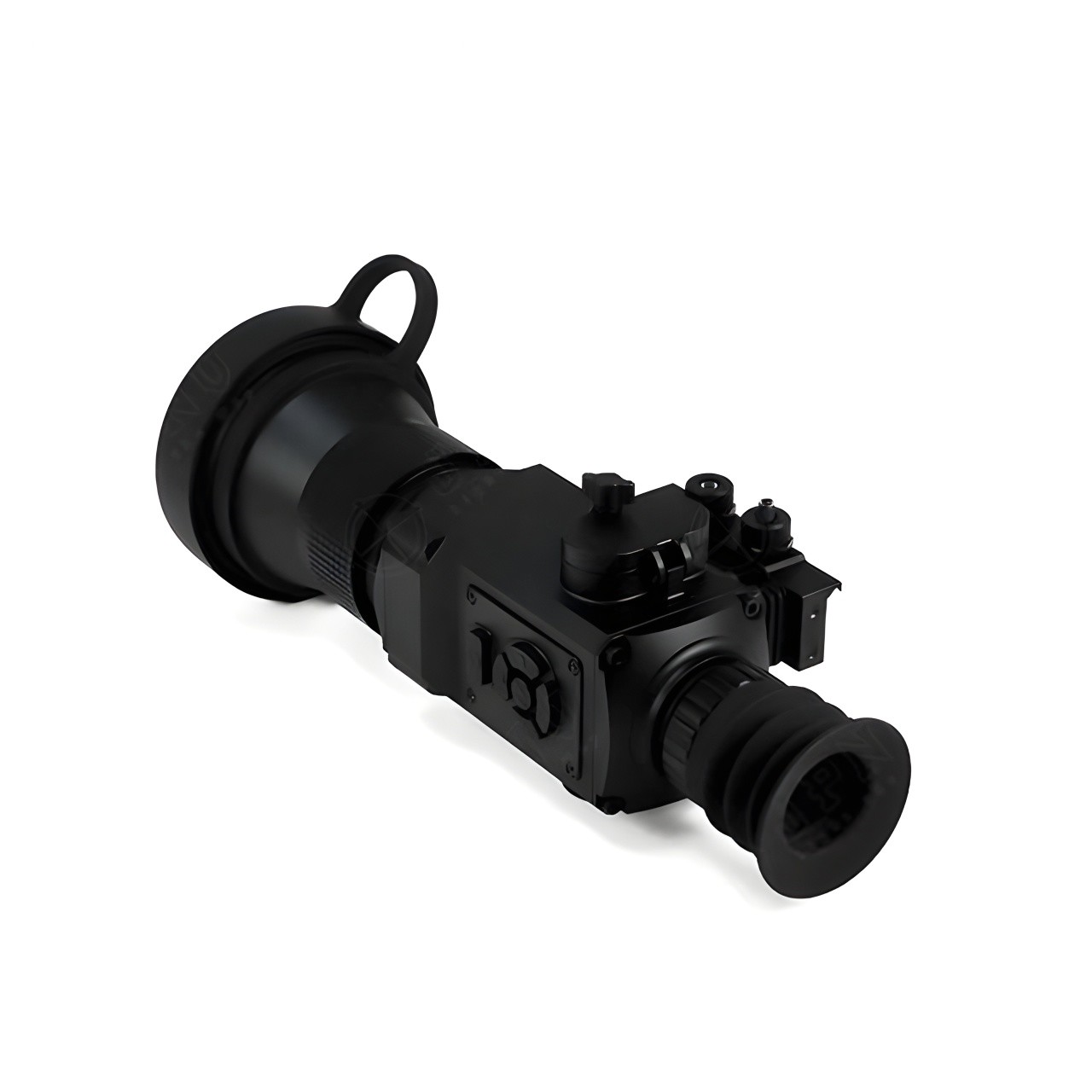

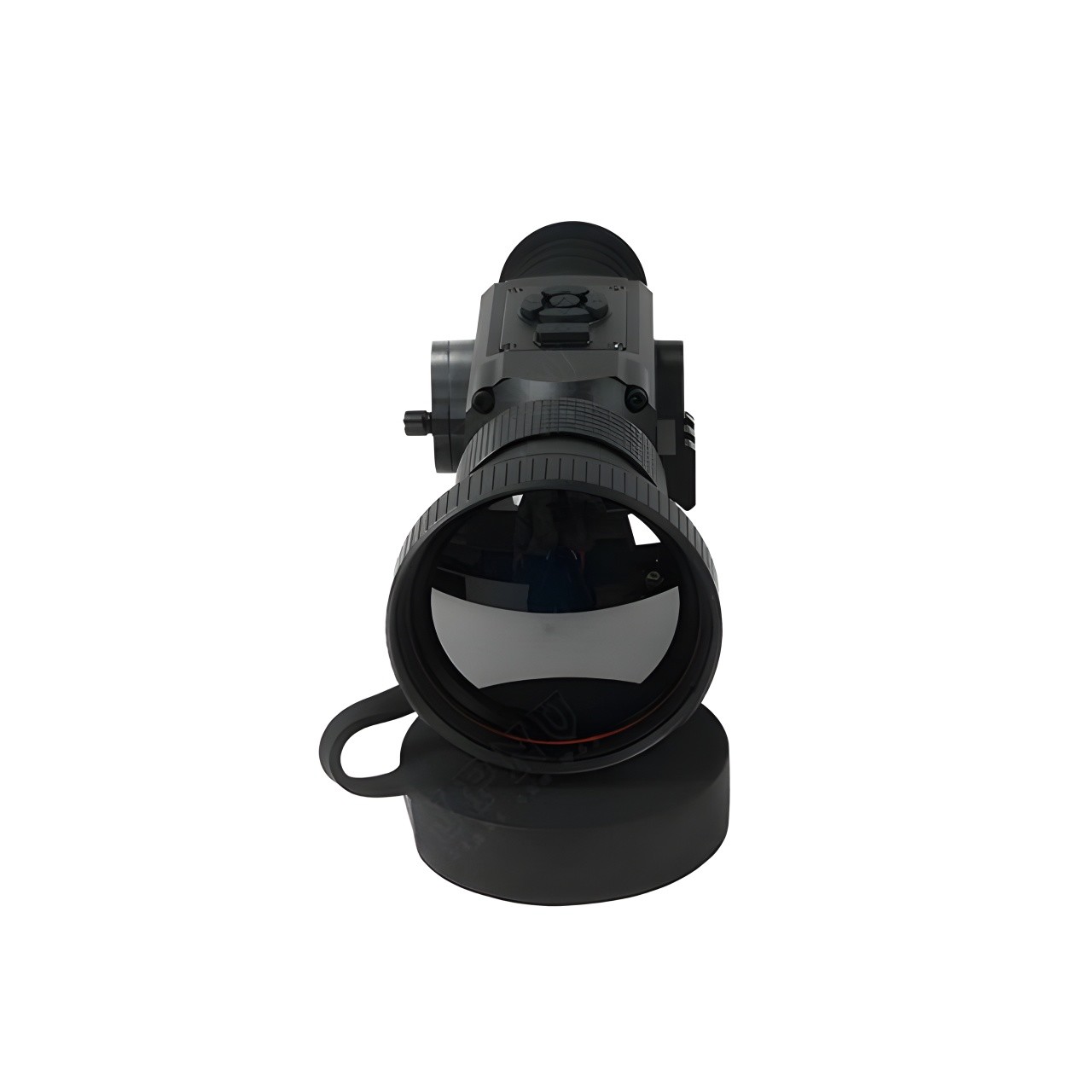

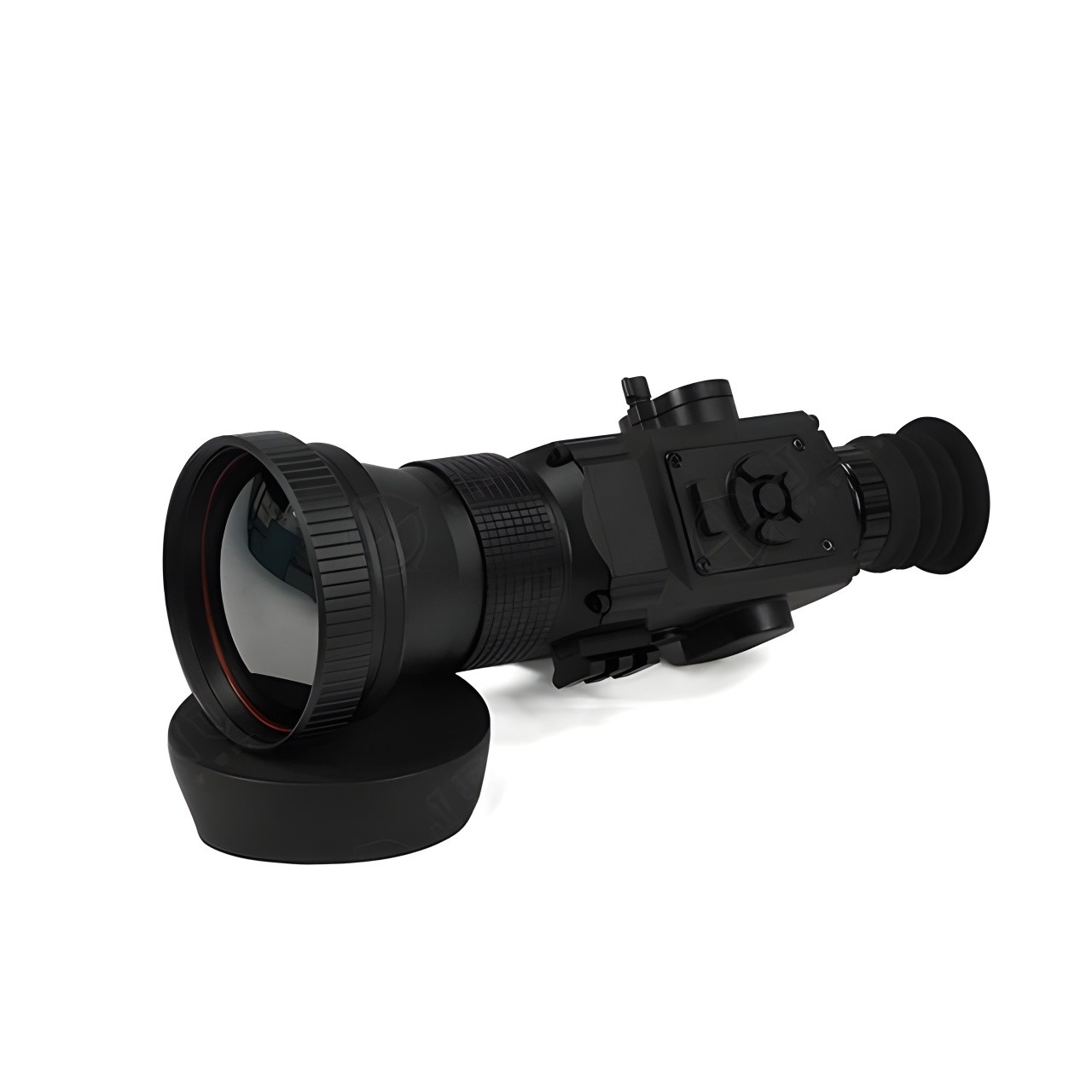

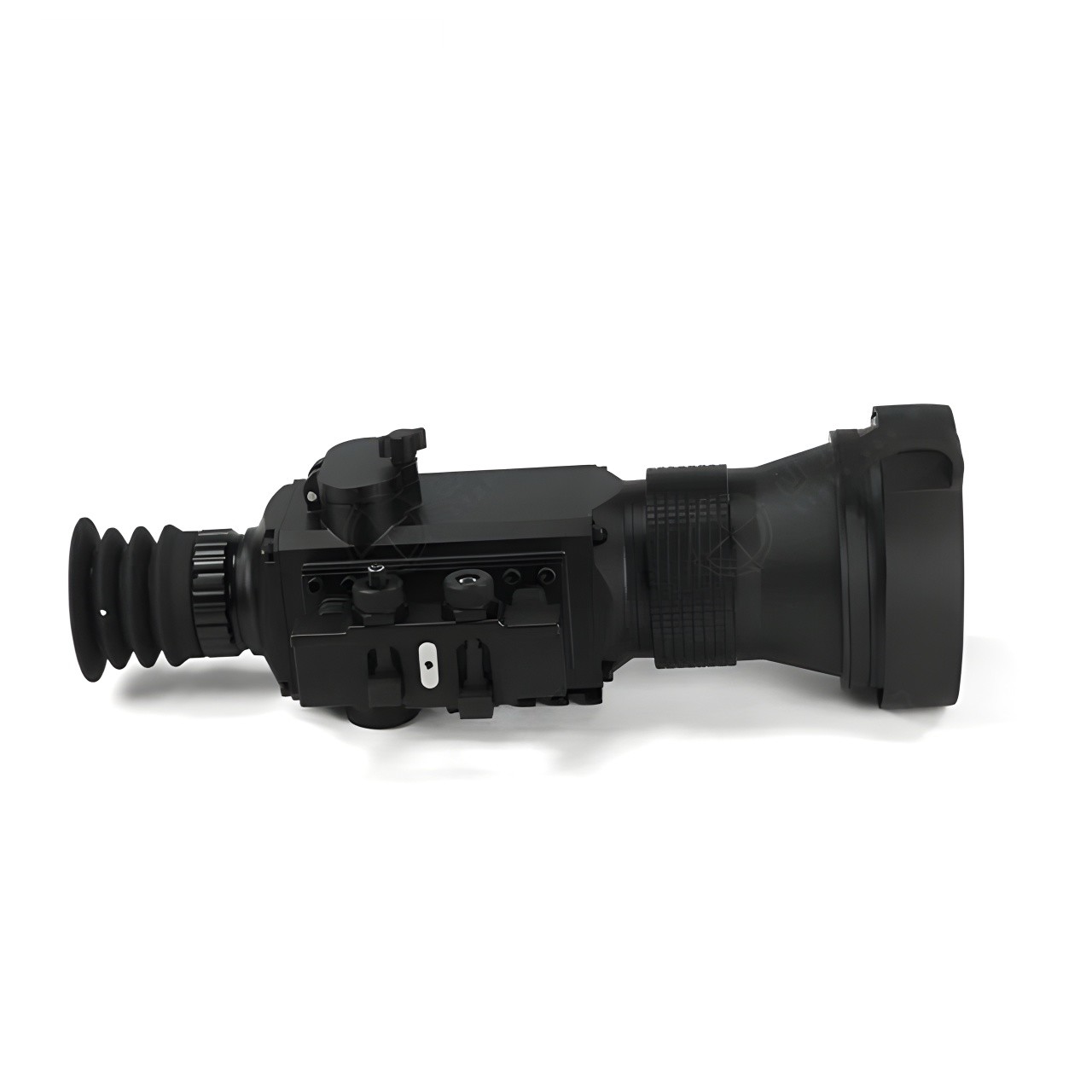

The RS-X9 High Performance Thermal Imaging Scope is a state-of-the-art instrument designed to enhance targeting accuracy and provide superior imaging capabilities. This product features:
- High-resolution, non-cooled infrared detector
- Original imported high-resolution OLED color display (1024*768)
- Simple and quick operation with user-friendly interface
- Short boot time for rapid observation
- Electronic amplification function improves aiming accuracy
- Light leakage protection eyepiece design for enhanced concealment
- 5 cross cursor division styles and 4 division colors for device compatibility

The RS-X9 utilizes advanced digital processing technology with unmatched sensitivity, refresh rates, and stability. With 24-hour imaging capability, all-scene monitoring is possible, enabling users to obtain accurate images at any time. Compared to previous models, this product offers clearer imaging and longer focal length, making it ideal for outdoor enthusiasts and professionals.



With its ergonomic design, the RS-X9 is easy to operate and capable of detecting targets over great distances with pinpoint accuracy. This essential tool for law enforcement, hunters, and wildlife watchers provides reliable imaging results in a durable, lightweight package.
Specification | RXA-X9123 | RXA-X9126 |
---|---|---|
Detector Resolution | 384x288 | 640x512 |
Sensor Type | Uncooled | |
Spectrum | 8-14μm | |
Pixels | 12μm | |
NETD | ≤50mk | |
Focus Length | 75mm | |
F# | F1.0 | |
FOV | 3.5°x2.6°(±5%) | 5.9°x4.7°(±5%) |
Frame Rate | 50Hz | |
OLED Display | 0.39 inch | |
Display Resolution | 1024x768 | |
Image Magnification | x1,x2,x4 | |
Image Modes | Black-hot, White-hot, Red-hot, Iron-hot, Sky, Stroke | |
Eyepiece | Monocular display, adjustable diopter | |
Battery | 18650 rechargeable lithium battery × 2 | |
Working Time | ≥8hr (at room temperature) | |
Detection Range (Human 1.7x0.5m) | 3100m | |
Recognition Range (Human 1.7x0.5m) | 1600m | |
Operation Temperature | -40℃~60℃ | |
Protection Grade | IP67 | |
Weight | ≤965g | |
Dimensions (mm) | 265×85×105 | |
Rail | Picatinny Rail | |
Laser Ranging | Optional |
