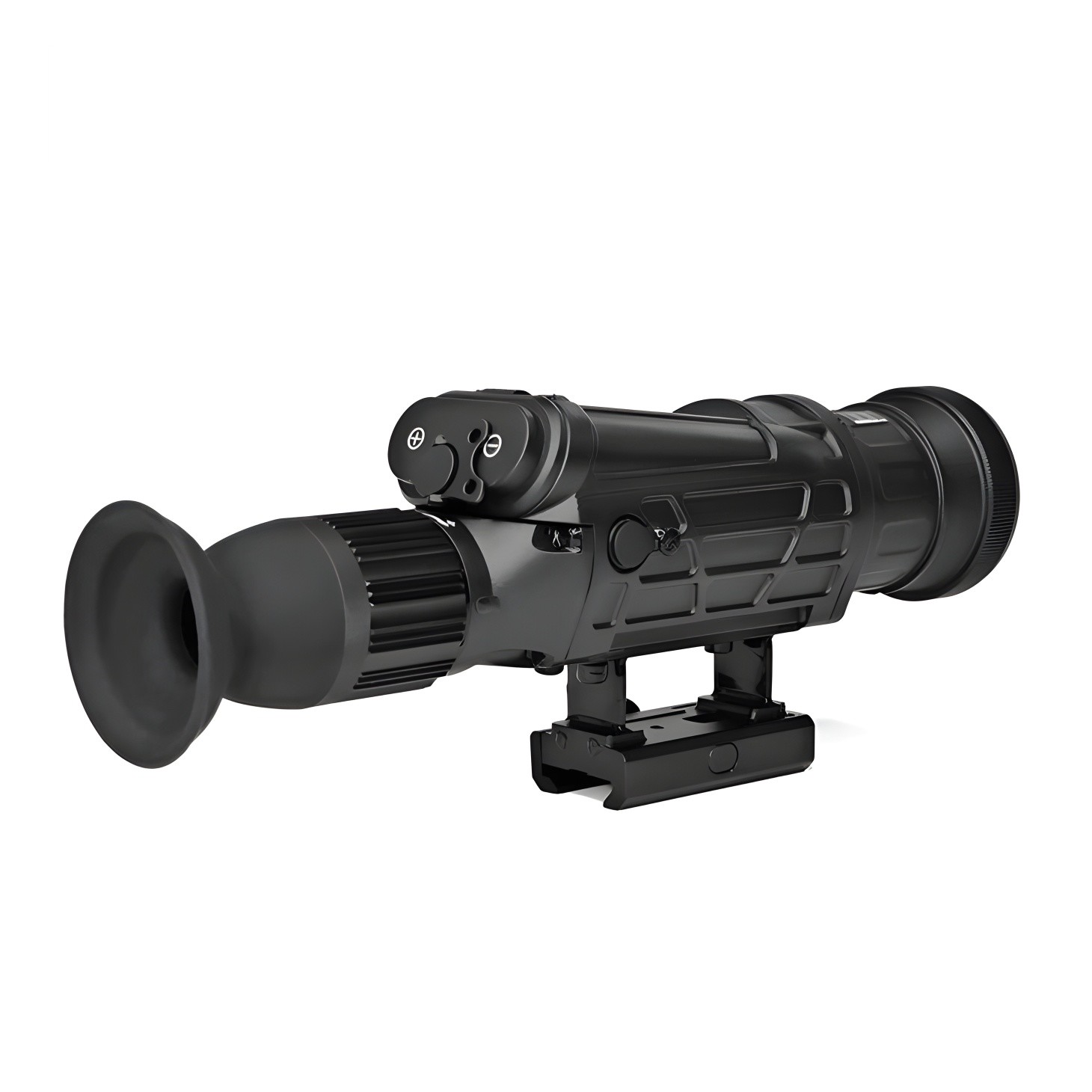

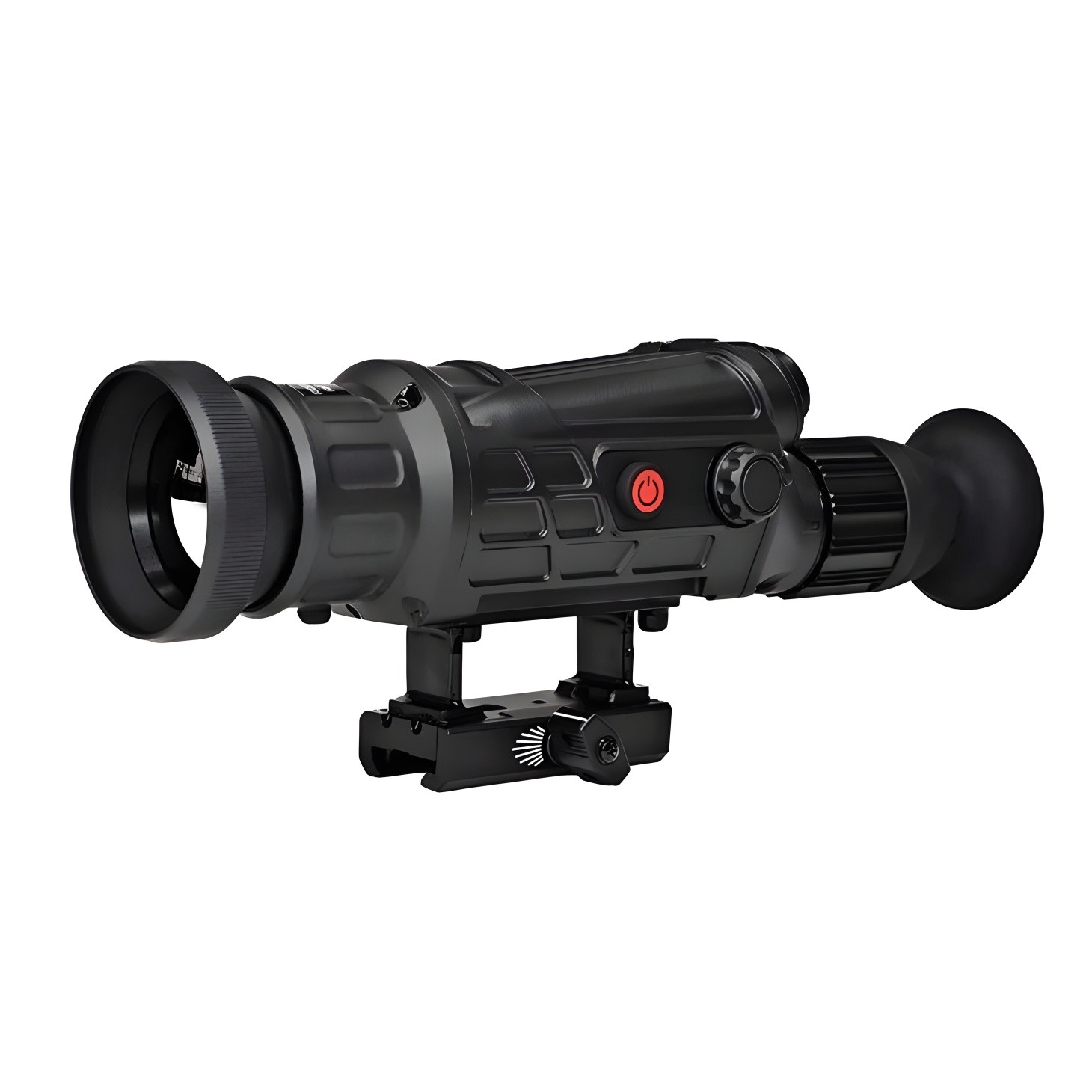

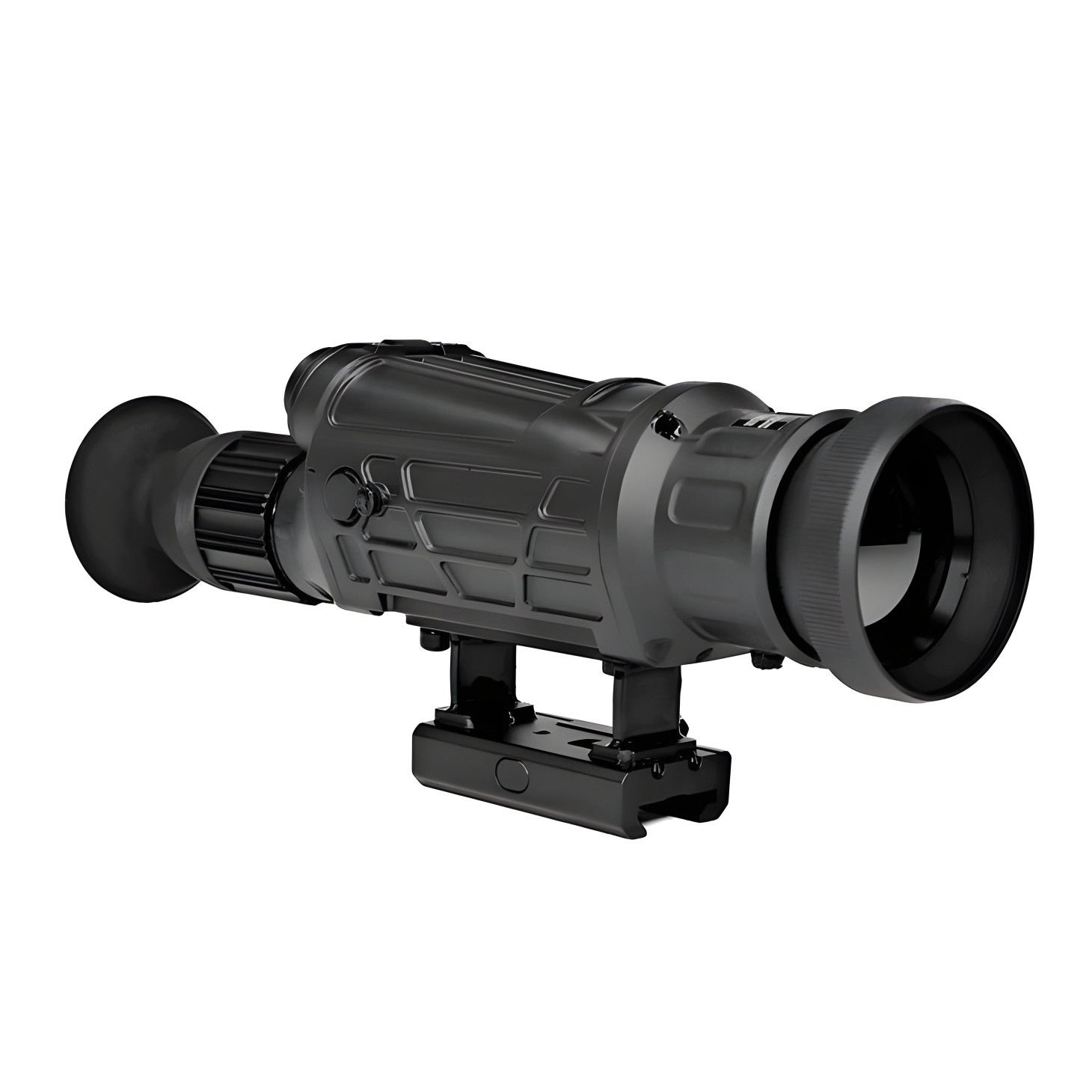

RS-D3/D6-40 Lightweight Infrared Sight
The RS-D3/D6-40 lightweight infrared sight is a cutting-edge aiming device designed for 24/7 heat source detection and targeting. This compact, high-performance device combines exceptional image quality with rugged durability for professional applications.
Key Features
- High-quality image enhancement algorithms for superior infrared imaging
- Three polarity options: black heat, white heat, and green heat modes
- Intuitive single knob control for quick menu operation
- Rugged construction withstands 300G, 0.8ms impact strength
- Available in 384×288 and 640×512 detector configurations
- 2x zoom and picture-in-picture capabilities
- Extended battery life (6-9 hours depending on model)
Professional Performance
Designed for law enforcement, border patrol, and security personnel, the RS-D3/D6-40 offers exceptional passive nighttime vision capabilities with high heat sensitivity and superior smoke penetration. Its compact size and lightweight design make it ideal for extended surveillance operations and search/rescue missions.
Technical Specifications
| Specification | RS-D3-40(384) | RS-D6-40(640) |
|---|---|---|
| Detector Resolution | 384×288 | 640×512 |
| Pixel Size | 17μm | 12μm |
| Wave Band | 8～14μm | |
| Focus Distance | 40mm | |
| Field Angle | 9.32°×7.00° | 10.96°×8.78° |
| Image Polarity | White heat, black heat, green heat | |
| Continuous Working Time | ≥9h | ≥6h |
| Operating Temperature | -40℃~+50℃ | |
| Vibration Resistance | 5Hz to 200Hz at 2g acceleration | |
| Impact Resistance | 300g, 0.8ms duration | |
Reliability & Durability
Engineered for demanding environments, the RS-D3/D6-40 meets rigorous military standards for waterproofing, corrosion resistance, salt spray protection, and dustproof operation. With a service life exceeding 10,000 rounds and MTBF ≥500 hours, this sight delivers dependable performance in the most challenging conditions.
