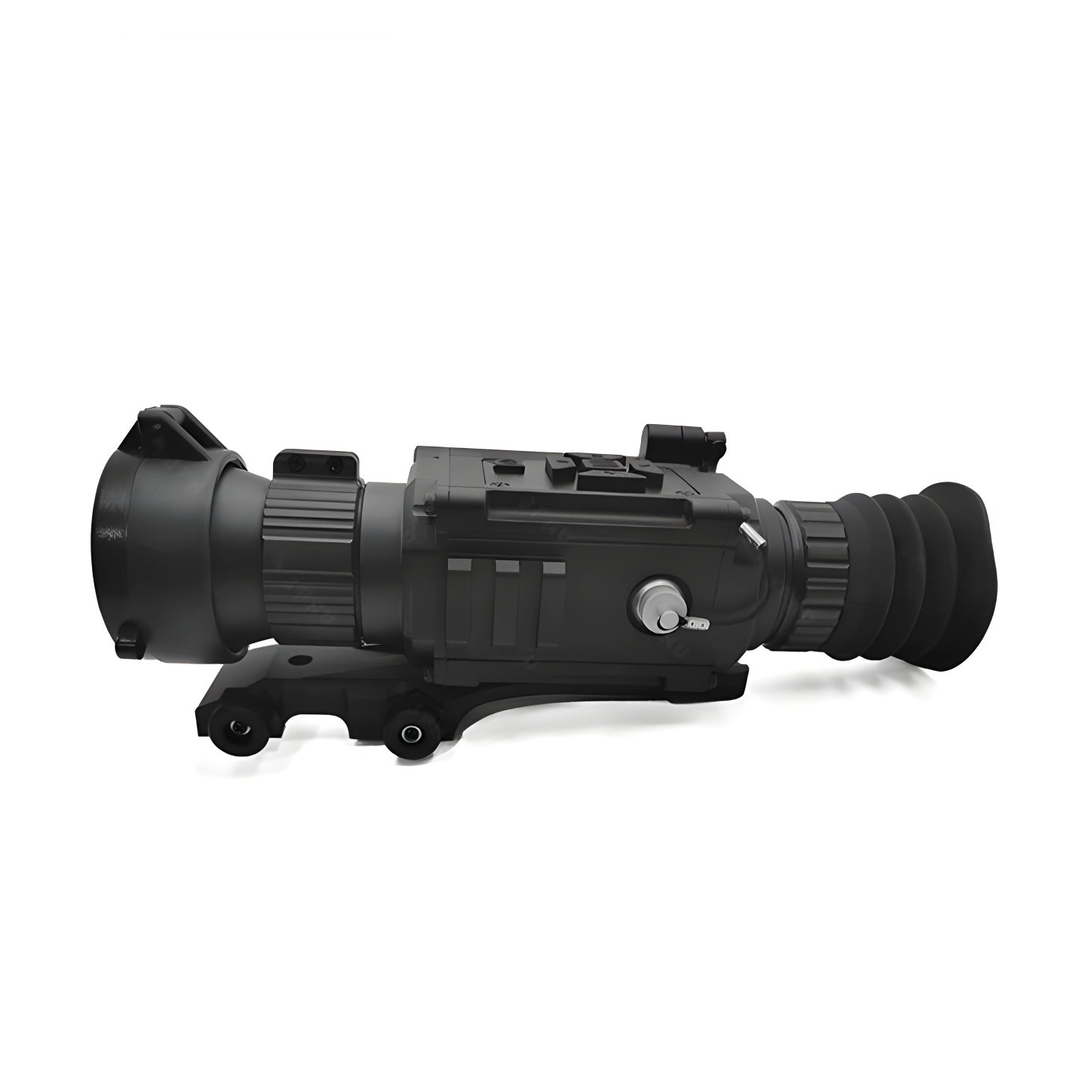

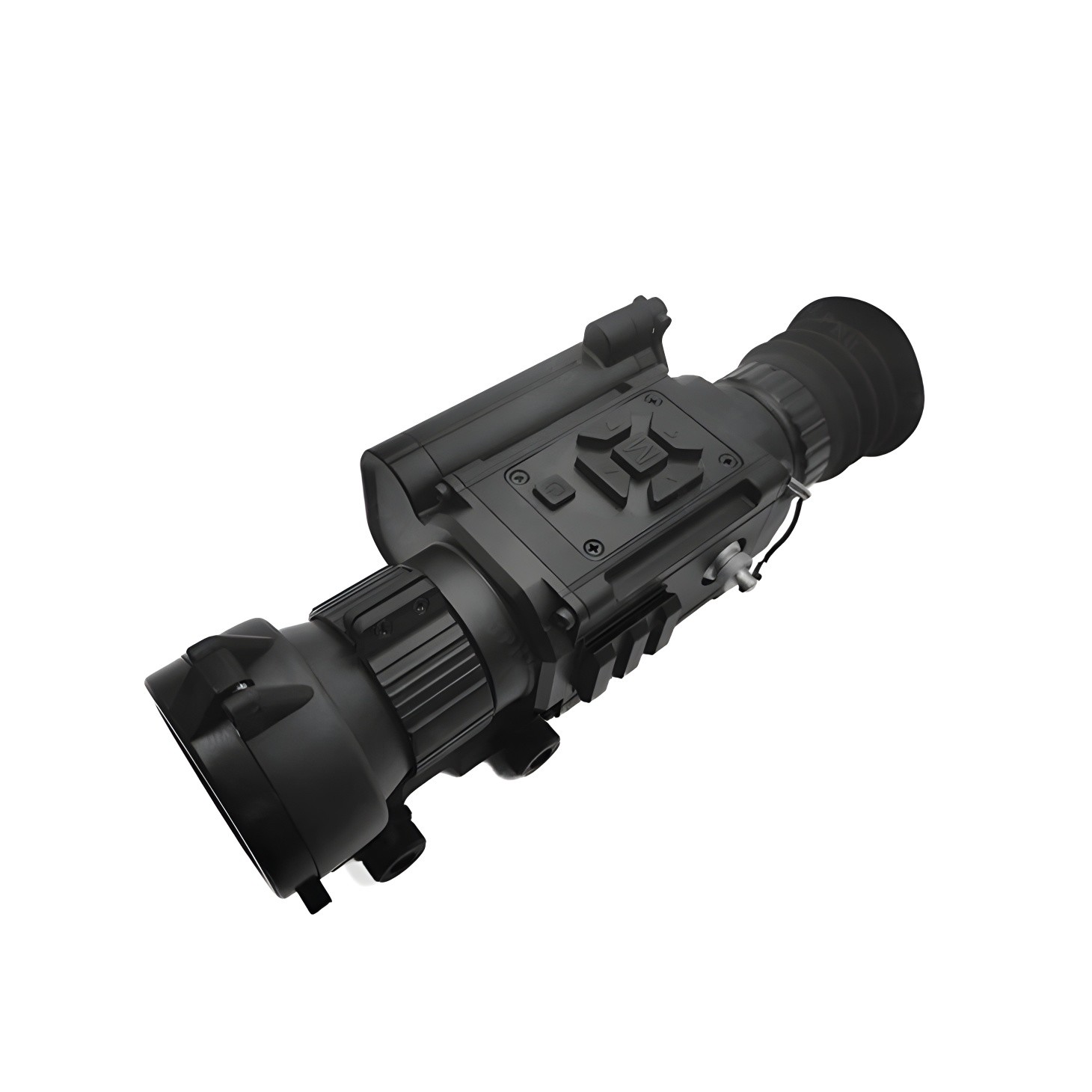

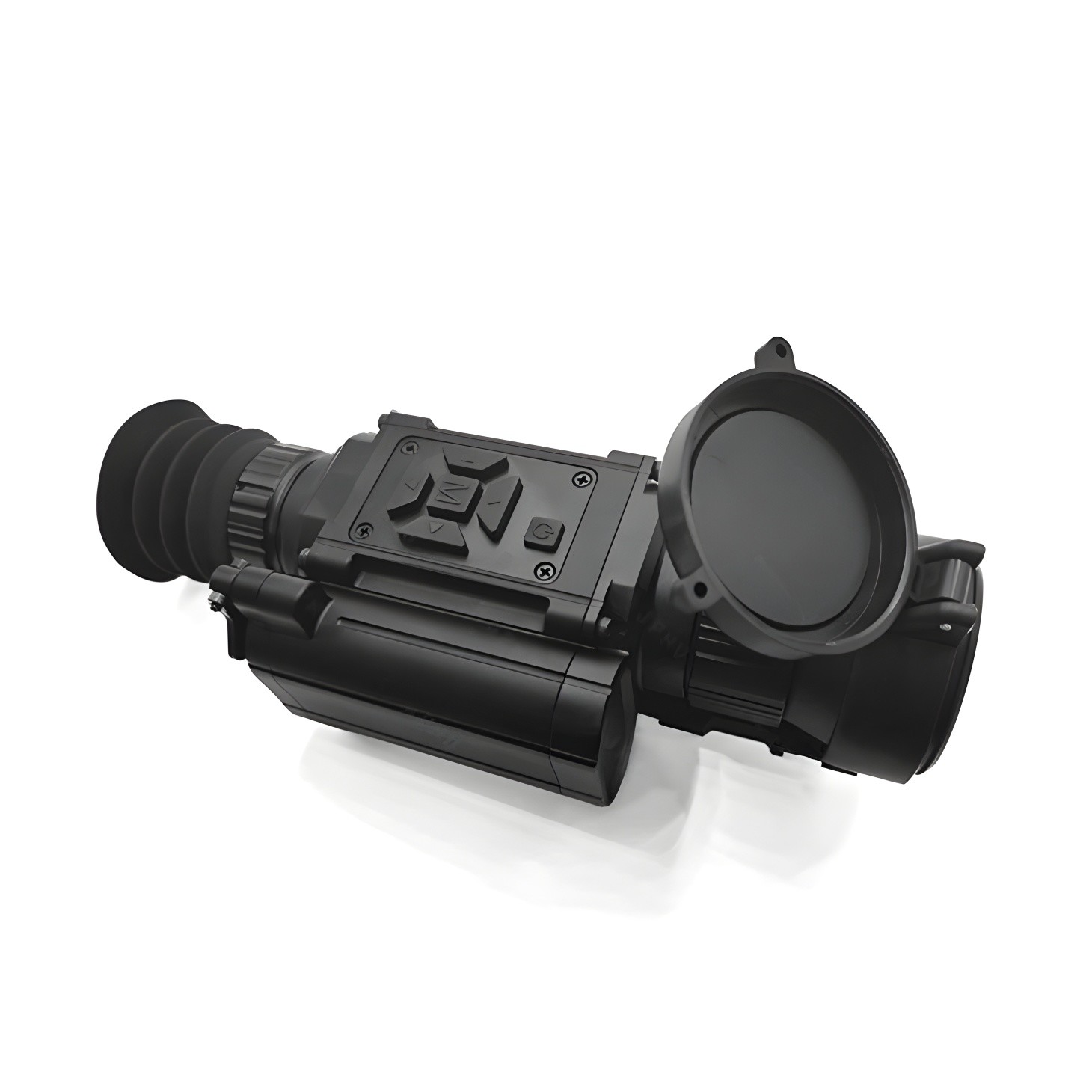

OLED Thermal Imaging Sight 1024 X 768 Aiming Accuracy Infrared Night Scope
Key Features
- High Resolution, Uncooled Infrared Detector
- Original imported high-resolution OLED color display (1024*768)
- Simple and fast operation with user-friendly interface
- Quick start-up time for immediate observation
- Electronic magnification function improves aiming accuracy
- Anti-light leakage goggles design for enhanced concealment
- 5 cross cursor styles with 4 differentiation colors for device compatibility
Product Description
The RS-X1 Thermal Imaging Sight revolutionizes thermal imaging technology with its advanced shutterless infrared detector. This professional-grade equipment delivers high sensitivity, exceptional refresh rates, and outstanding stability for reliable performance in demanding conditions.
Engineered for 24/7 operation, the RS-X1 excels in surveillance and reconnaissance applications. Its multiple imaging display modes provide unmatched versatility for various operational requirements.
The intuitive interface ensures quick mastery of all functions, while the maintenance-free shutterless technology guarantees long-term reliability. With superior resolution and image detail, the RS-X1 is ideal for hunting, sports, and industrial applications requiring precision imaging.
Technical Specifications
| Parameter | Specification |
|---|---|
| Detector | Uncooled Infrared Detector |
| Spectrum | 8～14μm |
| Resolution (Pixel) | 384×288 / 640×512(12μm) |
| Focus Length | 42mm(F1.0) |
| Eyepiece | 0.39 inch HD OLED |
| Display Resolution | 1024*768 |
| Differentiation Pattern | 5 kinds |
| Image Mode | White heat, black heat, red heat, false color, sky, outline |
| Electronic Magnification | 1X/2X/4X |
| Battery Type | 18650, 3.7 V Lithium battery×2 (replaceable) |
| External Video Output | PAL Analog video |
| Continuous Working Time | ≥8h |
| Operation Temperature | -40°C～60°C |
| Weight | ≤610g (42mm lens does not include battery, bracket) |
| Dimension(mm) | 176x80x72 (including height of support) |
| Anti-Shock | 6000J |
| Ranging Module | External and internal display |
