LGC6122 Non Refrigerated Infrared Thermal Camera Module Imaging Module
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Lightweight thermal camera module,LGC6122 thermal camera module,OEM infrared camera module |
||
|---|---|---|---|
Product Description
Long wave non-refrigerated module

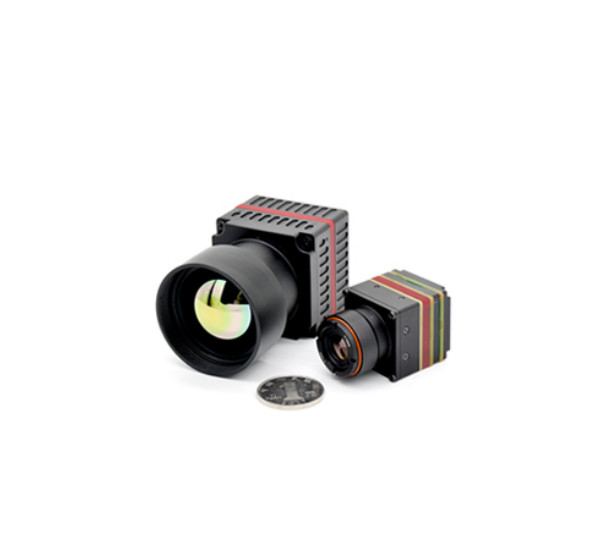

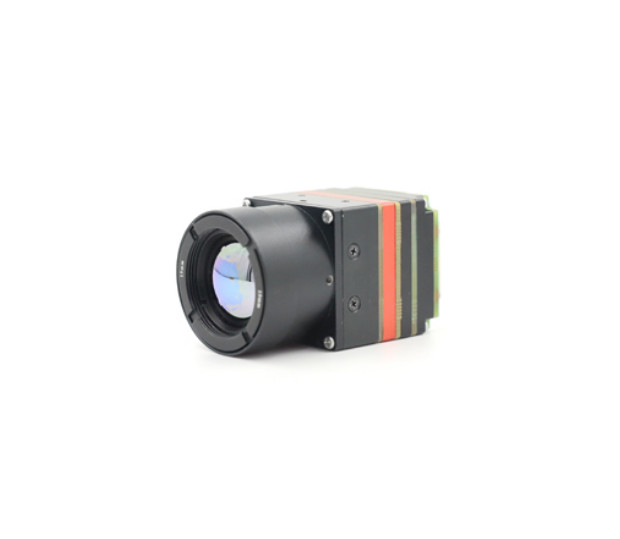

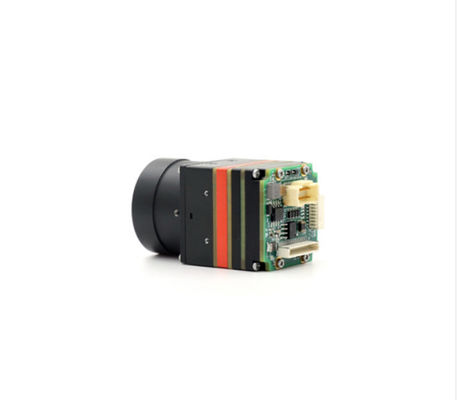

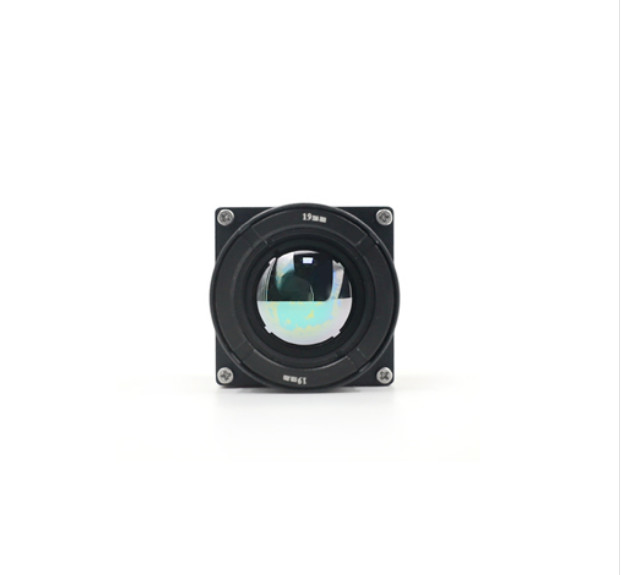

LGC6122 infrared thermal imaging module
The domestic products can provide perfect infrared thermal imaging solutions for a variety of small thermal imaging night vision telescopes, helmet night vision equipment, lightweight unmanned aerial vehicle systems and multiple fusion photoelectric systems. At the same time, it can meet the development needs of photoelectric pods, vehicle applications, sighting devices and other products with high reliability requirements.
Resolution: 640×512
Pixel size: 12μm
Application scenario: schools, troops, enterprises, units, hospitals
Product characteristics
Small size, without lens and expansion components, the size is 29.5mm×29.5mm×28mm
Lightweight, 35g±3g without lens and expansion components;
Low power consumption, the minimum power consumption is 1.2w without user expansion components;

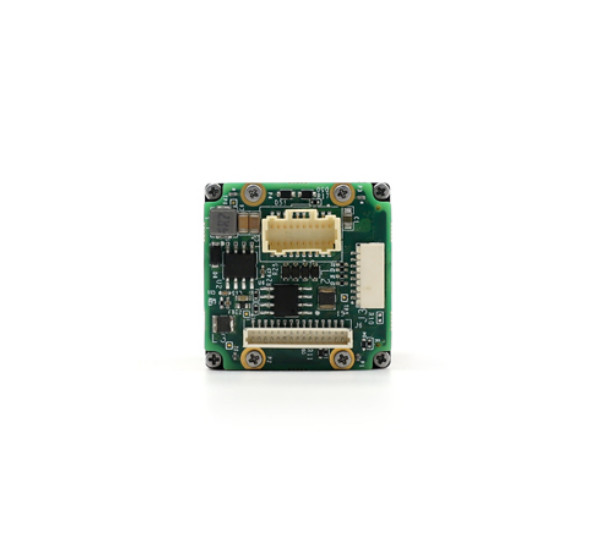

Provide two UART serial communication interfaces;
Provides analog video output, can support PAL /NTSC standard
Provide LVCMOS/LVDS/BT656/BT1120 mainstream digital video output;
Movement components adopt all domestic solutions, technical safety, independent and reliable;
640×512 resolution, fast and efficient;
It has good vibration and shock resistance.
Technical parameter
|
Product model |
LGCS121 |
LGC7121 |
LGC6122 |
|
Imaging parameter |
|||
|
Detector type |
Vanadium oxide uncooled infrared focal plane detector |
||
|
Array format |
1280x1024 |
1024x768 |
640x512 |
|
Pixel spacing |
12μm |
||
|
Response band |
8～14μm |
||
|
Frame frequency |
30/60Hz(NTSC),25/50Hz(PAL) |
||
|
Non-uniformity correction |
Support SBNUC and TECLESS |
||
|
Electron doubling |
1.0~4.0× continuous multiplication |
||
|
Character superposition |
Support |
||
|
Noise equivalent temperature difference (NETD) |
≤50mK@25℃,F#1.0 (≤40mK optional) |
||
|
MRTD |
≤400mK (Optional ≤300mK) |
||
|
Polarity |
Black/white fever |
||
|
Pseudo-color |
Support |
||
|
Image processing |
Non-uniformity correction, time domain filtering, digital detail enhancement |
||
|
Optical lens |
|||
|
Focusing type |
Athermalization |
||
|
|
Horizontal field Angle/focal length |
Horizontal field Angle/focal length |
Horizontal field Angle/focal length |
|
|
88°/10mm |
70.4°/10mm |
89°/4.1mm F1.2 |
|
|
46.3°/19mm |
37.1°/19mm |
70°/5.8mm F1.2 |
|
|
35.2°/25mm |
28.2°/25mm |
48°/9.1mm F1.2 |
|
|
25.5°/35mm |
20.1°/35mm |
33°/13mm |
|
|
16°/55mm |
12.8°/55mm |
22°/19mm |
|
|
11.7°/75mm |
9.4°/75mm |
17°/25mm |
|
|
|
|
12.5°/35mm |
|
|
|
|
8°/55mm |
|
|
|
|
5.9°/75mm |
|
|
|
|
4.4°/100mm |
|
Focusing type |
Continuous zoom |
||
|
|
Horizontal field Angle/focal length |
Horizontal field Angle/focal length |
Horizontal field Angle/focal length |
|
|
11.7°~35.2°/ |
9.4°~28.2°/ |
5.9°~17.6°/ |
|
|
5.9°~29.3°/ |
4.7°~23.5°/ |
4.4°~22°/ |
|
|
|
|
2.9°~14.7°/ |
|
机械参数 |
|||
|
Size (no lens, no extension components) |
45mm×45mm×33.5m |
29.5mm×29.5mm×28mm |
|
|
Weight (no lens, no extension components) |
90g ±3g |
35g ±3g |
|
|
Electrical parameter |
|||
|
Input voltage |
3.9 to 5V The typical power supply is 4V |
||
|
5～18VDC,With user expansion components, the typical power supply is 12V |
|||
|
Power consumption (excluding user extension components) |
Minimum 1.8W |
Minimum 1.6W |
Minimum 1.2W |
|
Video channel |
LVDS, 10/14bit parallel digital video signal |
||
|
The user extension component supports LVDS/CML/ Camera link |
|||
|
The user extension component supports BT.1120 |
The user extension component supports BT.656 |
||
|
Control channel |
UART/RS-232 |
||
|
Power supply protection |
The user extension component supports overvoltage, undervoltage, and reverse connection |
||
|
Environmental parameter |
|||
|
Operating temperature range |
-40℃～+70℃ |
||
|
Storage temperature range |
-50℃～+85℃ |
||
|
Vibration resistance |
6.06g,Random vibrations, all axes |
10.2g,Random vibrations, all axes |
|
|
Impact resistance |
Half sine wave 80g 6ms, three axes and six directions five times each |
||
