Medium Wave Cooling Infrared Thermal Imaging Module Infrared Camera Module
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Medium wave Thermal Imaging Module,cooling Thermal Imaging Module,640 x 512 infrared camera module |
||
|---|---|---|---|
Product Description

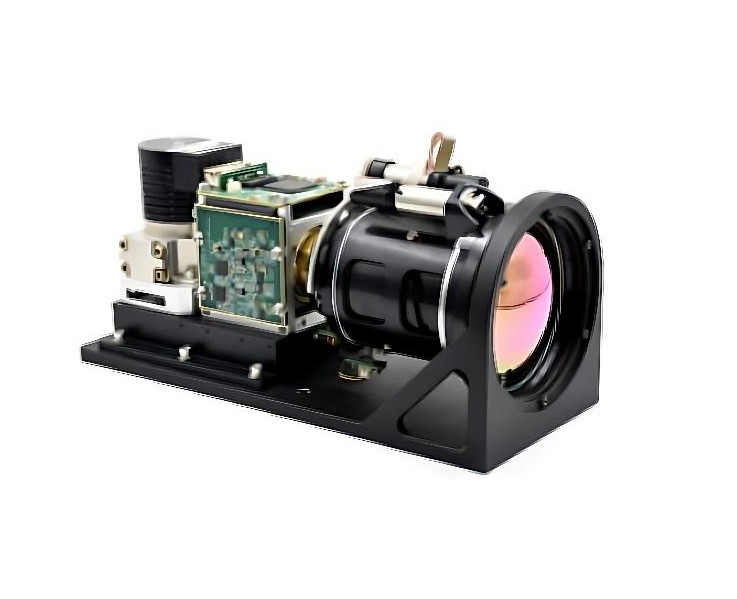

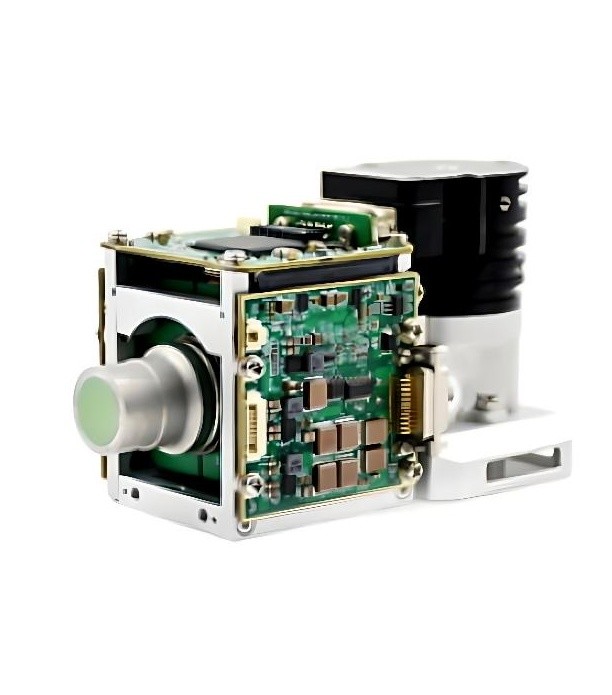

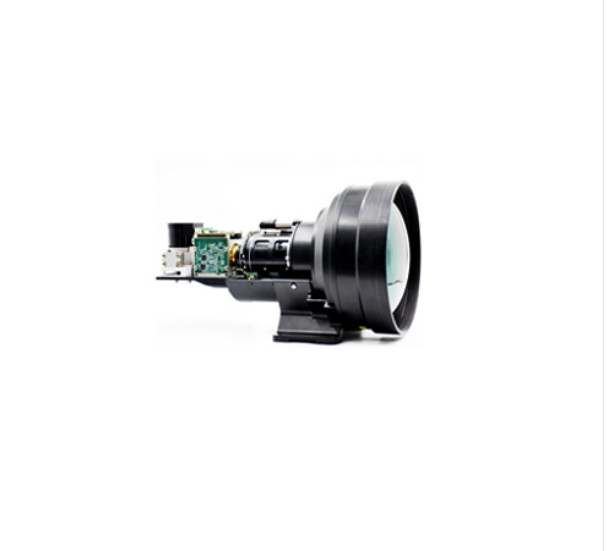

FX640E Medium wave cooling infrared thermal imaging module
Products integrate a variety of image processing algorithms, suitable for different weather and scenes, can provide rich detail, superior image quality image data.
Detector: Mercury cadmium telluride
Resolution: 640×512
Pixel size: 15μm
NETD: ≤25mK
Application scenario: border monitoring border and coastal defense target tracking
Product characteristics
(1) High detection sensitivity
(2) The detection distance of the target is long
(3) The image details are clear
Technical parameter
|
Product model |
FX640E |
|
Probe |
Mercury cadmium telluride |
|
Resolution |
640x512 |
|
Pixel spacing |
15μm |
|
Response wavelength |
3.7~4.8μm |
|
NETD |
≤25mK |
|
Default frame rate |
25Hz |
|
Maximum frame rate |
50Hz |
|
Start-up time |
≤7.5min |
|
Lens |
Can be equipped with more than 20 times continuous zoom lens |
|
Brightness/contrast adjustment |
Manual/automatic |
|
Swatches |
White heat/black heat/fake color |
|
Reticle |
Show/hide/Move |
|
Electron doubling |
1 to 8 times |
|
Image processing |
Non-uniformity correction, digital filter noise reduction, digital detail enhancement |
|
Image mirroring |
Left/right/up/diagonal |
|
Supply voltage |
20~36VDC |
|
Power dissipation@25℃/24V |
Peak power consumption ≤24W, stable power consumption ≤20W |
|
Analog video |
PAL/NTSC |
|
Digital video |
Camera Link |
|
Serial communication interface |
RS422 |
|
External synchronization |
RS422 or LVTTL |
|
Operating temperature |
-40℃~+60℃ |
|
Storage temperature |
-40℃~+70℃ |
