Product Description

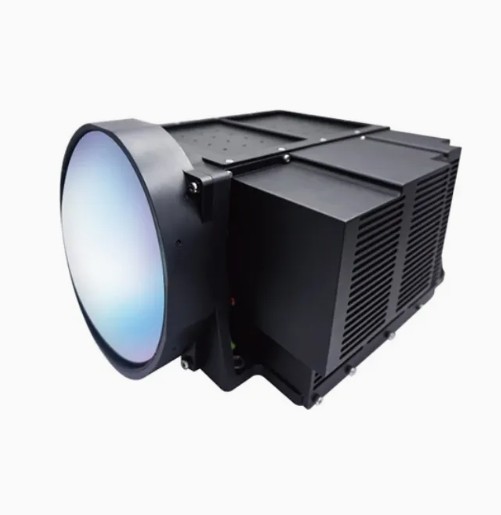

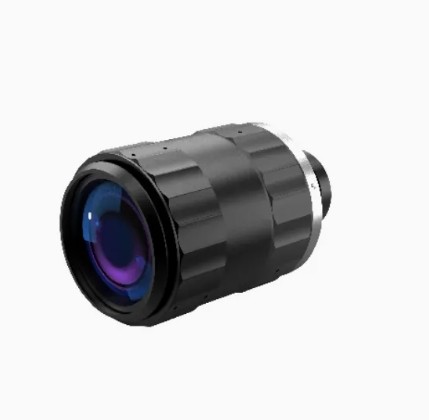

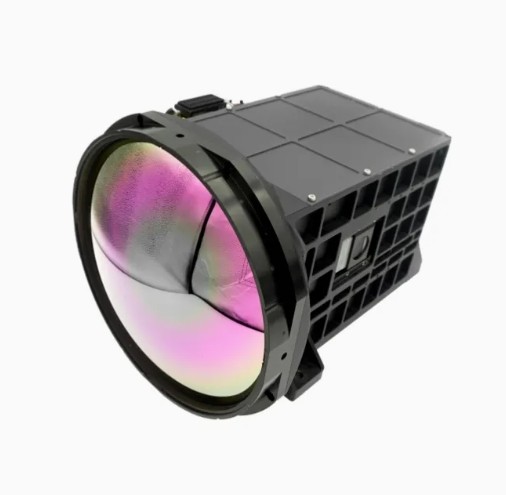

Medium wave infrared lens
Product Description
Specially designed for the medium wave infrared band (MWIR, 3.7~4.8μm) prime and zoom lenses, the MWIR series lenses are suitable for the MWIR cooled detectors and come with near diffraction limit performance. The products cover fixed focus, dual field of views, continuous optical zoom and other specifications, with high transmittance, strong temperature adaptability, and stable imageries amidst zooming. Thus, they are a good choice for remote vision, high sensitivity, better signal-to-noise ratio and atmospheric transmission.
The production and development can be customized according to the client's requirements.
| MWIR Cooled Non-thermal Prime Lenses | ||||||
| Focal length | F-number | Spectral range | FOV (H×V) | Detector specification |
Focusing distance |
Focusing mode |
| 11mm | 2 | 3.7~4.8μm | 69.8°×58.3° | 280*1024,12μm | M45*1 | Non-thermal prime |
| 20mm | 2 | 3.7~4.8μm | 27.0°×21.7° | 640*512,15μm 320*256,30μ |
M45*1 | Non-thermal prime |
| 50mm | 2 | 3.7~4.8μm | 11.0°×8.8° | 640*512,15μm 320*256,30μm |
M54*1 | Non-thermal prime |
| 75mm | 2 | 3.7~4.8μm | 7.2°×5.9° | 640*512,15μm 320*256,30μm |
M54*1 | Non-thermal prime |
| 150mm | 2 | 3.7~4.8μm | 3.67°×2.93° | 640*512,15μm 320*256,30μm |
M54*1 | Non-thermal prime |
| 200mm | 4 | 3.7~4.8μm | 2.75°×2.2° | 640*512,15μm 320*256,30μm |
M54*1 | Non-thermal prime |
| MWIR cooled lens set | ||||||
| Focal length | F-number | Spectral range | FOV (H×V) | Detector specification |
Focusing distance |
Focusing mode |
| 25mm | 2.0 | 3.7~4.8μm | 21.7°×17.5° | 640*512,15μm 320*256,30μm |
1.5m~∞ | Manual |
| 30mm | 2.0 | 3.7~4.8μm | 28.7°×23.1° | 1280*1024,12μm | 1.5m~∞ | Manual |
| 35mm | 2.0 | 3.7~4.8μm | 15.6°×12.5° | 640*512,15μm 320*256,30μ |
1.5m~∞ | Manual |
| 50mm | 2.0 | 3.7~4.8μm | 11.0°×8.8° | 640*512,15μm 320*256,30μm |
0.3m~∞ | Manual |
| 60mm | 2.0 | 3.7~4.8μm | 9.15°×7.32° | 640*512,15μm 320*256,30μm |
5m~∞ | Manual |
| 90mm | 2.0 | 3.7~4.8μm | 6.1°×4.9° | 640*512,15μm 320*256,30μm |
10m~∞ | Manual |
| 100mm | 2.0 | 3.7~4.8μm | 5.5°×4.4° | 640*512,15μm 320*256,30μm |
10m~∞ | Manual |
| 120mm | 2.0 | 3.7~4.8μm | 4.58°×3.66° | 640*512,15μm 320*256,30μm |
10m~∞ | Manual |
| 150mm | 4.0 | 3.7~4.8μm | 7.32°×5.86° | 1280*1024,15μm 640*512,15μm 320*256,30μm |
10m~∞ | Manual |
| 180mm | 2.0 | 3.7~4.8μm | 3.05°×2.44° | 640*512,15μm 320*256,30μm |
10m~∞ | Manual |
| MWIR cooled zoom lenses | ||||||
| Focal length | F-number | Spectral range | FOV (H×V) | Detector specification |
Focusing distance |
Focusing mode |
| 60/240mm dual FOVs |
2.0 | 3.7~4.8μm | 9.15°×7.32°/2.29°×1.83° | 640*512,15μm 320*256,30μm |
10m~∞ 50m~∞ |
Electrical |
| 75/300mm dual FOVs |
4.0 | 3.7~4.8μm | 7.32°×5.86°/1.83°×1.47° | 640*512,15μm 320*256,30μm |
20m~∞ 50m~∞ |
Electrical |
| 15~300mm continuous zoom |
4.0 | 3.7~4.8μm | 35.5°×28.7°~1.83°×1.47° | 640*512,15μm 320*256,30μm |
2.5m~∞ 25m~∞ |
Electrical |
| 21~420mm continuous zoom |
4.0 | 3.7~4.8μm | 25.75°×20.73°~1.31°×1.05° | 640*512,15μm 320*256,30μm |
2.5m~∞ 25m~∞ |
Electrical |
| 30~240mm continuous zoom |
4.0 | 3.7~4.8μm | 18.18°×14.59°/2.3°×1.83° | 640*512,15μm 320*256,30μm |
3m~∞ 20m~∞ |
Electrical |
| 30~660 continuous zoom |
4.0 | 3.7~4.8μm | 18.18°×14.59°~0.83°×0.67° | 640*512,15μm 320*256,30μm |
3m~∞ 30m~∞ |
Electrical |
| 60~400 continuous zoom |
4.0 | 3.7~4.8μm | 9.14°×7.32°~1.37°×1.1° | 640*512,15μm 320*256,30μm |
3m~∞ 20m~∞ |
Electrical/automatic |
| 20~1050 continuous zoom |
4.0/5.5 | 3.7~4.8μm | 27°×21.7°~0.52°×0.42° | 640*512,15μm 320*256,30μm |
3m~∞ 500m~∞ |
Electrical/automatic |
| 40~1200 continuous zoom |
4.0/5.5 | 3.7~4.8μm | 27°×21.7°~0.91°×0.73° | 1280*1024,15μm 640*512,15μm 320*256,30μm |
3m~∞ 500m~∞ |
Electrical/automatic |
| 95~305 continuous zoom |
2.0 | 3.7~4.8μm | 5.78°×4.62°~1.8°×1.44° | 640*512,15μm 320*256,30μm |
10m~∞ 100m~∞ |
Electrical/automatic |
| 40~200 continuous zoom |
2.0 | 3.7~4.8μm | 13.68°×10.96°~2.75°×2.2° | 640*512,15μm 320*256,30μm |
10m~∞ 50m~∞ |
Electrical/automatic |
| 60~600 continuous zoom |
2.0 | 3.7~4.8μm | 9.15°×7.32°~0.91°×0.73° | 640*512,15μm 320*256,30μm |
5m~∞ 500m~∞ |
Electrical/automatic |
| MWIR Cooled Spherical Vision Lenses | |||||||
| Focal length | F-number | Spectral range | FOV (H×V) | Detector specification |
Turret speed | Focusing distance |
Focusing mode |
| 200mm | 2.0 | 3.7~4.8μm | 4.58°×3.66° | 640*512,25μm | 360°/s | 10m~∞ | Electrical/automatic |
| 40~360 continuous zoom |
4.0 | 3.7~4.8μm | 27°×21.7° ~1.52°×1.22° |
640*512,15μm 320*256,30μm |
60mm focal length,360°/s 180mm focal length,120°/s 360mm focal length,60°/s |
10m~∞ 100m~∞ |
Electrical/automatic |
| 50~500 continuous zoom |
2.0 | 3.7~4.8μm | 18.18°×14.59° ~1.83°×1.46° |
640*512,25μm 640*512,15μm 320*256,30μm |
100mm focal length,180°/s 200mm focal length,120°/s 360mm focal length,90°/s |
10m~∞ 100m~∞ |
Electrical/a |
