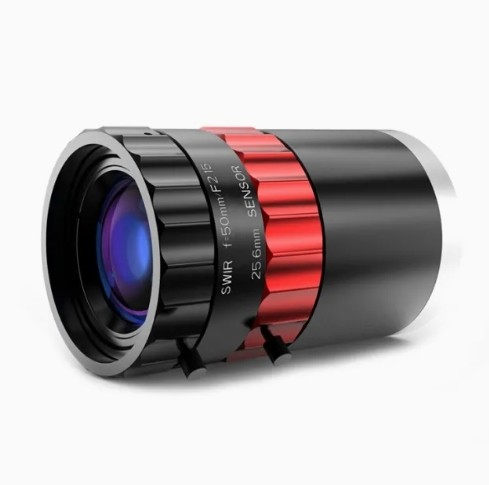

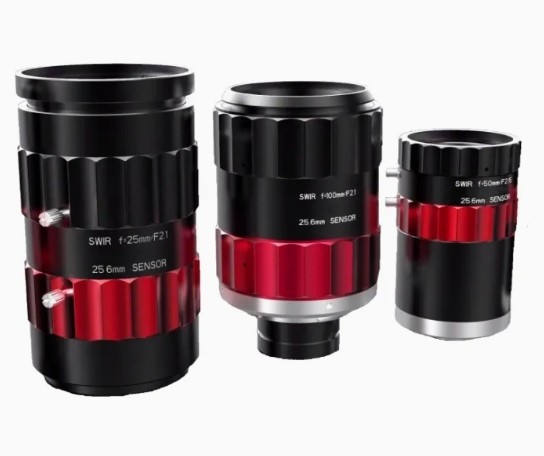

SWIR lenses
Product Introduction
SWIR lenses are prime and zoom lenses specially designed for shortwave infrared band (SWIR,0.9~1.7um), characterized by large apertures, low distortion and high-resolution imaging among others. It can be used in a variety of SWIR imaging applications such as all-weather monitoring, industrial detection, material sorting, hyperspectral imaging and machine vision.
The production and development can be customized according to the client's requirements.
Technical Indicators
|
Focal length |
F-number |
Spectral range |
FOV(H×V) |
Detector specification |
Focusing mode |
|
25mm |
1.4 |
0.9~1.7μm |
21.7°×17.4° |
640*512,15μm |
manual-operated/ Electrical-operated |
|
50mm |
1.2 |
0.9~1.7μm |
10.97°×8.78° |
640*512,15μm |
manual-operated/ Electrical-operated |
|
60/150mm dual FOVs |
2.0 |
0.9~1.7μm |
9.15°×7.32°/3.67°×2.93° |
640*512,15μm |
manual-operated/ Electrical-operated |
|
25~300mm continuous zoom |
2.8-3.2 |
0.9~1.7μm |
21.74°×17.47°~1.83°×1.47° |
640*512,15μm |
Electrical-operated |
