Product Description

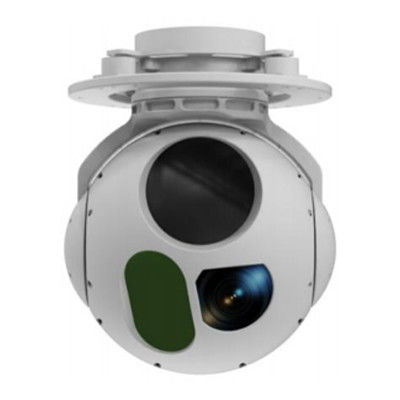

UND220TC Two-axis UAV Photoelectric Pod Essential For Positioning Tasks
Product Overview
The UND220TC is a medium-sized two-axis pod series featuring long-range capability with compact dimensions (20Kg-2Kg weight range). This advanced system integrates multiple payloads including uncooled/cooled infrared thermal imagers, continuous zoom visible light cameras, and laser rangefinders/photometers, combined with a two-axis servo image stabilization platform and AI intelligent image processing unit.
Key Features
- Compact design: Smaller size and weight without compromising range
- Advanced stabilization: High stability and tracking accuracy
- Modular configuration: Multiple payload combinations available
- AI capabilities: Intelligent image processing and recognition
- Multi-function operation: Servo stabilization, automatic target recognition and tracking, optical/electronic zoom
Applications
Ideal for various operational scenarios including reconnaissance, police security, line inspection, emergency rescue, firefighting and disaster relief, and accident investigation.
Technical Specifications
| Model | UND220TC (Two-axis three-optical pod) |
|---|---|
| Visible Light Camera | 2 million pixels, 30x optical zoom, 60x hybrid zoom |
| Visible Light Field of View | 63.7°x35.8°~2.3°x1.3°/4.3mm~129mm |
| Thermal Imager | 640x512 75mm, 12μm |
| Thermal Imager Field of View | 5.9°x4.7° |
| Laser Ranging | 20~6000m |
| Laser Irradiation | 40mJ |
| Control Mode | RS422, UDP |
| Video Interface | SDI, 100-megabit network |
| Local Storage | ≤128G memory card (MicroSD card) |
| Power Supply | 20~32V |
| Net Weight | 5KG |
| Product Size | 220mmx237mmx295mm |
| Main Functions | Day/night operation, AI recognition, automatic tracking, flight control data reception, target positioning, laser irradiation |
