3Kg 2 Axis Multiple Spectral Electro Optical Camera Tracking System UAV Payload UND-190TA Two-axis Three Light UAV Photoelectric Pod For Your Lighting Requirements

  • 3Kg 2 Axis Multiple Spectral Electro Optical Camera Tracking System UAV Payload UND-190TA Two-axis Three Light UAV Photoelectric Pod For Your Lighting Requirements
  • 3Kg 2 Axis Multiple Spectral Electro Optical Camera Tracking System UAV Payload UND-190TA Two-axis Three Light UAV Photoelectric Pod For Your Lighting Requirements
Place of Origin China
Brand Name UND
Model Number 190T
Minimum Order Quantity 1
Price Please consult a sales engineer
Delivery Time 5-8 days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

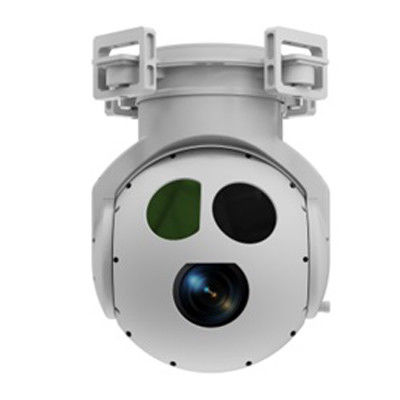

UND-190TA Two-axis three-light pod

Product Introduction

The medium-sized two-axis pod series has a long range, medium size and a weight of 20Kg-2Kg. It integrates multi-light payloads (uncooled infrared thermal imager or cooled infrared thermal imager, continuous zoom visible light camera, laser rangefinder or laser photometer), two-axis servo image stabilization platform and AI intelligent image processing unit. It has servo stabilization, automatic target recognition, automatic image tracking, visible light and infrared optical zoom, electronic zoom and other functions. It is suitable for various medium-sized fixed-wing drones and multi-rotor drones.

Product Features

It has a smaller size and weight at the same range.

It has high stability and accuracy.

A variety of payload configurations can be freely combined.

It has AI function.

Application Scenarios

It can be used for reconnaissance, police security, line inspection, emergency rescue, firefighting and disaster relief, and accident investigation.

3Kg 2 Axis Multiple Spectral Electro Optical Camera Tracking System UAV Payload UND-190TA Two-axis Three Light UAV Photoelectric Pod For Your Lighting Requirements 0

Technical Parameters


Model UND190TA
(Two-axis and three-optical pod)
Visible light camera 2 million pixels, 30x optical zoom,
60x hybrid zoom
Visible light field of view
Angle/focal length		 63.7°x35.8°~2.3°x1.3°/ 4.3mm~129mm
Thermal imager 640x512
75mm focal length, 12μm
The field of view
of the thermal imager		 5.9°x4.7°
Laser ranging 20~6000m
Control mode RS422,UDP
Video interface 100-megabit network
Local storage ≤128G memory card (MicroSD card)
Power supply 20~32V
Net weight 4.8KG(4kg optional)
Product size 190mmx200mmx274mm
Main functions Day and night operation, AI recognition,
automatic tracking, flight control data reception, target positioning
