Product Details
Highlight

vox thermal imaging scope

,

wifi thermal imaging scope

,

wifi digital night vision scope

Leave a Message
Product Description



Multi Purpose Thermal Imaging Scope

Frame rate adjustment (auto/manual)

Supported electronic compass/motion sensor

Support laser rangefinder

Wi-Fi real-time image transmission

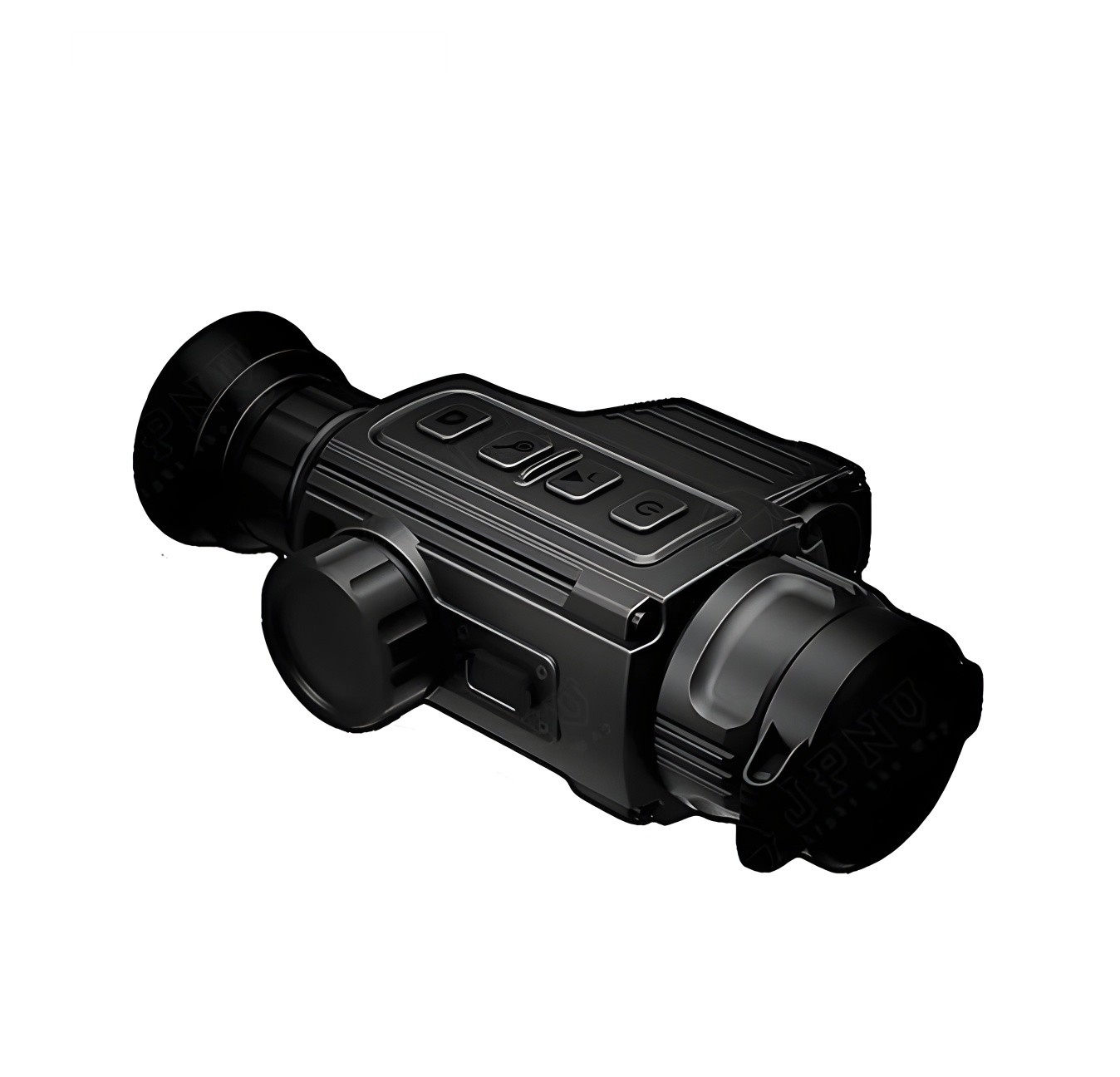

WiFi VoX Thermal Imaging Scope 384×288 640×512 Digital Night Vision Scope 0

Products Description

The RS6-5 Multi Purpose Thermal lmaging Scope is the perfect tool for any professional who requires high-quality imaging solutions in challenging environments. The device comes equipped with a VoX detector that offers exceptional thermal imaging capabilities, providing the user with superior image quality and accuracy.



In addition to its advanced thermal imaging capabilities, the RS6-5 scope also features a laser rangefinder with a range of 10-1000 meters, providing accurate target acquisition. The scope allows manual focus adjustment and supports multiple display modes, including white-hot, black-hot, iron-red, red-hot, and forest display modes. Each mode is optimized to provide the best possible imagery based on different viewing conditions, ensuring maximum visibility in any situation.



The small size and lightweight design of the RS6-5 make it highly portable and easy to use in various scenarios. It is ideal for use in reconnaissance, surveillance, search and rescue, and other applications that require 24-hour full-scene imaging capabilities.



The device's performance is not hindered by any obstacles, making it perfect for use in harsh environments such as dense forests or urban areas with limited lighting. The RS6-5 Multi Purpose Thermal lmaging Scope is designed for use in a wide range of scenarios, making it a popular choice among hunters, wildlife enthusiasts, and outdoor adventurers.



In conclusion, the RS6-5 Multi Purpose Thermal lmaging Scope is an excellent device that combines advanced technology with exceptional functionality. Its features, including the VoX detector, laser rangefinder, manual focus adjustment, support for multiple display modes, and small, lightweight design, make it the perfect tool for 24-hour reconnaissance. Whether you are in a tactical situation, conducting wildlife research, or working in harsh outdoor environments, the RS6-5 is the ultimate companion for your imaging needs.

WiFi VoX Thermal Imaging Scope 384×288 640×512 Digital Night Vision Scope 1

WiFi VoX Thermal Imaging Scope 384×288 640×512 Digital Night Vision Scope 2

WiFi VoX Thermal Imaging Scope 384×288 640×512 Digital Night Vision Scope 3

Technical Parameters

Item RS6-5-19-384 RS6-5-35-384 RS6-5-35-640 RS6-5-50-640
Detector Type VoX
Pixel 384×288 640×512
Pixel Spacing 12um
Wavelength Range 8~14um
NETD ≤35mk
IR Lens Focus 19mm, F1.0 35mm, F1.0 35mm, F1.0 50mm, F1.0
FOV 13.8°×10.4° 7.5°×5.7° 12.5°×10.0° 8.8°×7.0°
Focusing Method Manual
Display OLED, 0.39", 1440×1080
Image Display Eyepiece Parameter 40mm
Magnification 1.77X~7.08X 3.26X~13.04X 1.91X~7.64X 2.72X~10.88X
Diopter Adjustment -5~+5
Laser Rangefinder Can be extended (Optional), ranging from 10 to 1000m

Electronic Compass/

Motion Sensor

Support
Wi-Fi Support
Image Performance Frame Rate 50Hz
Image Correction Auto/Manual
E-Zoom 1X, 2X, 4X
Hot Spot Tracking Support
Cross Reticle Support
Palette White Heat, Black Heat, Iron Red, Red Heat, Forests
Image Transmission Wi-Fi real-time image transmission, photography and video
Image Storage Memory 32GB
Photo & Video Support
Power System Battery Type Single standard 26500 rechargeable lithium battery replaceable
Battery Working Time >5h
Charging Method Support online charging
External Power Supply DC 5V/2A
Interface Data Interface Type-C
Installation Interface 3 standard fixing screw holes & different optional mounting mount
Physical Characteristic

Dimension(mm)

(With Laser)

≤165×80×65/

≤165×110×65

≤190×80×65/

≤190×110×65

≤190×80×65/

≤190×110×65

≤200×80×65/

≤200×110×65

Weight(With Laser) ≤470g/≤532g ≤520g/≤582g ≤525g/≤587g ≤570g/≤632g
Environment Parameter Working Temperature -30℃~ +55℃
Storage Temperature -40℃~+70℃
Max. Recoil Power 800g/ms
Capsulation IP66
Detection Distance Human(1.8×0.5) 750m 1400m 1400m 1900m
Vehicle(2.3×2.3) 1800m 2200m 2200m 3200m
Recognition Distance Human(1.8×0.5) 376m 700m 700m 1000m
Vehicle(2.3×2.3) 910m 1100m 1100m 1600m
