Heavy Front-Series Thermal Imaging Camera

IP67

Wireless image transmission

Water and dustproof

Single wheel operation

Can be connected in series, can be used alone

Super far sight

Probabilistic ranging

Products Description

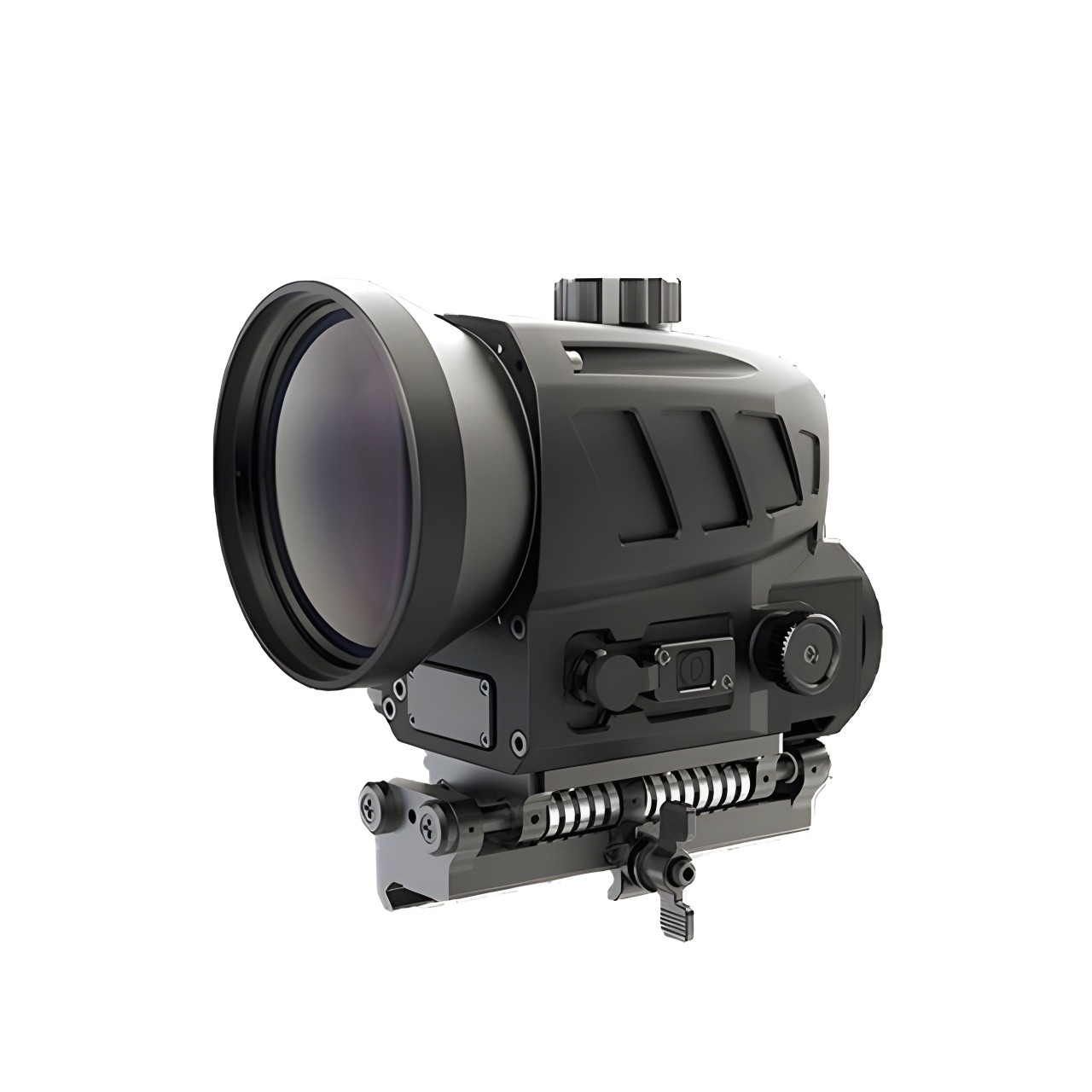

UND-CH6 heavy front-series thermal imaging camera is an advanced and highly specialized device that is widely used for monitoring and surveillance applications in different sectors. This thermal Imaging Camera is equipped with superior features, such as a detector resolution of 640×512 pixels, pixel pitch of 12μm, a working wavelength range of 8-14μm, and a lens with a field of view angle of 58°×47° and a focal length of 75mm.

One of the most notable features of the UND-CH6 is its high-quality OLED display screen with a resolution of 800×600, which allows for clear and bright viewing of images captured by the device. Additionally, the device has 3.2x eyepiece magnification to inspect and detect targets at close range.

The thermal imaging camera provides exceptional functionality to users with its various modes and settings. For instance, the zero position setting function enables accurate shooting by eliminating any errors caused by misalignment between the device and the target, while the probability ranging function provides distance estimation for personnel and vehicles as a reference point. The scene setting function adapts to the user's specific needs and allows for manual adjustment when necessary.

The electronic zoom feature of the UND-CH6 heavy front-series thermal imaging camera includes multiple magnification settings such as 1x, 2x, 3x, and 4x. Finally, the device includes several image modes, including black hot, self-heating, red hot, rainbow, and color highlighting modes, which assist users in different applications.

UND-CH6 is a state-of-the-art device that is designed to operate under extreme conditions. With a working temperature range of -40℃ to +55℃ and an IP67 protection rating, this thermal imaging camera is well-suited for outdoor use in harsh environments.

One of the key features of the thermal imaging camera is its reliability. It is able to withstand impacts of up to 1800g at a frequency of 2Hz/0.2ms, which makes it an ideal choice for use in demanding applications such as search and rescue missions, and firefighting.

In summary, the UND-CH6 heavy front-series thermal imaging camera is a cutting-edge device that provides exceptional thermal imaging capabilities, high-performance lens, a detailed and clear display, and various modes for specialized applications. With its high reliability and durability, it is an ideal choice for professionals in different sectors such as security, rescue, and industrial inspection.
