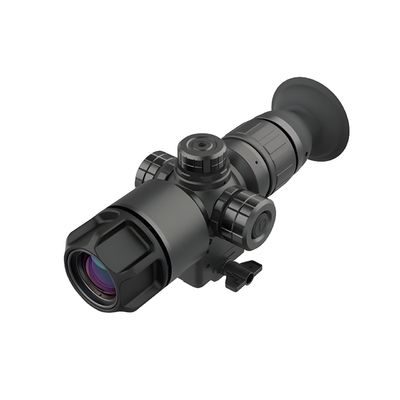

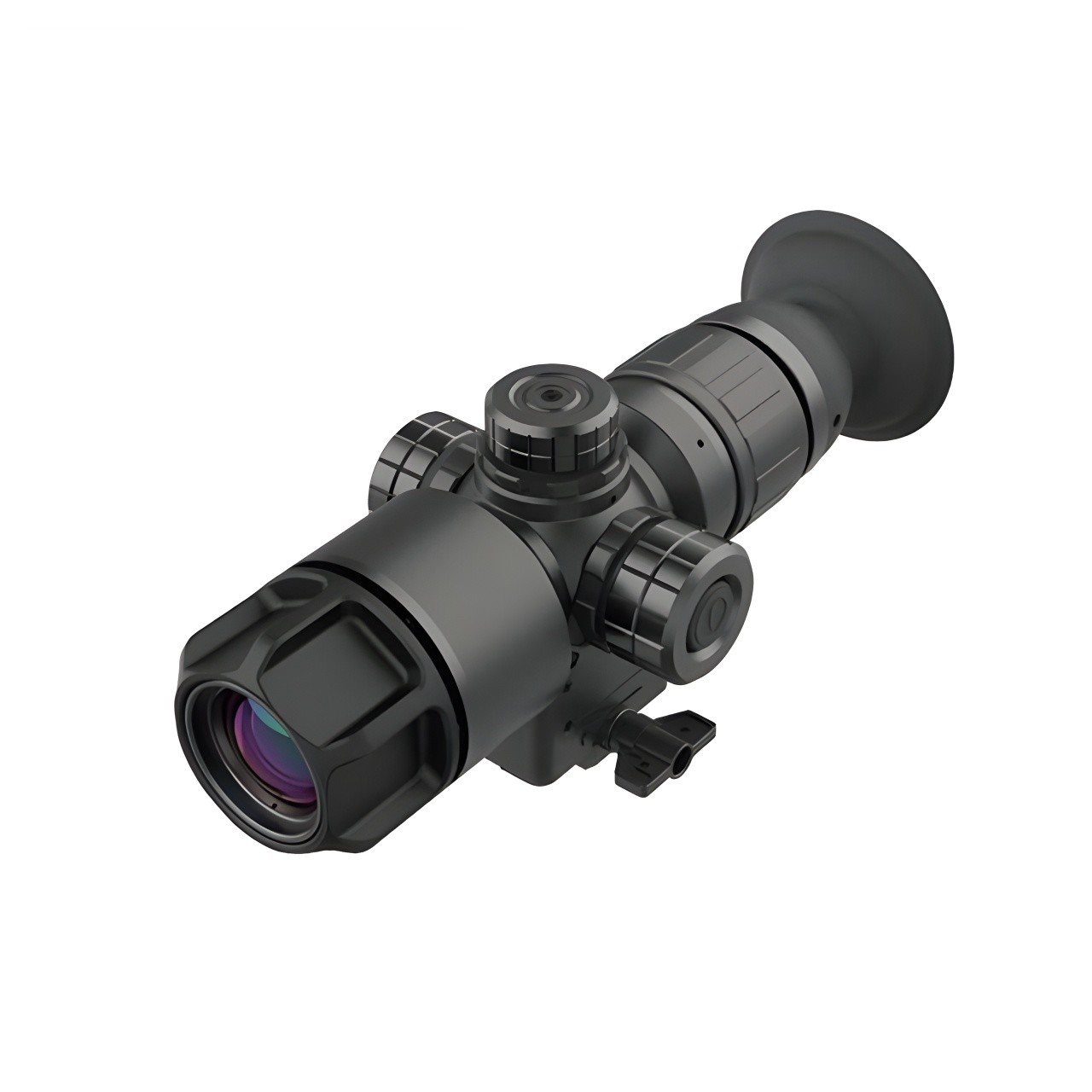

Dust Proof Night Sight Scope Water Resistant 384 X 288 Light Thermal Scope
Light-Type Thermal Scope Features
- Wireless Image Transmission
- Water and Dust Proof (IP67 Encapsulation)
- Single Roller Operating System
- Eye Cup Preventing Light Leaking
- High Reliability with Shock Resistance (300g / 4Hz 1ms)
- Ultra-Far Vision Reticle ranging
Product Description
The UNDA-L Series Light-type Thermal Scope utilizes advanced infrared thermal imaging technology, offering high accuracy and real-time imaging capabilities for civilian applications. Available with 25mm or 35mm lens options, this versatile device provides flexible imaging solutions for various scenarios.
Key operational features include zero position setting and accuracy adjustment for reliable performance, probability of firing calculations using personnel/vehicle reference points, and multiple digital zoom options (1x-4x) for enhanced image clarity.
The scope supports five imaging modes (black heat, white hot, red hot, red face, rainbow) for optimal visibility in different conditions. With a lightweight 450g design and 8-hour battery life, it's ideal for extended use in harsh environments.
Technical Specifications
| Core Module | ||
|---|---|---|
| Resolution | 384×288 | |
| Pixel Pitch | 17μm | |
| Spectral Band | 8~14μm | |
| Lens | UNDA-L325 | UNDA-L335 |
| FOV | 14.9°×11.2° | 10.6°×8° |
| Focal Length | 25mm | 35mm |
| Display | ||
| Type | 0.38' OLED 800×600 | |
| Eyepiece Diopter | -5~+3 | |
| Magnification | 17x | |
| Eye Relief | 30mm | |
| Performance Data | ||
| Human Target (1.7m×0.5m) | Identification: 200m Recognition: 400m Detection: 1600m |
Identification: 300m Recognition: 600m Detection: 2300m |
| Vehicle Target (2.3m×2.3m) | Identification: 300m Recognition: 600m Detection: 2400m |
Identification: 400m Recognition: 850m Detection: 3400m |
| Physical Parameters | ||
| Power Supply | 18650 Battery | |
| Weight | ≤450g | |
| Battery Life | ≥8 hours | |
| Dimensions | 190×76×82mm | |
| Operating Temperature | -40℃ to +55℃ | |
Interface Options
The UNDA-L Series features multiple connectivity options including:
- External Power Supply
- Analog Video Output
- RS232 Serial Interface
- WIFI Wireless Connectivity
