1024 X 768 12um Night Vision Telescopes Multi Spectral Thermal Scope Infrared Thermal Scopes
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 12um night vision telescopes,thermal scope infrared,multi spectral thermal scope |
||
|---|---|---|---|
Product Description

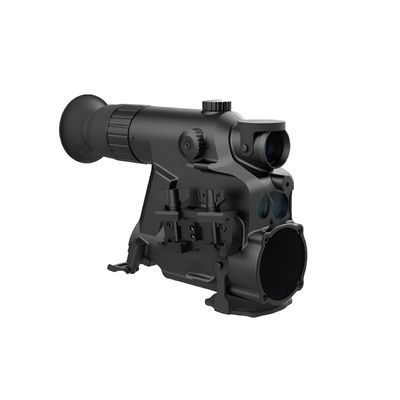

UNDA-E Multi-spectral Thermal Scope
Advanced Multi-Sensor Imaging Solution
Key Features
- 1024×768 12μm thermal detector with 50mm lens
- Multi-spectral thermal fusion technology
- Operates in complete darkness and daylight conditions
- Human-eye safe laser rangefinder (up to 3km range)
- Compact design with only 1350g weight (including batteries)
- IP67 waterproof rating and -40℃ to 55℃ operating range
Professional-Grade Thermal Imaging
The UNDA-E Multi-spectral Thermal Scope is engineered for extreme environmental conditions, making it ideal for industrial monitoring, scientific research, and security applications. Its compact design ensures portability without compromising performance.
Superior Optical Performance
Equipped with a high-resolution 1024×768 12μm detector and matched 50mm athermalized lens, the UNDA-E provides exceptional long-range imaging with a 15.02°×11.27° field of view. The integrated white light channel offers 4X magnification for comprehensive target identification.
Advanced Functionality
The system automatically collects environmental data including temperature, altitude, and tilt angles. Its power-efficient design provides up to 12 hours of operation with three 18650 batteries, while maintaining full functionality even without external power.
Technical Specifications
| Thermal Module | ||
|---|---|---|
| Resolution | 1024×768 | |
| Pixel Pitch | 12μm | |
| Operating Wavelength | 8-14μm | |
| FOV | 15.02°×11.27° | |
| Focal Length | 50mm (Athermalized) | |
| Performance Metrics | ||
|---|---|---|
| Vehicle Target Recognition | ≥2500m (Thermal) / ≥3500m (Day) | |
| Laser Rangefinder Accuracy | ±1m at 1km | |
| Battery Life | ≥12 hours | |
| Environmental Rating | IP67, -40℃ to 55℃ | |
Operational Versatility
The UNDA-E combines thermal imaging, white light observation, and precise laser rangefinding in one compact system. With multiple display modes, digital zoom (1-4X), and adaptive scene settings, it adapts to diverse operational requirements from industrial inspections to remote surveillance.
