17um Night Sight Scope High Sensitivity Micro Thermal Imaging Scope
Multifunctional Micro Thermal Imaging Scope
- High sensitivity thermal imaging
- Compact and lightweight design
- High refresh rate for smooth operation
- Exceptional stability in various conditions

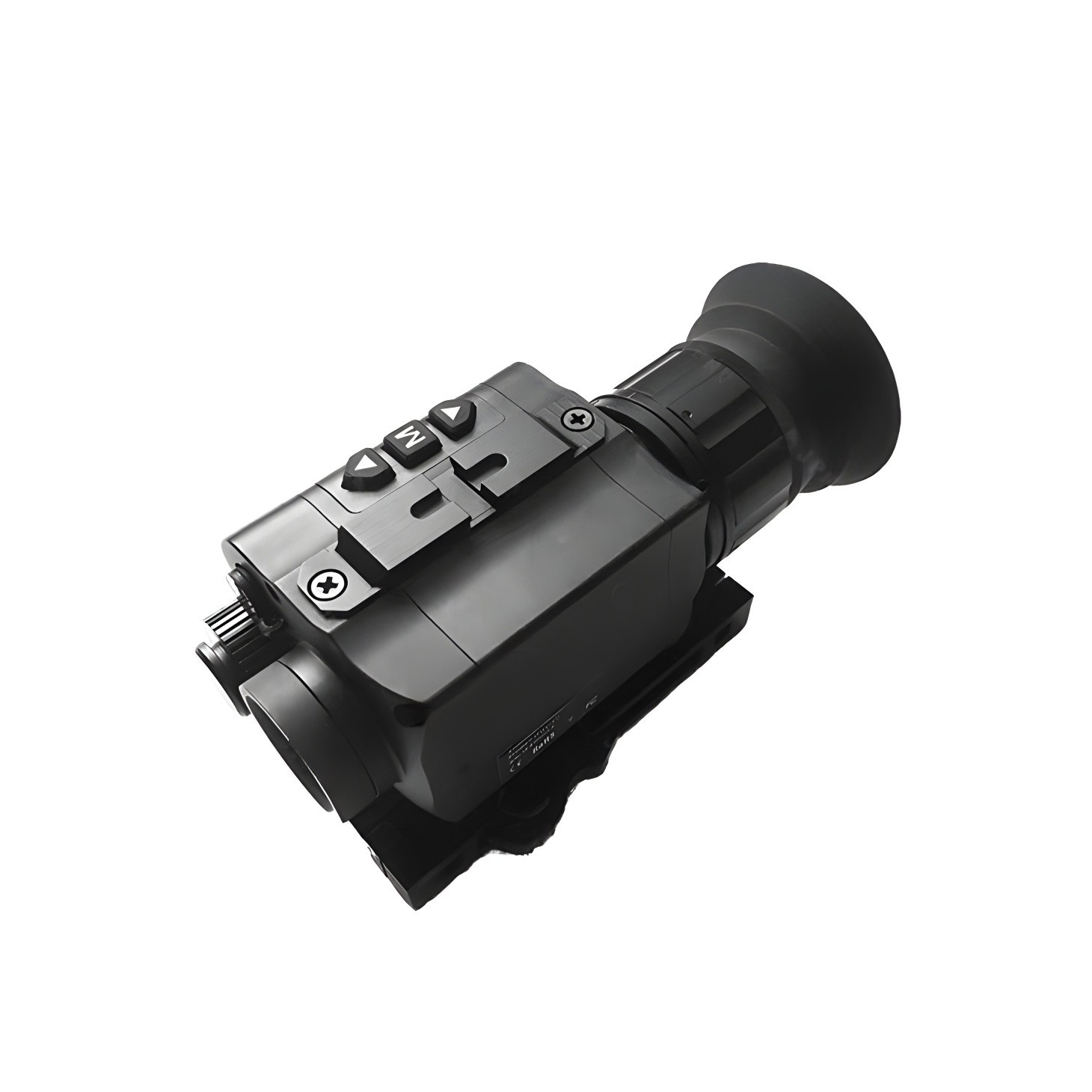

The TH-4GD Multifunctional Micro Thermal Imaging Scope combines compact design with professional performance. Featuring a high-quality imported polycrystalline silicon detector and advanced non-uniformity correction technology, this scope delivers superior sensitivity, high refresh rates, and exceptional stability. Multiple display modes including white hot, black hot, iron red, and pseudocolor provide optimal viewing for any situation.
Designed for versatility, the TH-4GD can be used as a head-mounted display, handheld device, or mounted via Picatinny rail. This makes it ideal for hunting, search and rescue operations, law enforcement, and security applications. The intuitive interface and reliable performance ensure effective operation in critical situations.
Technical Specifications
| Model | TH-4GD Thermal Imaging Scope |
| Detector | 17μm, 384×288, a-Si Microbolometer, <50mk |
| Lens | 19mm, F1.0 |
| Field of View | 19.6°×14.7° |
| Magnification | 1.4-7.8x |
| Display | 1024×768 OLED |
| Frame Rate | 50Hz |
| Battery Life | 4 hours (18650 Lithium Battery) |
| Weight | ≤380g (with battery) |
| Dimensions | ≤110×58×42 mm |
| Detection Range (Human) | 470m detection / 210m recognition |
| Detection Range (Vehicle) | 700m detection / 310m recognition |
| Environmental Rating | IP67 protection, -40°C to +60°C operation |
