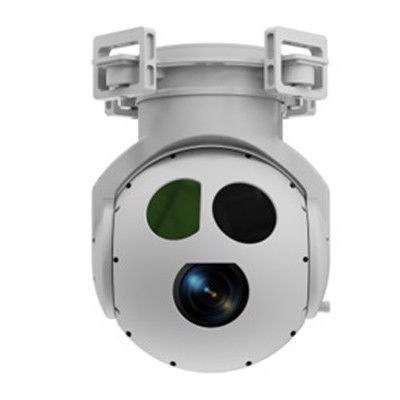

UND-190TA Two-axis Three Light UAV Photoelectric Pod
Product Overview
The UND-190TA is a medium-sized two-axis pod featuring long-range capability with compact dimensions (20Kg-2Kg weight range). This advanced system integrates multiple payload options including uncooled/cooled infrared thermal imagers, continuous zoom visible light cameras, and laser rangefinders/photometers, combined with a two-axis servo image stabilization platform and AI-powered image processing unit.
Key Features
- Compact design: Superior range-to-size ratio
- High precision: Exceptional stability and accuracy
- Modular configuration: Flexible payload combinations
- AI integration: Advanced image processing capabilities
- Servo stabilization system
- Automatic target recognition and tracking
- Dual optical/electronic zoom functionality
Applications
Ideal for reconnaissance, law enforcement, infrastructure inspection, emergency response, firefighting operations, and accident investigation scenarios.
Technical Specifications
| Model | UND190TA (Two-axis three-optical pod) |
|---|---|
| Visible Light Camera | 2 million pixels, 30x optical zoom, 60x hybrid zoom |
| Visible Light FOV | 63.7°x35.8°~2.3°x1.3°/4.3mm~129mm |
| Thermal Imager | 640x512 resolution, 75mm focal length, 12μm |
| Thermal FOV | 5.9°x4.7° |
| Laser Ranging | 20~6000m capability |
| Control Interface | RS422, UDP protocols |
| Video Output | 100-megabit network |
| Storage | ≤128G MicroSD card |
| Power Requirements | 20~32V DC |
| Weight | 4.8KG (4kg optional) |
| Dimensions | 190mm x 200mm x 274mm |
| Operational Features | Day/night operation, AI recognition, automatic tracking, flight control integration, target positioning |
