Small Three Axis Three Light Pod Perfect For Long And Short-Range Surveillance Visible Light Infrared
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Short Range Surveillance Pod,Visible Light Infrared Surveillance Pod,Small Three Axis Three Light Pod |
||
|---|---|---|---|
Product Description

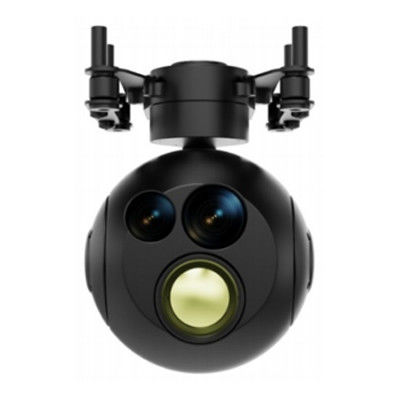

UND-O70TA Small Three-Axis Three-Light Pod
Long and Short-Range Surveillance with Visible Light & Infrared
Product Overview
The small multi-spectral image stabilization pod features a compact design weighing less than 5kg. This advanced system integrates multiple optical payloads including visible light cameras, starlight-level visible light cameras, and high-resolution thermal imagers with a two-axis servo stabilization platform and AI-powered image processing unit.
Key Features
- Compact and lightweight design for drone integration
- Advanced servo stabilization system
- AI-powered image processing capabilities
- Day/night operation with multi-spectral imaging
- Automatic target recognition and tracking
- Optical and electronic zoom functionality
Applications
Ideal for various surveillance and inspection scenarios including:
- Law enforcement and security operations
- Power line and infrastructure inspection
- Search and rescue missions
- Firefighting and disaster response
- Accident scene investigation
Technical Specifications
| Model | UND070TA Small Three-Axis Three-Light Pod |
|---|---|
| Long Focal Length Visible Light Camera | 2560x1440 resolution (4 million pixels) |
| Field of View/Focal Length | 26.1°x14.9°, 16mm |
| Short-Focus Visible Light Camera | 2560x1440 resolution (4 million pixels) |
| Short-Focus Field of View | 79.7°x50.3°, 4.45mm |
| Thermal Imager | 640x512 resolution, 25mm focal length, 12μm |
| Thermal Field of View | 17.5°x13.1° |
| Control Interface | RS232, RS422, UDP |
| Video Interface | 100-megabit Network |
| Storage | ≤128G Micro SD card |
| Power Requirements | 12~32V |
| Dimensions | 72mm x 90mm x 98mm |
| Weight | 300g |
| Operational Features | Day/night operation, AI recognition, automatic tracking, flight control data reception |
