xProduct Details
| Highlight | UND-S140TA30x Visible Light UAV Photoelectric Pod,35mm Infrared UAV Photoelectric Pod,3km Ranging UAV Photoelectric Pod |
||
|---|---|---|---|
Product Description

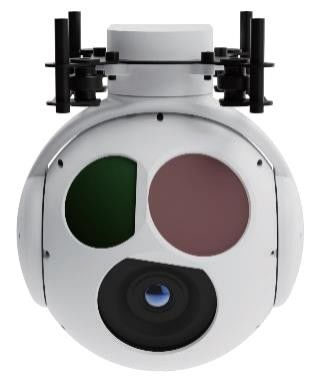

UND-S140TA30x Visible Light + 35mm Infrared + 3km Ranging UAV Photoelectric Pod
Product Overview
The UND-S140TA30x is a compact multi-spectral image stabilization pod weighing less than 5Kg. This advanced system integrates multiple optical payloads including visible light cameras, starlight-level visible light cameras, and high-resolution thermal imagers with a two-axis servo stabilization platform and AI-powered image processing capabilities.
Key Features
- Compact and lightweight design for easy integration
- Advanced servo stabilization for clear imaging
- AI-powered automatic target recognition and tracking
- Optical and electronic zoom capabilities
- Day/night operation with multi-spectral imaging
Applications
Ideal for various UAV platforms including small-to-medium fixed-wing and multirotor drones. Perfect for:
- Surveillance and reconnaissance
- Law enforcement and security operations
- Power line and infrastructure inspection
- Emergency response and disaster relief
- Firefighting and accident investigation
Technical Specifications
| Model | UND140TA 30x visible light +35mm infrared +3km ranging |
|---|---|
| Visible Light Camera | 2 million pixels, 30x optical zoom, 60x hybrid zoom |
| Visible Light FOV | 63.7°x35.8°~2.3°x1.3°/4.3mm~129mm |
| Thermal Imager | 640*512 resolution, 35mm/50mm focal length, 12μm |
| Thermal FOV | 12.5°x10°/8.8°x7° |
| Laser Ranging | 20~3000m |
| Control Interface | RS232, UART, RS422, UDP |
| Video Output | HD-SDI, 100-megabit network |
| Storage | ≤128G MicroSD card |
| Power Supply | 20~32V |
| Dimensions | 140mmx152mmx188mm |
| Weight | 1.3KG |
| Core Capabilities | Day/night operation, AI recognition, automatic tracking, flight control data reception, target positioning |
