640×512 LWIR Sterling Cooled Thermal Imaging Module
Product Overview

The LWIR cooled thermal imager features a high sensitivity MCT focal plane detector with Sterling cooling technology, offering a spectral response range of 7.7μm-9.3μm. Advanced image processing including adaptive non-uniformity correction, noise filtering, and automatic dimming ensures superior image quality. Its compact modular design enables easy integration for 24/7 operation across diverse applications.

Key Features
  • Adaptive non-uniformity correction technology
  • High resolution 640×512 format with frame rates up to 200Hz
  • Excellent linearity, stability and repeatability for radiation measurement
  • Multiple video outputs: PAL/NTSC/CameraLink/GigE/SDI/Fiber Optics
  • Customizable broad spectrum (7.7μm~11.1μm) and high frame rates
Applications

Industrial monitoring, fire detection, panoramic search, thermal measurement, scientific research, and infrared recognition systems.

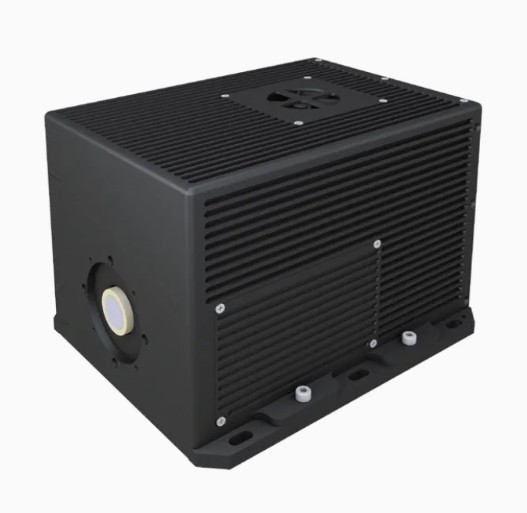

640*512 Lwir Sterling Cooled Thermal Imaging Module 0
Technical Specifications
Core Performance
Parameter Specification
Resolution 640×512
Pixel Size 15μm/25μm
F-NUMBER 2
Detector Material HgCdTe (MCT)
Spectral Range 7.7μm~9.3μm
NETD ≤22mK @25ºC
Operational Features
Feature Specification
Cooling Method Sterling
Cooling Duration <8min (room temperature)
Frame Rate 50Hz/100Hz
Exposure Time 50μs~1300μs
Image Processing Dimming, enhancement, filtering, non-uniformity correction
Physical Properties
Dimension Standard Compact
Size ≤180mm×151.5mm×130mm ≤150mm×80mm×91mm
Weight <3kg <1kg
Power Consumption ≤25W @20ºC ≤17W @20ºC

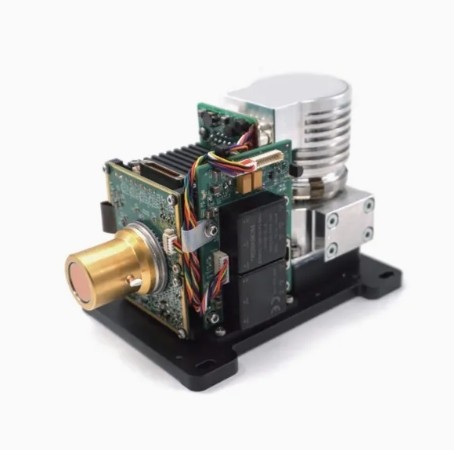

640*512 Lwir Sterling Cooled Thermal Imaging Module 1
