Product Description

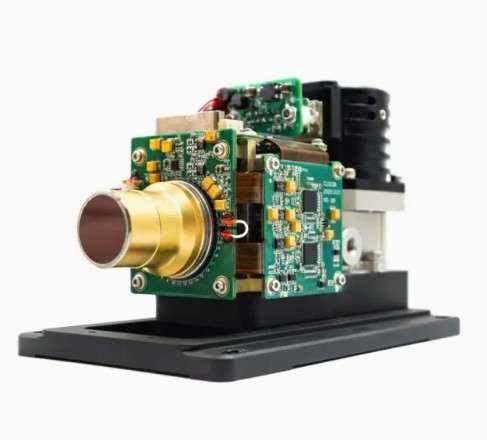

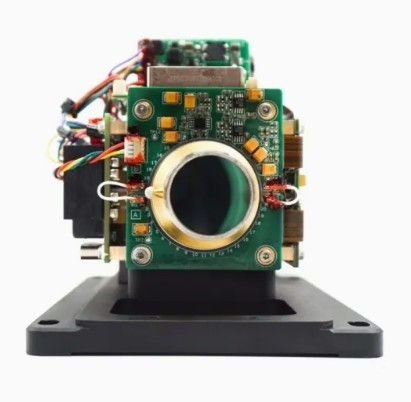

MID Wave Stirling Cooler Infrared Thermal Imaging Camera Movement
Product Overview
The MWIR thermal imaging core utilizes a compact, high-sensitivity MCT focal plane detector with Stirling cooling. Featuring a 15 μm pixel size and spectral response range of 3.7 μm to 4.8 μm, this system incorporates adaptive non-uniformity correction technology and intelligent image processing algorithms for superior performance.
Key Features
- Adaptive non-uniformity correction technology
- 640×512 resolution with frame rates up to 100 Hz
- High linearity, stability, and repeatability for radiation characteristic measurements
- Multiple video outputs: PAL/NTSC/CameraLink/GigE
- Customizable for wide spectral bands, high frame rates, and specialized requirements
- Compact modular design for easy integration
- Rich interfaces with high reliability and expandability
Technical Specifications
| Model Number | UND-MW640-15LEO | UND-MW640-15 |
|---|---|---|
| Resolution | 640×512 | |
| Pixel Pitch | 15μm | |
| FNo | 4.0/5.5 | 2.04.0 |
| Detector Material | HgCdTe | |
| Spectral Range | 3.7μm-4.8μm | |
| NETD | ≤20mK@25ºC | |
| Cooler Type | Stirling cooled | |
| Cooling Time | <8min | |
| Operating Temperature | -40ºC~+65ºC | |
| Storage Temperature | -45ºC~+70ºC | |
| Shock Resistance | Acceleration of 30g, half-sine distribution of 11ms | |
| Vibration Resistance | 5-500Hz, 2.73g, 15min, 3 axis | |
| Dimensions | ≤127×113×89mm | ≤107×146.5×120mm |
| Weight | <2kg | |
| Input Voltage | 24±2V | |
| Power Consumption | ≤25W @20C | |
Applications
The MWIR thermal imaging core is designed for diverse applications including:
- Border protection and surveillance
- Industrial monitoring and process control
- Fire prevention and early warning systems
- Night vision equipment
- Radiation characteristic measurement
- Thermal imaging and targeting systems
- Air defense monitoring
- Scientific research applications
- Infrared identification systems
