Product Description

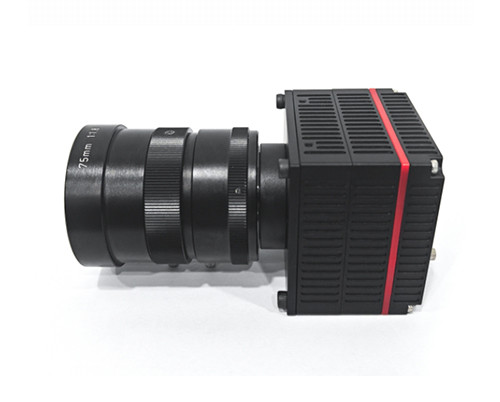

Industrial Short Wave Infrared Thermal Imaging Camera with Advanced Technology
Product Introduction
The Short-Wave Infrared (SWIR) camera features an InGaAs focal plane TEC cooling detector with 640×512 resolution, 15μm pixel pitch, and 0.9μm~1.7μm response wave. This advanced thermal imaging solution incorporates two-stage TEC deep cooling technology to effectively minimize readout noise.
Designed with integration and modularization in mind, this compact camera offers high sensitivity, small size, light weight, low power consumption, and multiple interface options for easy customer integration.
Applications
This versatile SWIR camera is suitable for diverse applications including:
- Border and maritime defense
- Laser detection and astronomical imaging
- Security monitoring and biomedical applications
- Industrial inspection and semiconductor testing
- Material screening, machine vision, and scientific research
Key Features
- TEC two-stage deep cooling with precise temperature control (up to 40°C difference)
- Advanced image processing including non-uniformity correction and blind pixel compensation
- Temporal and spatial domain filtering with Dynamic Data Enhancement (DDE) and Image Data Enhancement (IDE)
- Compact design with low power consumption
- High signal-to-noise ratio with low dark current and noise
Technical Specifications
| Model: UND-SW640-TEC | |
|---|---|
| Detector Performance | |
| Resolution/Pixel Pitch | 640×512, 15μm |
| Spectral Range | 0.9μm~1.7μm |
| Material | InGaAs |
| Cooler Type | TEC second stage |
| Function | |
| Frame Rate | 25Hz |
| External Trigger | RS422 |
| Integration Time | Manually adjustable |
| E-Zoom | ×2/×4 |
| Power Consumption | ≤5W@25℃ |
| Performance | |
| Non-linearity | ≤1% |
| Optical Non-uniformity | ≤2‰ |
| Dynamic Range | ≥63dB |
| Environmental Specifications | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+70℃ |
| Physical Characteristics | |
| Dimensions (L×W×H) | ≤51mm×55mm×55mm (excluding connector) |
| Weight | ≤180g |
This industrial-grade SWIR thermal imaging camera combines cutting-edge technology with rugged reliability, making it ideal for demanding applications across multiple industries.
