Product Description

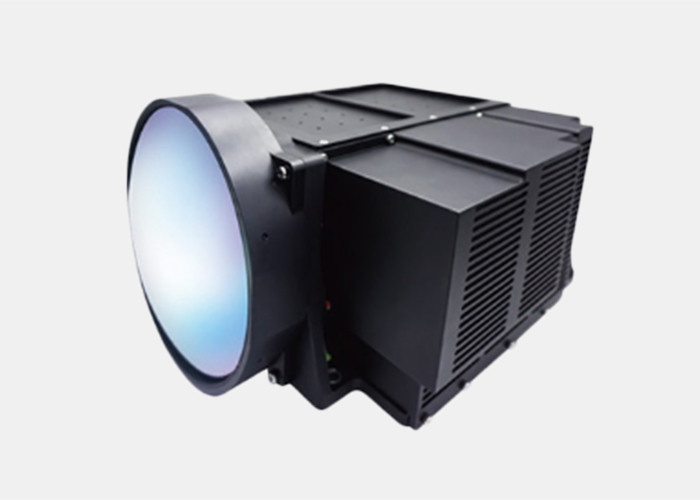

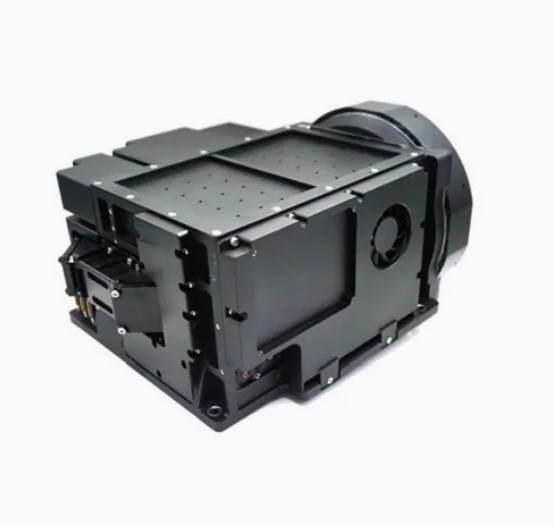

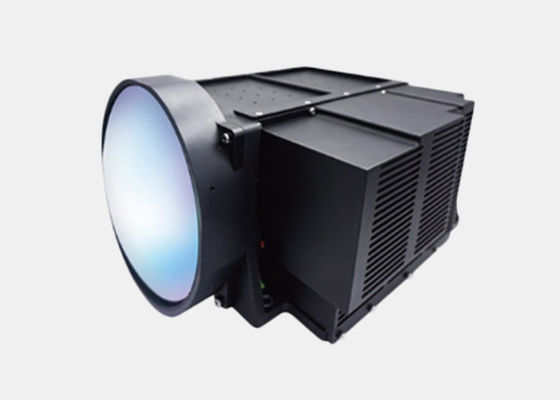

MID-Wave Infrared 20X Continuous Zoom Thermal Camera
The MWIR continuous zoom thermal camera combines a large zoom ratio continuous zoom lens with high-sensitivity imaging detection components. Designed for precision and durability, this thermal imaging solution delivers exceptional performance in demanding environments.
Key Features
- 30x optical zoom ratio for superior magnification capabilities
- High optical axis alignment consistency (less than 2 pixels)
- Compact, lightweight design with long focal length and long-range viewing
- Excellent environmental adaptability for operation in extreme temperatures (-45ºC to +70ºC)
Technical Specifications
| Performance Parameters | |
|---|---|
| Detector Resolution | 640×512 |
| F-Number | F4 |
| Spectral Range | 3.7μm~4.8μm |
| Operating Range | Identification distance of 2.3m×2.3m targets ≥20km |
| Field of View (FOV) | 24.6°×19.8°~0.5°×0.4° |
| FOV Switching Time | ≤8s |
| Optical Axis Consistency | < 2 pixels |
| MRTD | MRTD (33cyc/mrad)≤450mK |
| NETD | NETD≤30mK (75% FOV, time domain) |
| Weight | ≤9.5 kg |
| Power Consumption | ≤25W |
| Environmental Specifications | |
| Operating Temperature Range | -45ºC~+70ºC |
| Storage Temperature Range | -55ºC~+70ºC |
Advanced Functionality
The thermal camera features intelligent image processing including adaptive non-uniformity correction, noise filtering, wide dynamic range image enhancement, and automatic light adjustment. Additional capabilities include:
- Continuous zoom with sharp imaging throughout the range
- Advanced focus control with autofocus capability (≤3s)
- Comprehensive system diagnostics and temperature reporting
- State memory and accumulated work hours tracking
