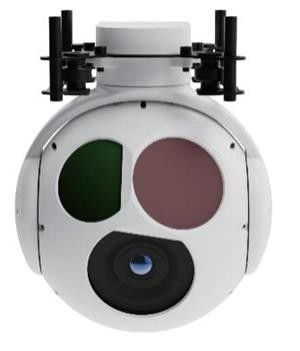

LWIR Electro Optical Camera UAV Sensor Payload For Vehicle Identification UAV Photoelectric Pod
UND-S140TA30x Visible Light + 35mm Infrared + 3km Ranging

The small multi-spectral image stabilization pod series features a compact design and lightweight construction (under 5Kg). This integrated system combines multiple optical payloads including a visible light camera, starlight-level visible light camera, and high-resolution thermal imager, along with a two-axis servo stabilization platform and AI intelligent image processing unit.

Key Features
  • Compact and lightweight design
  • Servo stabilization function
  • AI-powered intelligent processing
  • Day and night operation capability
  • Automatic target recognition and tracking
  • Optical and electronic zoom functionality
Application Scenarios

Ideal for various missions including investigation, police security, line inspection, emergency rescue, firefighting and disaster relief, and accident investigation.

LWIR Electro Optical Camera UAV Sensor Payload For Vehicle Identification UAV Photoelectric Pod 0
Technical Specifications
Model UND140TA
Configuration 30x visible light +35mm infrared +3km ranging
Visible light camera 2 million pixels, 30x optical zoom, 60x hybrid zoom
Visible light field of view 63.7°x35.8°~2.3°x1.3°/ 4.3mm~129mm
Thermal imager 640*512 resolution, 35mm/50mm focal length, 12μm
Thermal imager field of view 12.5°x10°/8.8°x7°
Laser ranging 20~3000m
Control mode RS232, UART, RS422, UDP
Video interface HD-SDI, 100-megabit network
Local storage ≤128G memory card (MicroSD card)
Power supply 20~32V
Net weight 1.3KG
Product size 140mmx152mmx188mm
Main functions Day and night operation, AI recognition, automatic tracking, flight control data reception, target positioning
Compatibility

Suitable for various small and medium-sized fixed-wing drones and multi-rotor drones.
