xProduct Details
Product Description

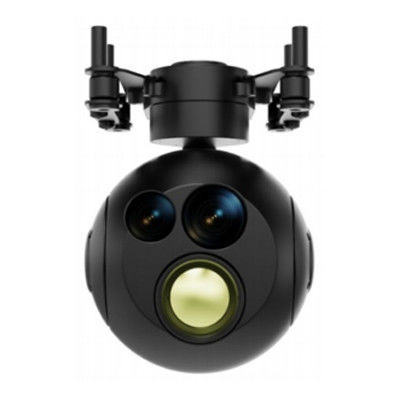

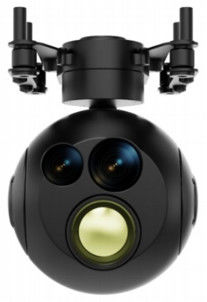

UND-070S/070A Micro Three-Axis Dual-Optical Stabilized Image Pod
Product Overview
The micro multi-spectral stabilized pod series features an ultra-compact design weighing less than 200g. This advanced imaging system integrates multiple optical payloads including a high-resolution visible light camera, starlight-level low-light camera, and thermal imager, combined with a three-axis stabilization platform and AI processing unit.
Key Features
- Ultra-compact size and lightweight construction (110g net weight)
- Advanced three-axis servo stabilization system
- Integrated AI image processing capabilities
- Day/night operation with dual-light imaging
- Automatic target recognition and tracking
- Vertical downward viewing capability
Technical Specifications
| Model | UND070S/070A (Miniature Three-axis dual-light image stabilization pod) |
|---|---|
| Visible Light Camera | 3840x2160 resolution, 13 million pixels |
| Visible Light FOV/Focal Length | 70.4°x39.6°/3.5mm |
| Thermal Imager | 384x288/640x512 resolution, 9.1mm focal length, 12μm |
| Thermal FOV | 290°x21.7°/48.3°x38.6° |
| Control Interface | UART, UDP, SBUS |
| Video Output | 100-megabit network, HDMI |
| Storage | Supports ≤128G Micro SD card |
| Power Requirements | 10.8V~15V |
| Dimensions | 50mm × 57mm × 62mm |
Applications
This advanced imaging pod is ideal for:
- Police and security operations
- Power line and infrastructure inspection
- Search and rescue missions
- Firefighting and disaster response
- Accident scene investigation
- Industrial inspection and surveillance
