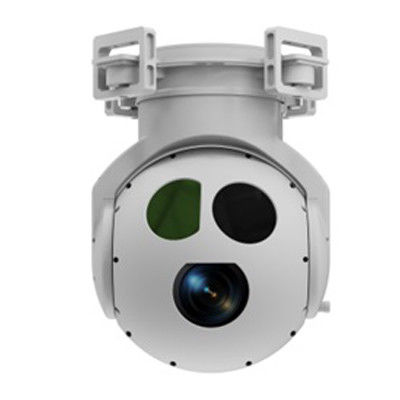

UND-190TA Two-axis Three-light UAV Photoelectric Pod
Product Overview
The UND-190TA is a medium-sized two-axis electro-optic pod designed for UAV applications. With a compact design weighing between 2-20kg, it integrates multiple payloads including thermal imaging, visible light cameras, and laser systems with advanced stabilization and AI processing capabilities.
Key Features
- Compact & Lightweight: Superior range-to-size ratio for medium UAV platforms
- Multi-Sensor Integration: Combines thermal imaging, visible light camera, and laser rangefinder/photometer
- Advanced Stabilization: Two-axis servo stabilization platform for clear imaging
- AI Processing: Automatic target recognition and tracking capabilities
- Modular Design: Flexible payload configurations to meet mission requirements
Applications
Ideal for reconnaissance, law enforcement, power line inspection, emergency response, firefighting, and accident investigation scenarios.
Technical Specifications
| Model | UND190TA (Two-axis three-optical pod) |
|---|---|
| Visible Light Camera | 2MP, 30x optical zoom, 60x hybrid zoom |
| Visible Light FOV/Focal Length | 63.7°x35.8°~2.3°x1.3°/4.3mm~129mm |
| Thermal Imager | 640x512 resolution, 75mm focal length, 12μm |
| Thermal FOV | 5.9°x4.7° |
| Laser Rangefinder | 20-6000m range |
| Control Interface | RS422, UDP |
| Video Output | 100Mbps network |
| Storage | ≤128G MicroSD card |
| Power Requirements | 20-32V |
| Weight | 4.8KG (4kg option available) |
| Dimensions | 190mm x 200mm x 274mm |
| Operational Features | Day/night operation, AI recognition, automatic tracking, flight control integration, target positioning |
